Запчасти Case 350 (104[1]) - PRE - HEATER (06) - ELECTRICAL SYSTEMS

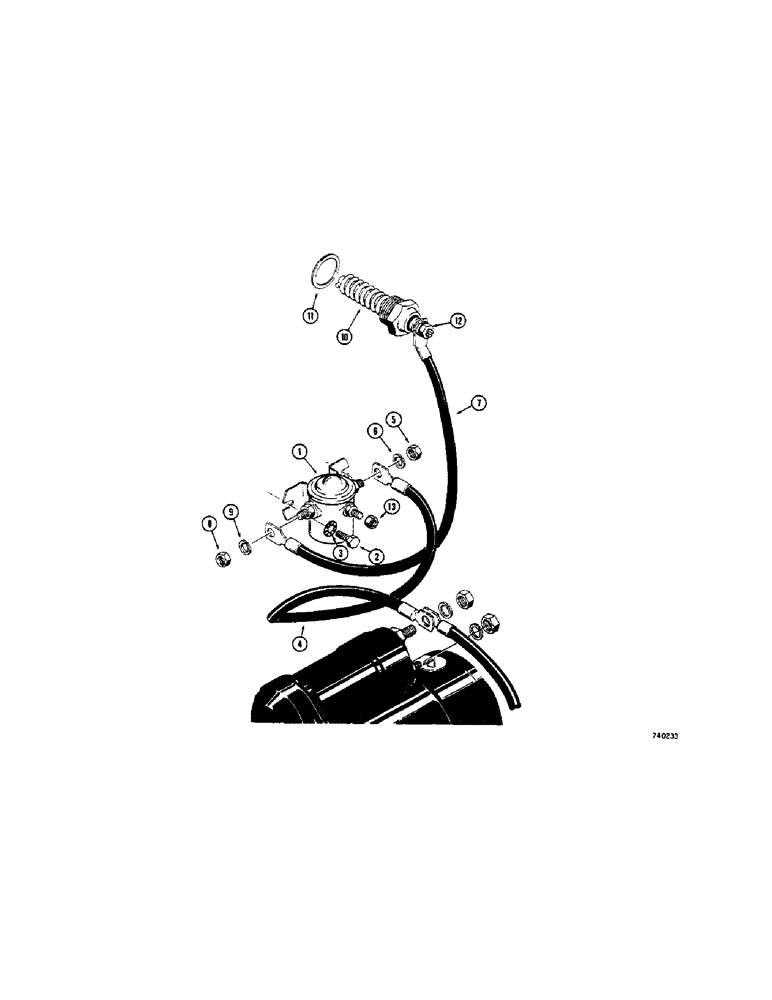

Схема запчастей Case 350 - (104[1]) - PRE - HEATER (06) - ELECTRICAL SYSTEMS
10
7
1
6
8
9
5
2
11
13
4
12
3

Артикул

Название

Примечание

Количество

1

A39079

SOLENOID

- manifold

1шт.

2

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

3

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

2шт.

4

R29755

CABLE PULLING GRIP

CABLE -, Serial Range: solenoid-starter

1шт.

5

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

7

A21483

CABLE

-, Serial Range: heater-solenoid

1шт.

8

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

10

A37775

HEATER

- manifold, Includes: Ref. 11 and 12

1шт.

11

A20916

MANIFOLD GASKET

GASKET - heater plug

1шт.

12

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

13

193-1000

NUT,Keps, w/LW,#10-32

- hex, lock, no. 10 - 32 NF, plated

1шт.

Выбрано товаров: 13
