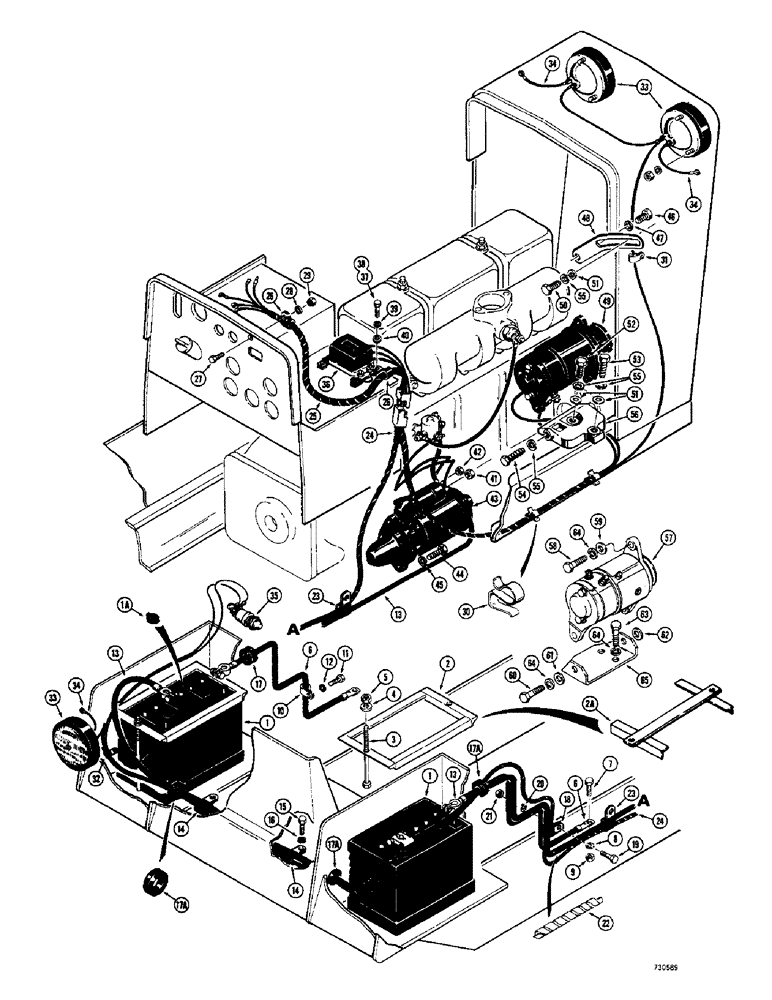

Запчасти Case 350 (098) - ELECTRICAL SYSTEM, MODELS WITH GENERATOR (06) - ELECTRICAL SYSTEMS

1

D44175

DRY BATTERY

BATTERY - dry charge, 12 volt, service replacement

2шт.

D44175 battery has standard caps which are to be replaced with nonspill caps from old battery, if used, or order A60553 caps.

1шт.

1a

A60553

CAP

CAP - battery, nonspill

6шт.

2

D32227

SPARE PART BRACKET - battery hold down, before sn 3052701, Serial Range: -3052701

2шт.

2a

R26374

BATTERY BOX

BRACKET - battery hold down, sn. 3052701 and after, Start Serial: 3052701

2шт.

3

15-5148

BOLT

BOLT - hex, 5/16" - 18 NC x 9-1/4", D32227 bracket

4шт.

3

15-4152

BOLT - hex, 1/4" - 20 NC x 9-1/2", R26374 bracket

4шт.

4

195-21

WASHER,5/16"

WASHER - flat, 5/16"

4шт.

4

195-18

WASHER,1/4"

WASHER - flat, 1/4"

4шт.

5

131-650

NUT,1/4"-20, GB

NUT - hex, self lock, 1/4" - 20 NC

4шт.

5

131-351

LOCK NUT,5/16"-18, GA

NUT - hex, self lock, 5/16" - 18 NC

4шт.

6

R40378

CABLE

CABLE - battery ground, negative, 20" (508 MM) long

2шт.

7

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

1шт.

8

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

9

25-106

NUT,3/8"-16, G5

NUT - hex, 3/8" - 16 NC

1шт.

10

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

CLAMP - cable, drawbar and mechanical angling dozer models only

1шт.

11

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

12

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

1шт.

13

R43768

CABLE

CABLE - battery, interconnecting

1шт.

14

D47783

CLAMP

CLAMP - battery cable, rear

2шт.

15

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

17

49562

GROMMET,11/16" ID x 1" Groove Dia

GROMMET - rubber

1шт.

17a

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

GROMMET - rubber

3шт.

18

D47783

CLAMP

CLAMP - battery cable

1шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

20

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

21

25-106

NUT,3/8"-16, G5

NUT - hex, 3/8" - 16 NC

1шт.

22

R12586

TAPE

WRAP - positive battery cable

1шт.

23

D34980

CLAMP

CLAMP - positive battery cable at frame

2шт.

24

D49065

HARNESS

HARNESS - main wiring

1шт.

25

D49068

HARNESS

SPARE PART HARNESS - instrument panel

1шт.

26

49838

CLAMP

CLAMP - harness

2шт.

27

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

29

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

1шт.

30

F43611

CLIP

CLIP - harness, front frame

2шт.

31

A26814

SPARE PART CLAMP - harness, at radiator shroud

1шт.

32

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

CLAMP - taillight wire

1шт.

33

REF

INSTRUCTION

LIGHT ASSEMBLY - complete, see figure 104 for lights

3шт.

34

A11768

ELECTRICAL WIRE

WIRE WIRE - ground

3шт.

35

D34924

SWITCH

SWITCH - starter, push button

1шт.

36

A35233

REGULATOR

REGULATOR - voltage, D27034 generator

1шт.

36

A23193

REGULATOR

REGULATOR - voltage, D34009 generator

1шт.

37

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

38

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

BOLT - hex, 5/16" - 18 NC x 1-1/4"

2шт.

39

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

4шт.

40

195-21

WASHER,5/16"

WASHER - flat, 5/16"

2шт.

41

87016560

JAM NUT,Jam, 3/8"-16, G5

NUT, Jam, 3/8"-16, G5

1шт.

42

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

NUT - hex, lock, no. 8-32 NC, plated

1шт.

43

D45731

X

MOTOR - Delco no. 1108688, original equipment, parts list figures 86 and 88, order R29870 for service replacement

1шт.

43

R29870

STARTING MOTOR

MOTOR - Delco no. 1109149, service replacement, parts list figures 82 and 84

1шт.

43

R39341

STARTING MOTOR

MOTOR - Nippondenso H5-02000-277, service replacement, parts list figure 80

1шт.

43

104451A2GV

STARTER MOTOR

Value, 12V, 2.5KW

1шт.

43

104451A2R

REMAN-STARTER

Remanufactured STARTER 12 volt, 2.5KW

1шт.

43

104451A1C

CORE-STARTER

Return Part Number, STARTER 12 volt, 2.5KW

1шт.

44

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, , If used Hex, 3/8"-16 x 2", G5

3шт.

44

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, , If used Hex, 3/8"-16 x 2 1/4", G5

3шт.

45

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

46

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

47

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

48

A139258

STRAP

STRAP - generator mounting

1шт.

49

D27034

GENERATOR

GENERATOR - complete, parts list figure 70

1шт.

50

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

BOLT - hex, 5/16" - 18 NC x 1-3/4"

1шт.

51

195-21

WASHER,5/16"

WASHER - flat, 5/16"

3шт.

52

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT - hex, 5/16"-18 NC x 1-1/2"

1шт.

53

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

54

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

2шт.

55

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

5шт.

56

A38746

BRACKET

BRACKET - D27034 generator mounting

1шт.

57

D34009

GENERATOR

GENERATOR - complete, optional, parts list figure 76

1шт.

58

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

BOLT, " Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

59

95-5

WASHER,3/8" x 7/8" x .083"

WASHER - flat, 5/16"

1шт.

60

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

61

195-2031

WASHER

WASHER - flat, 3/8"

1шт.

62

D46947

SPARE PART WASHER - special

1шт.

63

113-125

X

BOLT - hex, 5/16" - 18 NC x 3/4"

2шт.

64

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

5шт.

65

D34012

BRACKET

BRACKET - D34009 generator mounting

1шт.
