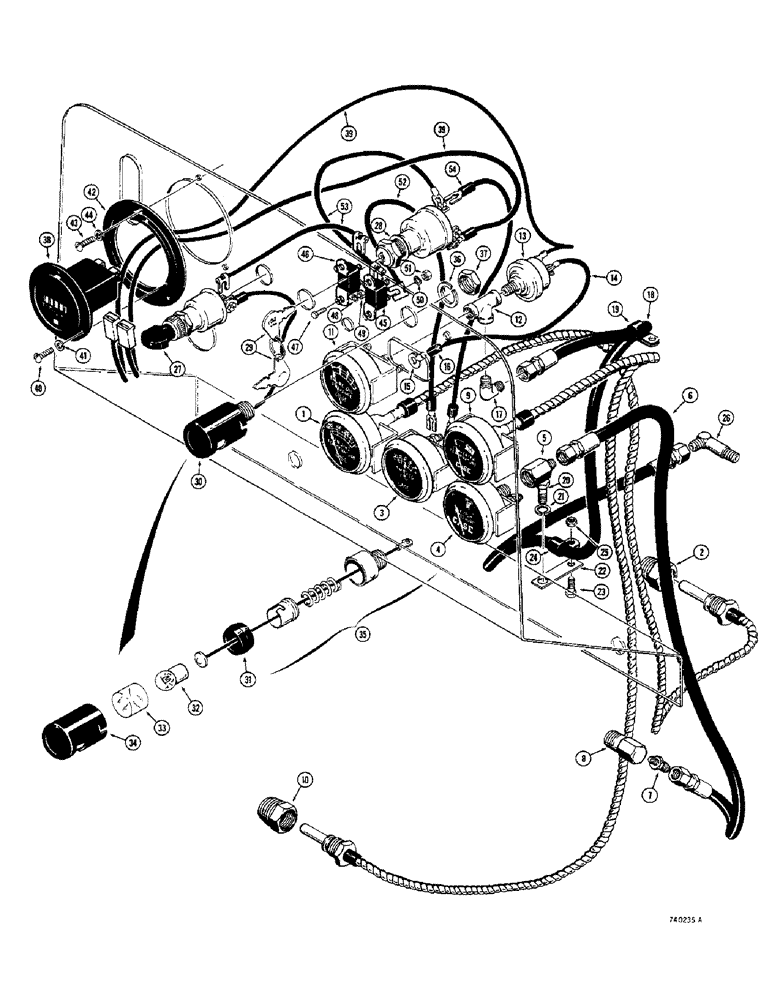

Запчасти Case 350 (092) - INSTRUMENT PANEL, MODELS WITH ALTERNATOR (06) - ELECTRICAL SYSTEMS

1

10838

ELECTRICAL GAUGE

GAUGE - water temperature, Includes: Ref. 2

1шт.

2

R21496

ADAPTER

FITTING - special

1шт.

3

R18748

AMMETER

GAUGE - ammeter

1шт.

4

G45257

GAUGE ASSY.

GAUGE - shuttle oil pressure, before tractor sn 3065737

1шт.

4

R42368

GAUGE ASSY.

GAUGE - shuttle oil pressure, tractor sn 3065737 and after

1шт.

5

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

FITTING - straight, male and female

1шт.

6

D95116

HOSE

- shuttle, oil pressure, 44" (1118 MM)

1шт.

7

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

FITTING - straight, male

1шт.

8

D49080

ELBOW UNION

FITTING - special, reducing

1шт.

9

A21381

GAUGE ASSY.

GAUGE - temperature, converter, Includes: Ref. 10

1шт.

10

R21496

ADAPTER

FITTING - special

1шт.

11

D22853

GAUGE

- oil pressure, engine

1шт.

12

221-421

TEE,1/8" NPT

FITTING - tee, 1/8" NPT

1шт.

13

D28798

SWITCH

- oil pressure, Includes: Ref. 14

1шт.

14

D28797

ELECTRICAL WIRE

WIRE - switch

1шт.

15

223-50

TERMINAL CONNECTOR,14 - 16

TERMINAL - wire, eyelet type

1шт.

16

223-83

SLEEVE

- terminal

1шт.

17

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, male

1шт.

18

D95114

HOSE

- engine, oil pressure, 39" (991 MM) long

1шт.

19

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- hose, if used

1шт.

20

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

21

92-8

LOCK WASHER,1/2"

1шт.

22

D48439

BRACKET - hose clamp mounting, if used

1шт.

23

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 3/8" - 13 NC x 3/4"

2шт.

24

49836

CLAMP

- hose

2шт.

25

25-106

NUT,3/8"-16, G5

- hex, lock, 3/8" - 16 NC

2шт.

26

218-1066

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF, LG

FITTING - 90 degree, male

1шт.

27

D35065

SWITCH

- light

1шт.

28

D35092

SWITCH

- electrical, key

1шт.

29

D36822

KEY

- switch, set of two

1шт.

30

D33212

INTERIOR LIGHT

LIGHT ASSEMBLY - instrument panel, Includes: Ref. 31 - 35

1шт.

31

NSS

NOT SOLD SEPARAT

MOUNT - rubber

1шт.

32

71421

BULB,R5W, 12V, 5W

- no. 61

1шт.

33

R22232

SIGHTGLASS

LENS - instrument panel light

1шт.

34

R22237

COVER

- instrument panel light

1шт.

35

NSS

NOT SOLD SEPARAT

BASE ASSEMBLY - instrument panel light

1шт.

36

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

36

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

1шт.

37

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex, lock, 5/8" - 18 NF

1шт.

38

R24646

ELECTRICAL GAUGE

HOURMETER - instrument panel

1шт.

39

D36099

ELECTRICAL WIRE

WIRE - hourmeter, 9" (229 MM) long

2шт.

40

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- machine, no. 6 - 32 NC x 1/2", plated

6шт.

41

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER - lock, #6

6шт.

42

D35079

DAMPER

DAMPENER - vibration

1шт.

43

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- machine, no. 6 - 32 NC x 1/2", plated

3шт.

44

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER - lock, #6

3шт.

45

A22877

BREAKER,40A

CIRCUIT BREAKER - 40 amp

1шт.

46

D37203

BREAKER

CIRCUIT BREAKER - 15 amp

1шт.

47

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- machine, no. 6 - 32 NC x 1/2", plated

4шт.

48

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER - lock, #6

4шт.

49

129-15

NUT,#6-32

4шт.

50

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

4шт.

51

129-37

NUT,#10-32

WIRE - circuit breaker to ammeter

1шт.

52

G44017

ELECTRICAL WIRE

WIRE - circuit, Serial Range: breaker-ammeter

1шт.

53

A11768

ELECTRICAL WIRE

WIRE - circuit breaker to light switch and ignition switch

2шт.

54

D49074

WIRE - ammeter to ignition switch

1шт.
