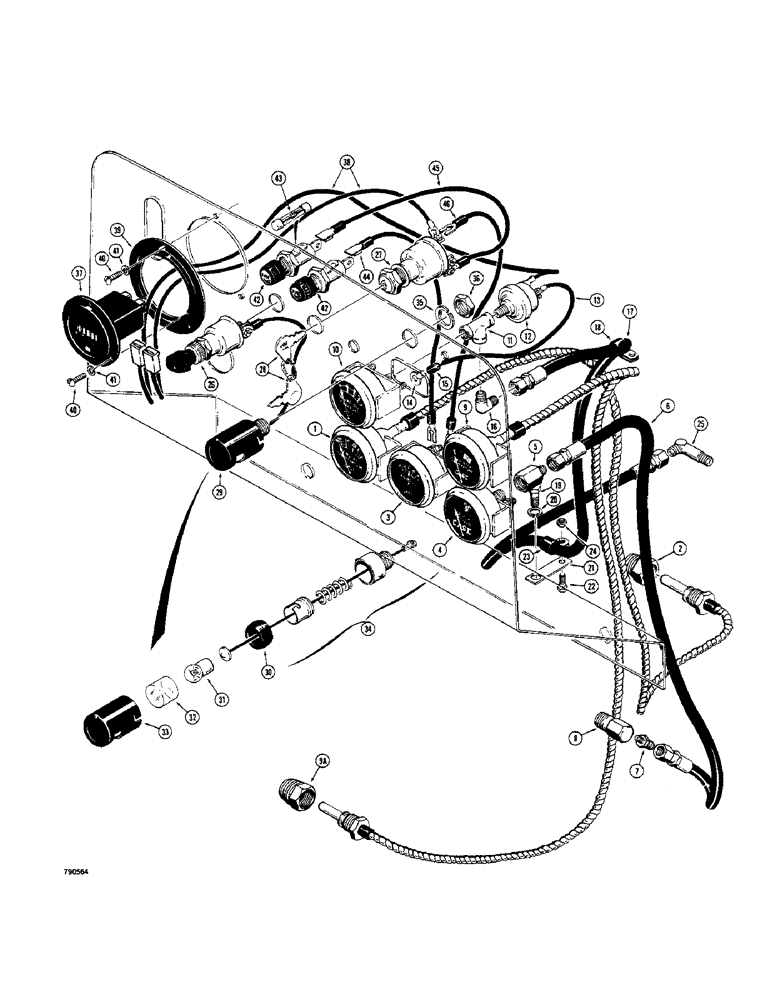

Запчасти Case 350 (090) - INSTRUMENT PANEL, MODELS WITH GENERATOR (06) - ELECTRICAL SYSTEMS

1

10838

ELECTRICAL GAUGE

GAUGE - water temperature, Includes: Ref. 2

1шт.

2

R21496

ADAPTER

FITTING - special

1шт.

3

R18748

AMMETER

GAUGE - ammeter

1шт.

4

G45257

GAUGE ASSY.

GAUGE - oil pressure, shuttle

1шт.

5

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

FITTING - straight

1шт.

6

D95116

HOSE

- shuttle, oil pressure 44" (1118 MM)

1шт.

7

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

FITTING - special, reducing

1шт.

8

D49080

ELBOW UNION

ELBOW - special, reducing

1шт.

9

A21381

GAUGE ASSY.

GAUGE - temperature, converter, Includes: Ref. 9A

1шт.

9a

R21496

ADAPTER

FITTING - special

1шт.

10

D22853

GAUGE

-oil pressure, engine

1шт.

11

221-421

TEE,1/8" NPT

FITTING - tee, 1/8" NPT

1шт.

12

D28798

SWITCH

- oil pressure, Includes: Ref. 13

1шт.

13

D28797

ELECTRICAL WIRE

WIRE - oil pressure switch

1шт.

14

223-50

TERMINAL CONNECTOR,14 - 16

TERMINAL - wire

1шт.

15

223-83

SLEEVE

- terminal

1шт.

16

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, male

1шт.

17

D95114

HOSE

- engine, oil pressure 39" (991 MM)

1шт.

18

NLS

NO LONGER SERVICED

- hose, if used

1шт.

19

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

20

92-8

LOCK WASHER,1/2"

1-2шт.

21

D48439

BRACKET - hose clamp mounting, if used

1шт.

22

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 3/8" - 13 NC x 3/4"

1-2шт.

23

49836

CLAMP

- hose

1-2шт.

24

25-106

NUT,3/8"-16, G5

- hex, lock, 3/8" - 16 NC

2шт.

25

218-1066

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF, LG

FITTING - 90 degree, male

1шт.

26

D35065

SWITCH

- light

1шт.

27

D35092

SWITCH

- electrical, key

1шт.

28

D36822

KEY

- switch, set of two

1шт.

29

D33212

INTERIOR LIGHT

LIGHT ASSEMBLY - instrument panel, Includes: Ref. 30 - 34

1шт.

30

NSS

NOT SOLD SEPARAT

MOUNT - rubber

1шт.

31

71421

BULB,R5W, 12V, 5W

- no. 61

1шт.

32

R22232

SIGHTGLASS

LENS - instrument panel light

1шт.

33

R22237

COVER

- instrument panel light

1шт.

34

NSS

NOT SOLD SEPARAT

BASE ASSEMBLY - instrument panel light

1шт.

35

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

35

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

1шт.

36

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex, lock, 5/8" - 18 NF

1шт.

37

R24646

ELECTRICAL GAUGE

HOURMETER - instrument panel

1шт.

38

D36099

ELECTRICAL WIRE

WIRE - hourmeter, 9" (229 MM) long

2шт.

39

D35079

DAMPER

DAMPENER - vibration

1шт.

40

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- machine, no. 6 - 32 NC x 1/2", plated

6шт.

41

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER - lock, #6

6шт.

42

A22874

HOLDER

- fuse, Includes: Ref. 43

2шт.

43

223-25

FUSE,25 Amp, Type 3AG

- A.G.C. 25 amp

1шт.

44

D49075

WIRE - jumper, fuse, Serial Range: holder-ammeter

1шт.

45

D49076

WIRE - jumper, fuse, Serial Range: holder-switch

1шт.

46

D49074

WIRE - jumper, Serial Range: ammeter-switch

1шт.
