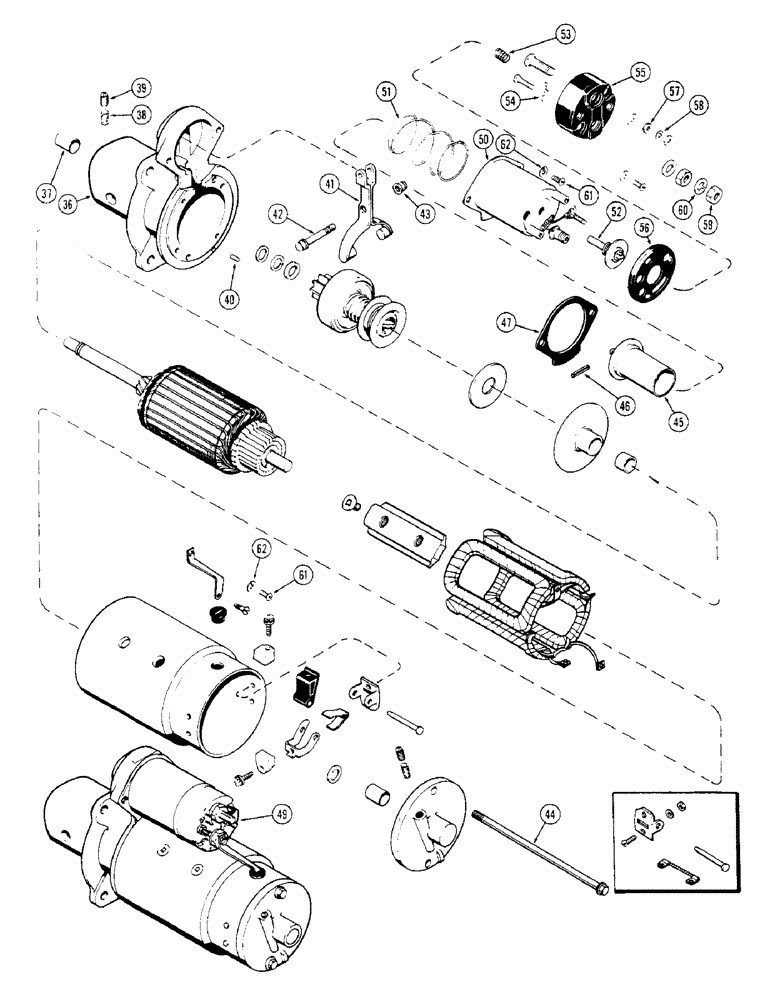

Запчасти Case 350 (088) - D45731 STARTER, WITH 9 TOOTH DRIVE PINION (06) - ELECTRICAL SYSTEMS

D45731

X

STARTER ASSEMBLY - Includes: Ref. 36 - 62 and 2 - 35 on figure 86

1шт.

36

A40226

FRAME

HOUSING ASSEMBLY - drive end, Includes: Ref. 37 - 39

1шт.

37

A25387

BEARING

BUSHING - drive housing (15/32 x 5/8 x 13/16")

1шт.

38

R15023

WICK

- oiler

1шт.

39

221-1041

PLUG

- oil wick hole (1/8" PT slotted head)

1шт.

40

R15041

PIN - locating, drive housing (3/16 x 5/16")

1шт.

41

A40220

LEVER

- drive shift

1шт.

42

A40520

BOLT

PIVOT - shift lever

1шт.

43

131-4

LOCK NUT,5/16"-18, GB

NUT - pivot (5/16" NC hex)

1шт.

44

A25552

BOLT

BOLT - thru

2шт.

45

A40218

PLUNGER

- solenoid

1шт.

48

A42126

GASKET

- solenoid to drive housing

1шт.

49

G44891

SOLENOID

ASSEMBLY - Includes: Ref. 50 - 60

1шт.

See Delco-Remy dealers for parts illustrated but not listed.

1шт.

50

NSS

NOT SOLD SEPARAT

CASE ASSEMBLY

1шт.

51

A40221

SPRING

- plunger return

1шт.

52

A42061

SWITCH

CONTACT ASSEMBLY

1шт.

53

A42059

SPRING

- contact return

1шт.

54

A42060

HALF BLADE

BLADE - contact

1шт.

55

NSS

NOT SOLD SEPARAT

COVER - solenoid contact and terminals

1шт.

56

NSS

NOT SOLD SEPARAT

GASKET -, Serial Range: cover-solenoid

1шт.

57

129-16

NUT,#8-32

2шт.

58

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

WASHER - lock, #8

2шт.

59

87016560

JAM NUT,Jam, 3/8"-16, G5

Terminal Jam, 3/8"-16, G5

2шт.

60

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

61

A42023

SCREW,#10 - 32 x 1/2"

- solenoid and connector (1/4 x 1/2" NC round head)

3шт.

62

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.
