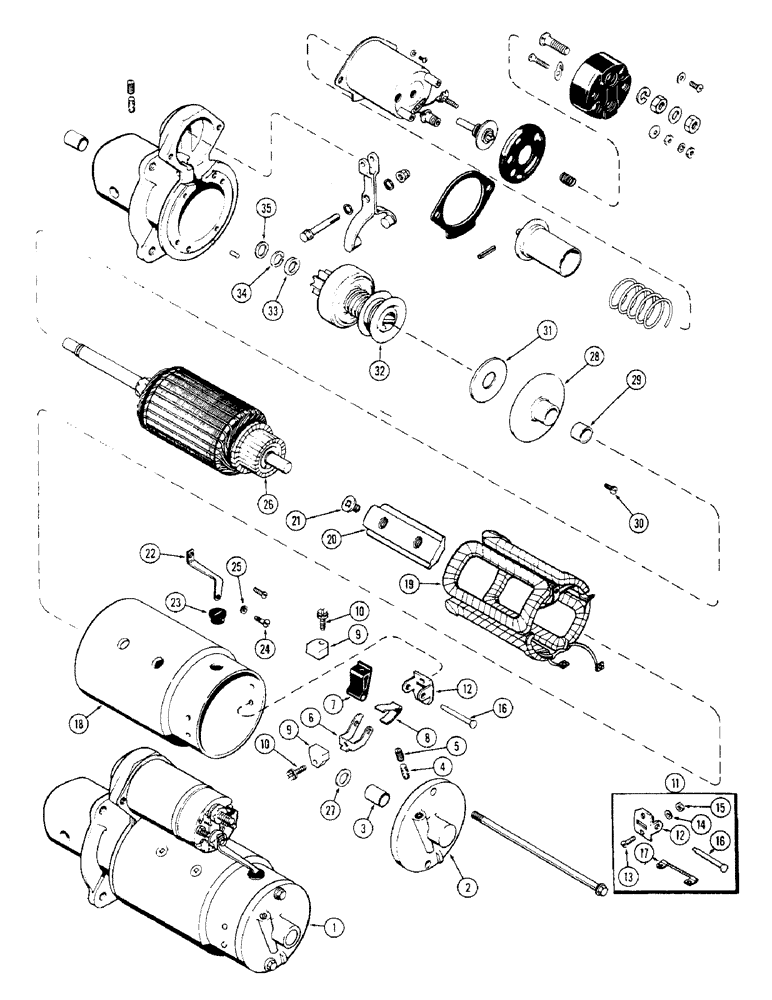

Запчасти Case 350 (086) - D45731 STARTER, WITH 9 TOOTH DRIVE PINION (06) - ELECTRICAL SYSTEMS

1

D45731

X

STARTER ASSEMBLY (Delco #1108688) (Replaces D39988) (Order R29870), Includes: Ref. 2 - 35 and 36 - 62 on figure 88

1шт.

1

104202A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104202A1C

CORE-STARTER

Return Part Number

1шт.

2

A25304

FRAME

FRAME ASSEMBLY - commutator end, Includes: Ref. 3 - 5

1шт.

3

A45152

BUSHING

BUSHING (9/16 x 11/16 x 25/32") (Replaces R15020)

2шт.

4

A41979

WICK

WICK - oiler

1шт.

5

221-1041

PLUG

PLUG - oil wick hole (1/8" PT slotted head)

1шт.

6

A40217

HOLDER

HOLDER - brush (Grounded)

2шт.

7

R15027

HOLDER

HOLDER - brush (Insulated)

2шт.

8

A25359

SPRING

SPRING - brush pressure

2шт.

9

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

10

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush (#8-32 x 13/16" slotted head)

4шт.

11

A25379

KIT

SUPPORT KIT - brush holder, Includes: Ref. 12 - 17

2шт.

12

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

13

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - support to frame (#10-24 x 1/2" round head)

2шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

15

129-17

NUT,Hex, #10 - 24

NUT - hex #10-24

2шт.

16

R15035

PIN

PIN - brush holder

1шт.

17

A42494

ELECTRICAL WIRE

WIRE LEAD - brush ground

1шт.

18

NSS

NOT SOLD SEPARAT

FRAME - starter body

1шт.

19

A25548

COIL

COIL ASSEMBLY - field

1шт.

20

A25391

SHOE

SHOE - pole

4шт.

21

74-612

SCREW,3/8" - 24 x 3/4"

SCREW - pole shoes (3/8 x 5/8" NF flat head)

8шт.

22

A40225

CONNECTOR, ELEC

CONNECTOR CONNECTOR -, Serial Range: field-solenoid

1шт.

23

A41980

GROMMET

GROMMET - connector insulating (In frame)

1шт.

24

172-221

SCREW - connector to coil (#10-32 x 7/16" round head)

1шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

26

A25547

ARMATURE

ARMATURE

1шт.

27

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - brake commutator end

1шт.

28

A40215

PLATE ASSY.

PLATE ASSEMBLY - center bearing, Includes: Ref. 29

1шт.

29

R15038

BUSHING

BUSHING - center bearing (3/4 x 13/16 x 23/32")

1шт.

30

A41959

SCREW,#10 - 32 x 3/8"

SCREW - center bearing to drive housing

4шт.

31

R15043

WASHER

WASHER - thrust, center bearing

1шт.

32

A45617

DRIVE

DRIVE ASSEMBLY (With 9 teeth) (Replaces A41871)

1шт.

33

R15049

COLLAR

COLLAR - drive stop

1шт.

34

R15048

RING

RING - snap, stop collar retaining

1шт.

35

A25385

WASHER

WASHER - thrust, drive end

1шт.
