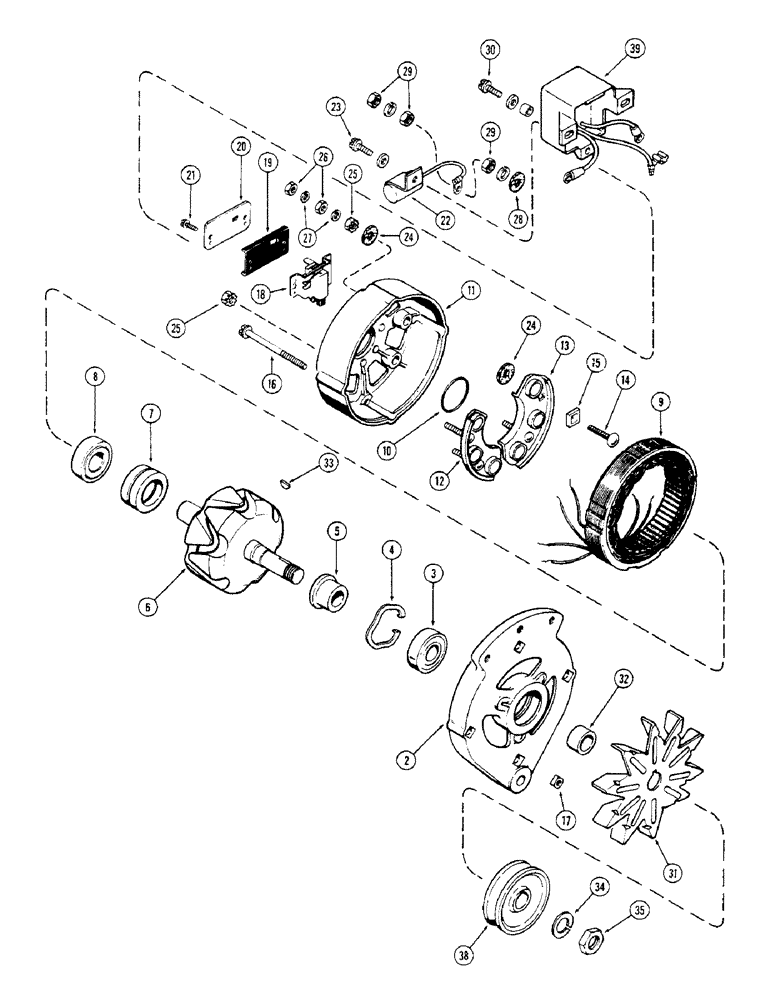

Запчасти Case 350 (078) - R30818 ALTERNATOR (06) - ELECTRICAL SYSTEMS

R30818

ALTERNATOR

ALTERNATOR ASSEMBLY (Motorola 8AR20262F), Includes: Ref. 2 - 37

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 VOLT 63 ampere

1шт.

103799A1C

CORE-ALTERNATOR

Return Number

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

103802A1R

REMAN-ALTERNATOR

Reman For New P/N R30818

1шт.

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

104398A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

104398A1C

CORE-ALTERNATOR

Return Number

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Reman For New P/N R30818

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

87297244

REMAN-ALTERNATOR

12V 61A

1шт.

87297245

CORE-ALTERNATOR

Return Number

1шт.

2

A43397

HOUSING

HOUSING - front

1шт.

3

A43404

BALL BEARING,0.562" ID x 1.5748" OD x 17"

BEARING - front (5/8 x 1-9/16 x 1/2")

1шт.

4

A43394

RETAINER

RETAINER - front bearing

1шт.

5

A41052

SLEEVE

SLEEVE - rotor

1шт.

6

A44425

IMPELLER

ROTOR

1шт.

7

A44587

KIT

RING - slip

1шт.

8

A43403

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING - rear (3/8 x 1-3/16 x 3/8")

1шт.

9

A44764

STATOR

STATOR

1шт.

10

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

RETAINER - rear bearing (O-ring) (1-1/8 x 1-3/8 x 1/8")

1шт.

11

A44765

SPARE PART HOUSING - rear

1шт.

12

A47615

DIODE

DIODE ASSEMBLY - negative (With 2 plate studs)

1шт.

13

A47607

DIODE

DIODE ASSEMBLY - positive (With 1 plate stud)

1шт.

14

A41436

SCREW

STUD - positive plate (#10-24 x 1-1/2" carriage)

1шт.

15

A41041

INSULATOR

INSULATOR - positive plate stud

1шт.

16

A44423

BOLT

STUD - alternator thru (#10-32 x 2-7/8" special head)

4шт.

17

129-77

NUT,Sq, #10-32

NUT - thru bolt (#10-32 square)

4шт.

18

A43401

BRUSH ASSY.

BRUSH AND HOLDER ASSEMBLY

1шт.

19

A44769

GUARD

SHIELD - dirt

1шт.

20

A43399

COVER

COVER - brush holder

1шт.

21

182-519

SCREW,Sl Pan Hd, #4 - 40 x 3/16"

SCREW - cover (#4-40 x 3/16" slotted head, brass)

2шт.

22

A44770

TANK

CAPACITOR (Condenser)

1шт.

23

A44787

SPARE PART SCREW - capacitor (#10-32 x 3/8" hex slotted head)

1шт.

24

A44763

WASHER

WASHER - insulating (3/16 x 3/4 x 1/16")

2шт.

25

A41060

LOCK NUT

NUT - lock, with Shakeproof washer (10-24 hex)

2шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

NUT, 1/4"-20, G5, Diode terminals

2шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

28

A41038

WASHER

WASHER - insulating (3/16 x 3/4 x 1/16")

2шт.

29

129-17

NUT,Hex, #10 - 24

NUT - drive terminals ( hex) #10-24

3шт.

30

187-1090

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - regulator mounting (#10-24 x 5/8" slotted hex head)

3шт.

31

A43409

FAN

FAN

1шт.

32

A43405

SPACER

SPACER - fan (5/8 x 7/8 x 7/16")

1шт.

33

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Pulley #5, 1/8" x 5/8", HT

1шт.

34

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Pulley 5/8"

1шт.

35

A41035

NUT

NUT - pulley (5/8" NF hex)

1шт.

38

A44678

PULLEY

PULLEY - alternator

1шт.

39

A44772

REGULATOR

REGULATOR ASSEMBLY - voltage

1шт.
