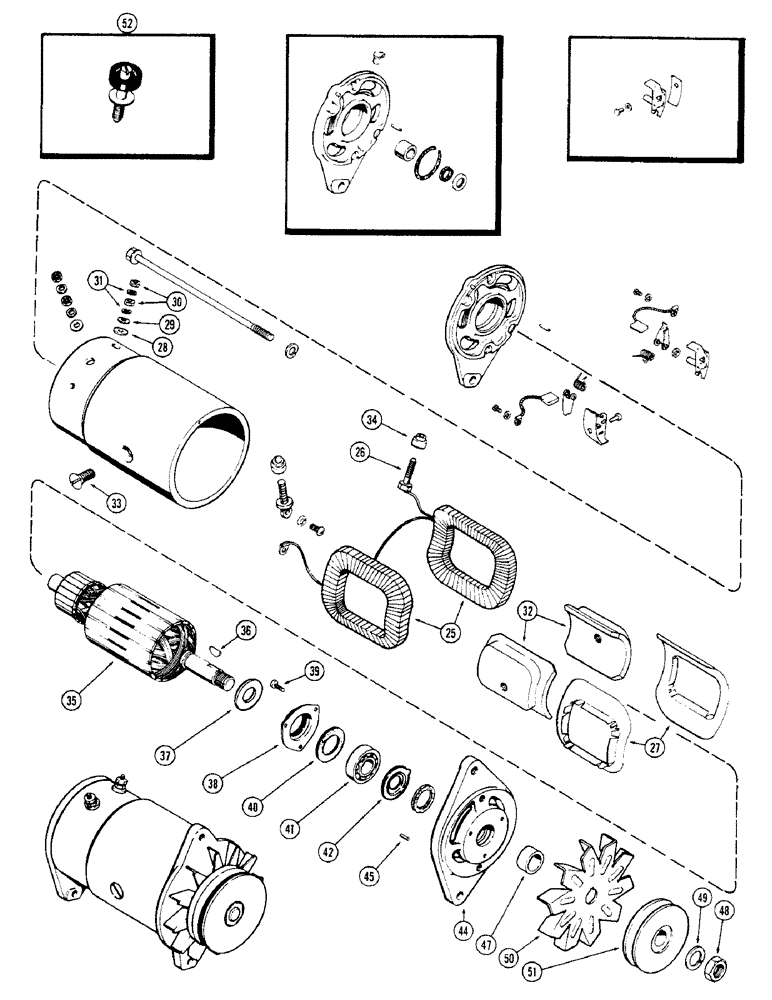

Запчасти Case 350 (074) - R4439 GENERATOR, VENTILATED TYPE, DELCO-REMY NO. 1947579 (06) - ELECTRICAL SYSTEMS

R4439

KIT

GENERATOR ASSEMBLY, Includes: Ref. 25 - 50 and 2 - 24 on figure 72

1шт.

25

R16149

COIL ASSY.

COIL ASSEMBLY - field, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

STUD - field terminal (Order ref. 52)

1шт.

27

R16152

INSULATOR

INSULATION

2шт.

28

R16148

WASHER

- insulating, field terminal

14шт.

29

A41927

WASHER

- plain (Replaces R15079)

1шт.

30

192-17

LOCK WASHER,#12

WASHER - lock, #12

1шт.

31

129-18

NUT,#12-24

- terminal, hex #12-24

2шт.

32

A40700

SHOE - pole

2шт.

33

74-610

SCREW,3/8" - 24 x 5/8"

- pole shoes (3/8 x 5/8" NF, flat head)

2шт.

34

NSS

NOT SOLD SEPARAT

BUSHING - field terminal (Order ref. 52)

1шт.

35

A40136

ARMATURE

1шт.

36

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Pulley #5, 1/8" x 5/8", HT

1шт.

37

R15100

SPACER - retainer

1шт.

38

R15101

PLATE

RETAINER - bearing

1шт.

39

A41959

SCREW,#10 - 32 x 3/8"

- bearing retainer

3шт.

40

R16170

GASKET

- retainer

1шт.

41

G10623

BALL BEARING

BEARING - ball, drive end

1шт.

42

R16169

LARGE PLATE

RETAINER - felt washer

1шт.

43

R16188

WASHER - felt

1шт.

44

A40134

HOUSING - drive end

1шт.

45

R15041

PIN - locating, drive housing

1шт.

47

R16166

BUSHING

SPACER - fan

1шт.

48

A25546

NUT

- pulley

1шт.

49

192-116

WASHER, LOCK

WASHER - 11/16" lock

1шт.

50

A25549

PLATE

FAN - ventilating

1шт.

51

A25454

PULLEY

- drive

1шт.

52

A40702

STUD

TERMINAL ASSEMBLY - field (Includes refs 26 and 34)

1шт.
