Запчасти Case 350 (072) - R4439 GENERATOR, VENTILATED TYPE, DELCO-REMY NO. 1947579 (06) - ELECTRICAL SYSTEMS

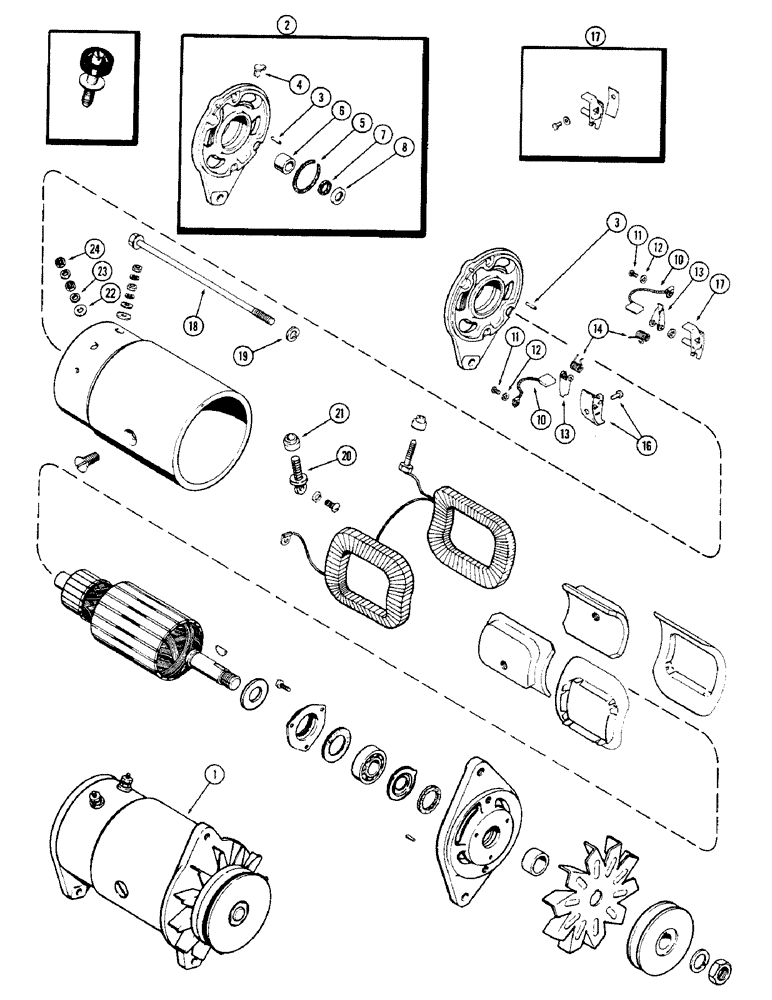

Схема запчастей Case 350 - (072) - R4439 GENERATOR, VENTILATED TYPE, DELCO-REMY NO. 1947579 (06) - ELECTRICAL SYSTEMS
3
10
8
21
22
3
18
11
17
16
13
19
13
2
12
5
17
14
6
11
1
20
7
12
23
24
4
10

Артикул

Название

Примечание

Количество

1

R4439

KIT

GENERATOR ASSEMBLY (Delco-Remy #1947579), Includes: Ref. 2 - 24 and 25 - 50 on figure 74

1шт.

1

103822A1R

REMAN-GENERATOR

Remanufactured GENERATOR - NA Only

1шт.

1

103822A1C

CORE-GENERATOR

Return number - For N.A. only

1шт.

2

A40132

SPARE PART HOUSING ASSEMBLY - commutator end, Includes: Ref. 3 - 8

1шт.

3

R15095

SPARE PART PIN - housing locating

1шт.

4

219-202

OILER

OILER

1шт.

5

A41417

WICK

WICK - oil

1шт.

6

A25459

BUSHING

BUSHING - armature shaft

1шт.

7

R16157

WASHER

WASHER - felt

1шт.

8

R16156

CUP

CUP - retainer, felt washer

1шт.

10

R16158

BRUSH

BRUSH

2шт.

11

172-223

SCREW - brush lead, #6-32 x 1/4" round head

2шт.

12

195-15

WASHER,#12

WASHER - #6 lock

2шт.

13

R15090

ARM

ARM - brush pressure

2шт.

14

R16161

VALVE SPRING

SPRING - brush

2шт.

15

R43328

SPARE PART WASHER - spacer, brush arm (Replaces R16162)

2шт.

16

A40703

NOZZLE HOLDER

HOLDER ASSEMBLY - brush (Grounded)

1шт.

17

A40704

NOZZLE HOLDER

HOLDER ASSEMBLY - brush (Insulated)

1шт.

18

A40129

BOLT

BOLT - thru

2шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

20

A40701

STUD

STUD - armature terminal

1шт.

21

R16147

BUSHING

BUSHING - insulating, terminal stud

1шт.

22

A41927

WASHER

WASHER - plain (Replaces R15079)

1шт.

23

192-17

LOCK WASHER,#12

WASHER - lock, #12

1шт.

24

129-18

NUT,#12-24

NUT - terminal, hex #12-24

1шт.

Выбрано товаров: 25
