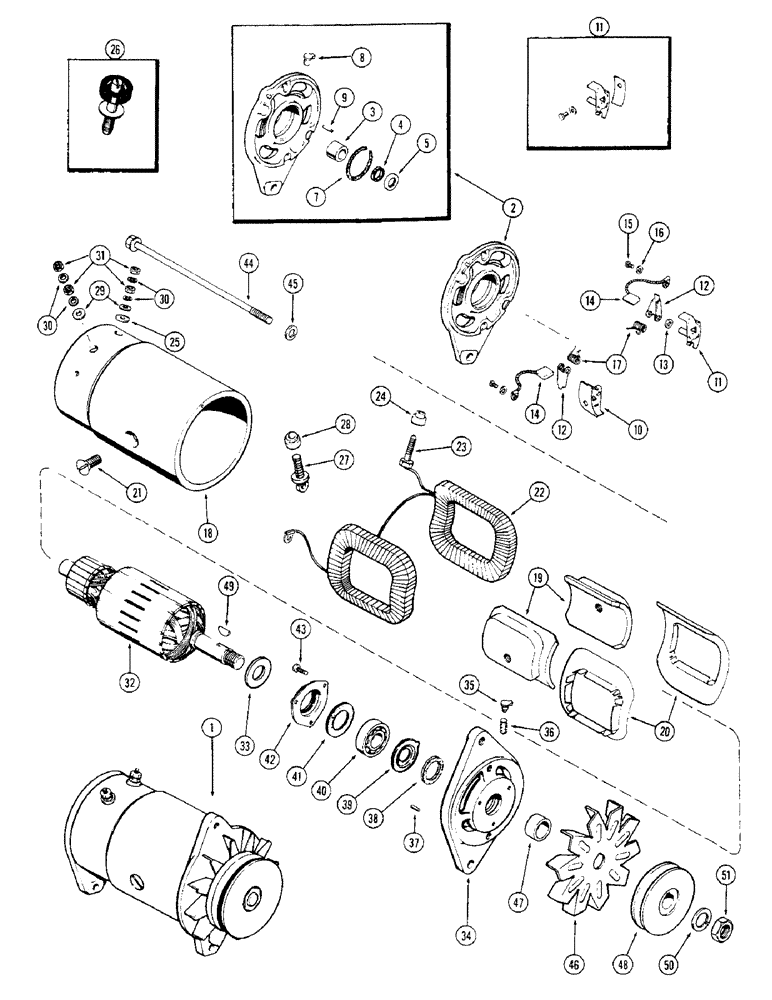

Запчасти Case 350 (070) - D27034 GENERATOR, VENTILATED TYPE, DELCO-REMY NO. 1100404 (06) - ELECTRICAL SYSTEMS

1

D27034

GENERATOR

GENERATOR ASSEMBLY (Delco #1100404) (Order R4439, See figure 72), Includes: Ref. 2 - 51

1шт.

1

104450A1R

REMAN-GENERATOR

Remanufactured Generator 12 volt 20 ampere

1шт.

1

104450A1C

CORE-GENERATOR

Return Number, 12 volt 20 ampere

1шт.

1

103822A1R

REMAN-GENERATOR

Remanufactured Generator

1шт.

1

103822A1C

CORE-GENERATOR

Return Number

1шт.

2

A40679

HOUSING

FRAME ASSEMBLY - commutator end, Includes: Ref. 3 - 9

1шт.

3

A25459

BUSHING

BUSHING - armature shaft

1шт.

4

R16157

WASHER

WASHER - felt

1шт.

5

R16156

CUP

CUP - retainer, felt washer

1шт.

7

A41417

WICK

WICK - oil

1шт.

8

219-203

OILER

OILER

1шт.

9

R15095

SPARE PART PIN - end frame locating

1шт.

10

A40703

NOZZLE HOLDER

HOLDER ASSEMBLY - brush (Grounded)

1шт.

11

A40704

NOZZLE HOLDER

HOLDER ASSEMBLY - brush (Insulated)

1шт.

12

R15090

ARM

ARM - brush pressure

2шт.

13

A43328

SPARE PART WASHER - spacer, brush arm

2шт.

14

R15088

BRUSH, COMMUTATOR

BRUSH BRUSH - main (Replaces R4286)

2шт.

15

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

SCREW - brush lead (#6 NC x 1/4" round head)

2шт.

16

195-15

WASHER,#12

WASHER - #6 lock

2шт.

17

R16161

VALVE SPRING

SPRING - brush arm tension

2шт.

18

NSS

NOT SOLD SEPARAT

FRAME - generator body

1шт.

19

A40700

SPARE PART SHOE - pole

2шт.

20

R16152

INSULATOR

INSULATION - coil

2шт.

21

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoes (3/8 x 5/8" NF flat head)

2шт.

22

R16149

COIL ASSY.

COIL ASSEMBLY - field

1шт.

23

NSS

NOT SOLD SEPARAT

STUD - terminal (Order ref. 26)

1шт.

24

NSS

NOT SOLD SEPARAT

BUSHING - insulation, field terminal (Order ref. 26)

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER - insulating, field terminal (Order ref. 26)

1шт.

26

A40702

STUD

STUD KIT - field terminal

1шт.

27

A40701

STUD

STUD - armature terminal

1шт.

28

R16147

BUSHING

BUSHING - insulating, armature terminal

1шт.

29

A41927

WASHER

WASHER - plain, terminal studs

2шт.

30

192-17

LOCK WASHER,#12

WASHER - lock, , Terminal stud #12

4шт.

31

129-18

NUT,#12-24

NUT - terminal studs (#12 NC hex)

4шт.

32

A25428

ARM ASSY.

ARMATURE

1шт.

33

R15100

SPARE PART WASHER - thrust, drive end

1шт.

34

A25442

HOUSING

FRAME ASSEMBLY - drive end, Includes: Ref. 35 and 36

1шт.

35

219-202

OILER

OILER

1шт.

36

R16165

SPARE PART WICK - oil

1шт.

37

R15041

SPARE PART PIN - dowel, drive end locating

1шт.

38

R16168

WASHER

SEAL - felt, drive end

1шт.

39

R16169

LARGE PLATE

PLATE, LARGE PLATE - felt seal and bearing retainer

1шт.

40

G10623

BALL BEARING

BEARING - drive end

1шт.

41

R16170

GASKET

GASKET - retainer plate

1шт.

42

R15101

PLATE

PLATE - bearing retainer

1шт.

43

A41959

SCREW,#10 - 32 x 3/8"

SCREW - retainer plate

3шт.

44

A40129

BOLT

BOLT - thru

2шт.

45

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

46

A25449

FAN

FAN - ventilating

1шт.

47

R16166

BUSHING

SPACER - fan and pulley

1шт.

48

A25454

PULLEY

PULLEY - drive

1шт.

49

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Pulley to shaft #5, 1/8" x 5/8", HT

1шт.

50

192-116

WASHER, LOCK

WASHER - 11/16" lock

1шт.

51

A25546

NUT

NUT -, Serial Range: pulley-shaft

1шт.
