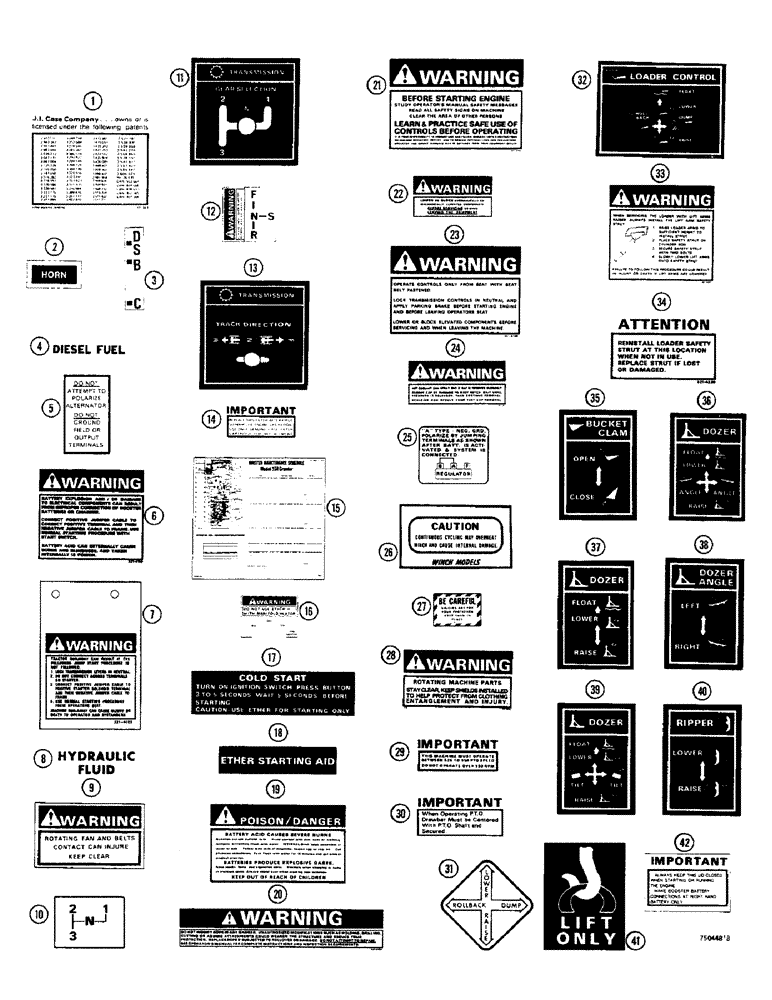

Запчасти Case 350 (434) - DECALS (05) - UPPERSTRUCTURE CHASSIS

R24003

KIT

- decal, Includes: Ref. 1 - 4, 6 - 24, 26 - 40, and 42 this figure and Ref. 1 - 4 on Figure 432

1шт.

1

321-663

DECAL

- equipment patent

1шт.

2

321-3294

DECAL

- horn

1шт.

3

321-1707

DECAL

- bucket position indicator

1шт.

4

321-230

DECAL

- diesel fuel

1шт.

5

321-1061

DECAL

- DO NOT, no longer used, not part of kit

1шт.

6

321-4190

DECAL

- warning, battery

1шт.

7

321-4189

DECAL

- warning, tractor runaway can, use 321-4667

1шт.

8

321-229

DECAL

- hydraulic fluid

1шт.

9

321-3596

DECAL

- caution, fan

2шт.

10

321-1411

DECAL

- shift pattern, use 321-4174

1шт.

11

321-4174

DECAL

- transmission, gear selection

1шт.

12

321-3037

DECAL

- warning, lock into neutral, use 321-4175 and 321-4188

1шт.

13

321-4175

DECAL

- transmission, track direction

1шт.

14

321-2101

DECAL

- oil filter

1шт.

15

321-1419

DECAL

- Master Maintenance Schedule

1шт.

16

321-3040

DECAL

- warning, do not use ether, if used

1шт.

17

321-1841

DECAL

- cold start

1шт.

18

321-2435

DECAL

- ether starting aid

1шт.

19

321-2996

DECAL

- poison/danger

2шт.

20

321-4192

DECAL

- warning, ROPS modification

1шт.

21

321-3705

DECAL

- warning, before starting engine

1шт.

22

321-3042

DECAL

- warning, lower or block, use 321-4188

1шт.

23

321-4188

DECAL

- warning, operate from seat

1шт.

24

321-3708

DECAL

- radiator pressure

1шт.

25

321-766

DECAL

- regulator, models with generator, not part of kit

1шт.

26

321-3039

DECAL

- caution, winch models

1шт.

27

321-2687

DECAL

- be careful, use 321-3710

1шт.

28

321-3710

DECAL

- warning, rotating parts

1шт.

29

321-2459

DECAL

- important, PTO speed

1шт.

30

321-2547

DECAL

- important, operating PTO

1шт.

31

321-920

DECAL

- loader control, uses 321-4171

1шт.

32

321-4171

DECAL

- loader control

1шт.

33

321-4227

DECAL

- warning, safety strut usage

2шт.

34

321-4289

DECAL

- strust storage

1шт.

35

321-4184

DECAL

- clam position, 4-in-1 bucket

1шт.

36

321-4186

DECAL

- dozer, angle, raise and lower

1шт.

37

321-4397

DECAL

- dozer, lower and raise

1шт.

38

321-4182

DECAL

- dozer angle

1шт.

39

321-4181

DECAL

- dozer - tilt, lower and raise

1шт.

40

321-4185

DECAL

- ripper control

1шт.

41

321-3587

DECAL

- lift instructions, not part of kit

4шт.

42

321-4667

DECAL

- important, always keep lid closed

1шт.
