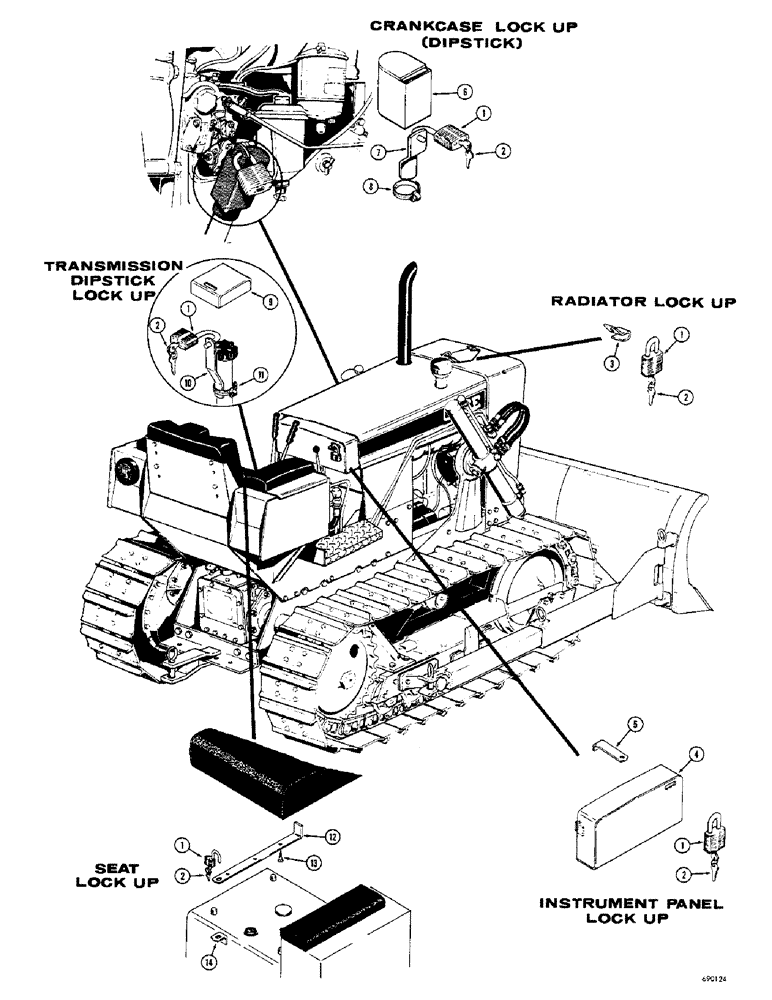

Запчасти Case 350 (428) - LOCKUP PARTS (05) - UPPERSTRUCTURE CHASSIS

1

D40678

LOCK

PADLOCK - crawler lockup, master no. X2138, order R29556, and ket

5шт.

2

D40679

KEY

- set of 2, D40678 lock, master no. X-2138, padlock

1шт.

1

R29556

LOCK

PADLOCK - crawler lockup, master no. 500, and key, Includes: Ref. 2

5шт.

2

R29555

KEY

- set of 2, padlock

1шт.

3

D41254

CLIP

- radiator lockup, dozer and drawbar models only

1шт.

3

D42128

CLIP - radiator lockup, loader models, radiator lockup

1шт.

4

D44511

GUARD - instrument panel, all models except PTO, instrument panel lockup

1шт.

5

D45389

STRAP

- D44511 guard, locking, use existing hardware, instrument panel lockup

1шт.

4

R31265

GUARD - instrument panel, PTO models, instrument panel lockup

1шт.

5

R31266

STRAP - R31265 guard locking, instrument panel lockup

1шт.

6

R42455

CAP

- dipstick lockup, engine

1шт.

7

D41253

STRAP

- locking, engine dipstick lockup

1шт.

8

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - dipstick lock, engine

1шт.

9

D44502

LOCK

CAP - transmission dipstick lockup

1шт.

10

D44505

STRAP - locking , transmission dipstick

1шт.

11

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - transmission dipstick locking

1шт.

12

D44508

ASSEMBLY

STRAP - seat locking

1шт.

13

184-69

SCREW - wood , seat lockup

3шт.

14

D44501

ANGLE - locking , seat

1шт.
