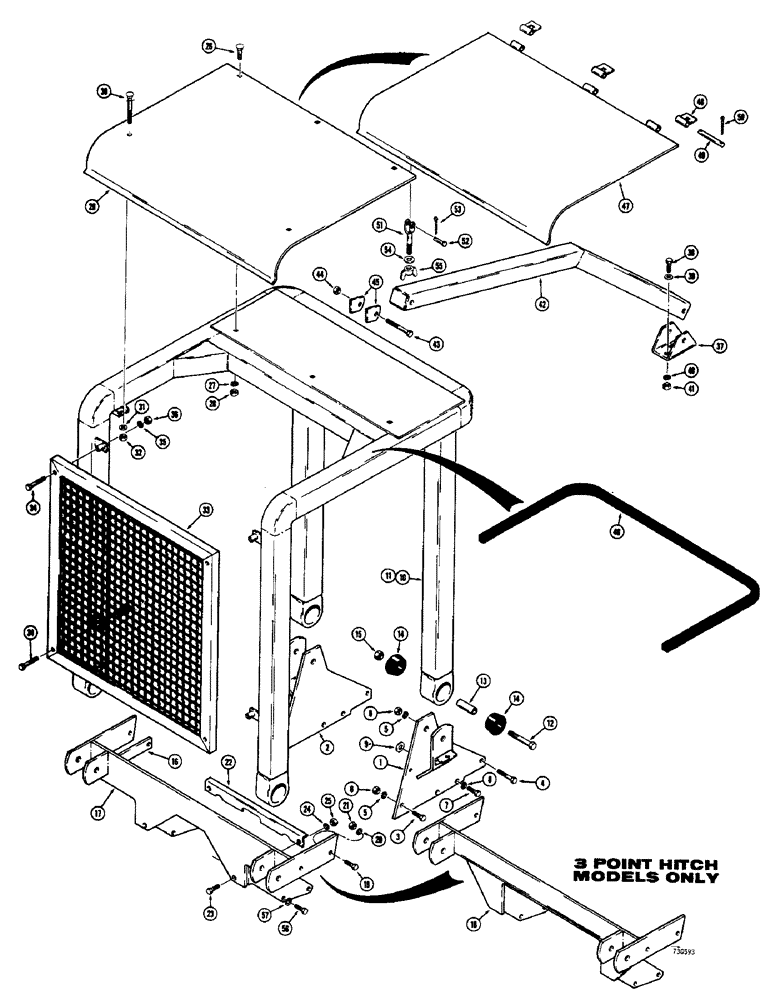

Запчасти Case 350 (422) - ROLL OVER PROTECTION STRUCTURE (05) - UPPERSTRUCTURE CHASSIS

1

F93285

BRACKET ASSEMBLY - mounting, RH, dozer and drawbar models only

1шт.

2

F93286

BRACKET ASSEMBLY - mounting, LH, dozer and drawbar models only

1шт.

3

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4", dozer and drawbar models only

2шт.

4

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5, Dozer and drawbar models only

2шт.

5

92-8

LOCK WASHER,1/2"

dozer and drawbar models only 1/2"

4шт.

6

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, dozer and drawbar models only

4шт.

7

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Dozer and drawbar models only Hex, 5/8"-11 x 1 3/4", G5, Full Thd

4шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Dozer and drawbar models only 5/8"

4шт.

9

D31957

WASHER

SPACER - washer, dozer and drawbar models only

4шт.

10

REF

INSTRUCTION

ROLL-OVER PROTECTION STRUCTURE - drawbar and dozer models, machinery item, see Figure 2 for ordering

1шт.

11

REF

INSTRUCTION

ROLL-OVER PROTECTION STRUCTURE - loader models, machinery item, see Figure 2 for ordering

1шт.

12

26-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 8

- hex, 3/4" - 10 NC x 5", grade 8, used on all models

4шт.

13

F42339

BUSHING

- mount, used on all models

4шт.

14

F42340

INSERT

- rubber, vibration dampener, used on all models

8шт.

15

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, , Used on all models 3/4"-10, GB

4шт.

16

F42338

BLOCK - mounting, back plate, used on all models

2шт.

17

F93274

BACK PLATE - mounting, all models except three-point hitch models, used on all models

1шт.

18

F93293

BACK PLATE - mounting, three-point hitch models, used on all models

1шт.

19

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4", used on all models

4шт.

20

92-8

LOCK WASHER,1/2"

used on all models 1/2"

4шт.

21

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, used on all models

4шт.

22

F42349

BAR - tie frame, used on all models

1шт.

23

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Used on all models Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used on all models 5/8"

2шт.

25

25-1010

NUT,5/8"-11, G5

Used on all models 5/8"-11, G5

2шт.

26

111-512

CARRIAGE BOLT,Short NK, 1/2"-13 x 1", G2

BOLT, CARRIAGE, Short NK, 1/2"- 13 x 1", G2, Used on all models

3шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used on all models 1/2"

3шт.

28

129-105

NUT,Hex, 1/2" - 13, Gr 5

Used on all models 1/2"-13, G5

3шт.

29

F42826

ROOF - rear, used on all models

1шт.

30

111-525

CARRIAGE BOLT,Short NK, 1/2"-13 x 6", G2

BOLT - carriage, 1/2" - 13 NC x 6", used on all models

2шт.

31

195-533

WASHER,1/2", SAE

- flat, 1/2", plated, used on all models

2шт.

32

131-70

NUT,1/2"-13, GB

NUT - hex, self lock, 1/2" - 13 NC, plated, used on all models

2шт.

33

F93290

GUARD - screen, rear, used on all models

1шт.

34

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2" - 13 NC x 2-1/4", used on all models

4шт.

36

92-8

LOCK WASHER,1/2"

used on all models 1/2"

4шт.

36

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, used on all models

4шт.

37

F42336

BRACKET

- brush guard mounting, front, used on all models

2шт.

38

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Used on all models Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

39

195-533

WASHER,1/2", SAE

- flat, 1/2", plated, used on all models

4шт.

40

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used on all models 1/2"

4шт.

41

129-105

NUT,Hex, 1/2" - 13, Gr 5

Used on all models 1/2"-13, G5

4шт.

42

F93273

GUARD - brush sweep, used on all models

2шт.

43

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Used on all models Hex, 5/8"-11 x 4 1/2", G5

4шт.

44

131-64

LOCK NUT,5/8"-11, GC

NUT - hex, self lock, 5/8" - 11 NC, plated, used on all models

4шт.

45

F42337

BRACKET - brush guard mounting, rear, used on all models, Serial Range: -3058491

4шт.

46

REF

INSTRUCTION

FOAM RUBBER - roof seal, 90" (2286 MM) long, use F42419 roll for service, used on all models

1шт.

47

F93523

ROOF - hinged, used on all models

1шт.

48

F93322

HINGE

- roof, used on all models

3шт.

49

F42316

EYEBOLT

PIN - hinge, used on all models

3шт.

50

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Used on all models 1/8" x 3/4"

6шт.

51

F50092

ROD - roof retaining, used on all models

2шт.

52

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Used on all models 3/8" x 1.060"

2шт.

53

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", used on all models

2шт.

54

195-104

WASHER,3/8"

- flat, , plated, used on all models 3/8"

2шт.

55

129-410

WING NUT,3/8"-16

NUT - winged, 3/8" - 18 NC, used on all models

2шт.

56

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Used on all models Hex, 1/2"-13 x 1 1/4", G5, Full Thd

6шт.

57

92-8

LOCK WASHER,1/2"

used on all models 1/2"

6шт.

F42419

FOAM

- bulk, 50" (1270 MM) x 1/4" (19 MM) x 1-1/2" (38 MM), used on all models

1шт.
