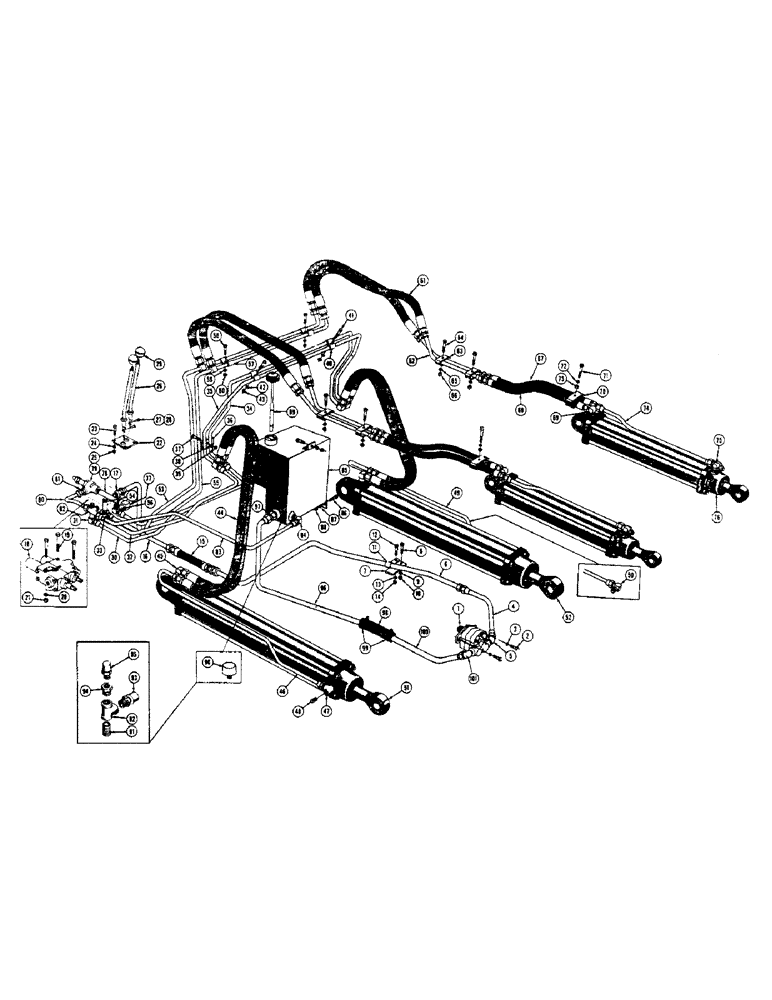

Запчасти Case 320 (112) - LOADER HYDRAULICS, (UP TO SERIAL NO. 3003851) (07) - HYDRAULIC SYSTEM

1

31615

CAP

PUMP - hydraulic, 15 G.P.M. (See figure 100 for breakdown)

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

36537

TUBE - pump to valve inlet, front section

1шт.

5

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

- male, 45 degrees (3/4" JIC x 3/4" NPT)

1шт.

6

36539

HOSE

TUBE - pump to valve inlet, front center section

1шт.

7

34259

SHIM,.007" Thk

PLATE - support, tube clamp

1шт.

8

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16 - 24 NF x 1

1шт.

9

92-5

LOCK WASHER,5/16"

1шт.

10

25-116

NUT,Hex, 3/8"-24, G5

- hex. (5/16 - 24 NF)

1шт.

11

49789

CLAMP

- tube

1шт.

12

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

14

25-104

NUT,1/4"-20, G5

1шт.

15

36541

HOSE - pump to inlet, rear center section (3/4" I.D. x 1-5/32" O.D. x 11")

1шт.

16

18943

TUBE - pump to valve inlet, rear section

1шт.

17

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 3/4" JIC x 1/2" NPT

1шт.

18

16400

VALVE - control (See figure 94 for breakdown)

1шт.

19

14-872

X,Hex, 1/2" - 20 x 4 1/2", Gr 5

HHCS - 1/2 - 20 NF x 4-1/2

3шт.

20

92-8

LOCK WASHER,1/2"

3шт.

21

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

3шт.

22

16678

PLATE - guide, valve control lever

1шт.

23

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

4шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

4шт.

26

16675

GUSSET

LEVER - control, valve

2шт.

27

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke, control lever to valve spool

2шт.

28

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

29

31375

WASHER

- control lever

2шт.

30

19228

TUBE - R.H. rear valve port to rear manifold tube

1шт.

31

218-498

ELBOW - 90 degree male, extral long (5/8" JIC x 1/2" NPT) 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

32

19227

TUBE - R.H. front valve port to front manifold tube

1шт.

33

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

1шт.

34

19225

TUBE - lift cylinder manifold, rear

1шт.

35

19226

TUBE - lift cylinder manifold, front

1шт.

36

32978

PLATE ASSY.

PLATE - clamp

1шт.

37

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16 - 24 NF x 1

1шт.

38

92-5

LOCK WASHER,5/16"

1шт.

39

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

40

17179

CLAMP - tube

2шт.

41

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16 - 24 NF x 1

2шт.

42

92-5

LOCK WASHER,5/16"

2шт.

43

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

44

19178

HOSE

- lift cylinder manifold tubes to lift cylinders (1/2" I.D. x 7/8" O.D. x 33-1/2")

4шт.

45

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT) rear lift cylinder parts

2шт.

46

19219

TUBE - hose to front cylinder port, R.H. lift cylinder

1шт.

47

33888

ELBOW - special, 90 degrees (5/8" JIC x 1/2" NPT x 1/8" NPT)

1шт.

48

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" NPT square head

1шт.

49

19220

TUBE - hose to front cylinder port, L.H. lift cylinder

1шт.

50

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

1шт.

51

31608

CYLINDER - Loader lift, hydraulic (R.H.) See figure 120 for breakdown

1шт.

52

31609

CYLINDER - Loader lift, hydraulic (L.H.) See figure 120 for breakdown

1шт.

53

19202

TUBE - bucket cylinder manifold, rear

1шт.

54

218-498

ELBOW - 90 degree male, extra long (5/8" JIC x 1/2" NPT) 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

55

19201

TUBE - bucket cylinder manifold, front

1шт.

56

34264

ELBOW - lateral, 90 degrees (5/8" JIC x 1/2" NPT)

1шт.

57

17179

CLAMP - tube

2шт.

58

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16 - 24 NF x 1

2шт.

59

92-5

LOCK WASHER,5/16"

2шт.

60

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

61

19207

HOSE ASSY.

HOSE - bucket cylinder manifold tubes to bucket cylinder ports, rear section (1/2" I.D. x 7/8" O.D. x 19-1/8")

4шт.

62

36549

HYD TUBE

TUBE - rear manifold tube to front bucket cylinder port, rear center section (Also front manifold tube to rear bucket cylinder port, rear section)

4шт.

63

32978

PLATE ASSY.

PLATE - clamp

8шт.

64

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24 NF x 1-1/2

4шт.

65

92-5

LOCK WASHER,5/16"

4шт.

66

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

67

NLS

NO LONGER SERVICED

HOSE - rear manifold tube to front bucket cylinder port, front center section (1/2" I.D. x 7/8" O.D. x 18-3/4")

2шт.

68

36547

HOSE

- front manifold tube to rear bucket cylinder port, front section (1/2" I.D. x 7/8" O.D. x 19")

2шт.

69

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

2шт.

70

31665

COLLAR CLAMP

PLATE - clamp

4шт.

71

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

2шт.

72

92-5

LOCK WASHER,5/16"

2шт.

73

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

74

36519

SCREW

TUBE - hose to front bucket cylinder port

2шт.

75

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

2шт.

76

D23808

CYLINDER - bucket, hydraulic (See figure 122 for breakdown)

2шт.

77

34266

NUT

ELBOW - female pipe, 90 degrees (1/2" NPT) Lateral elbow to pipe nipple

1шт.

78

221-198

NIPPLE - pipe, female elbow to relief valve (1/2" NPT x 6")

1шт.

79

33959

PIPE FITTING

VALVE - relief (See figure 118 for breakdown) Use D24452

1шт.

D24452

VALVE

- relief (See figure 118 for breakdown) See 33959

1шт.

80

NLS

NO LONGER SERVICED

TUBE - relief valve to tee in control valve outlet

1шт.

81

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 3/4" JIC x 1/2" NPT

1шт.

82

218-556

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Br

- pipe, control valve outlet (3/4" JIC x 3/4" NPT x 3/4" JIC)

1шт.

83

19194

SHAFT

TUBE - control valve outlet tee to port on front side of reservoir

1шт.

84

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (3/4" JIC x 3/4" NPT)

1шт.

85

13647

RESERVOIR - hydraulic oil

1шт.

86

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

2шт.

87

92-6

LOCK WASHER,3/8"

2шт.

88

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

2шт.

89

35074

CAP - filler (Dipstick, Serial Range: welded-cap)

1шт.

90

31543

BREATHER

FILTER - breather, reservoir (See D11183)

1шт.

T14011

ELEMENT

- filter (Not shown)

1шт.

D11183

KIT - reservoir pressure control (See 31543)

1шт.

91

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - close pipe, 1/4" NPT x 1"

1шт.

92

221-431

TEE

- pipe, 1/4" NPT x 1/4" NPT x 1/8" NPT

1шт.

93

R15538

VALVE

- relief, vacuum (2 to 5 P.S.I.)

1шт.

94

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - hex. pipe, 1/4" NPT x 1/8" NPT

1шт.

95

R15536

VALVE

- relief, pressure (10 to 20 P.S.I.)

1шт.

96

36533

TUBE - return line, reservoir to pump inlet (Rear section)

1шт.

97

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1" JIC x 1" NPT

1шт.

98

32798

HOSE

- return line, reservoir to pump inlet (Center section) (1" I.D. x 1-1/2" O.D. x 6")

1шт.

99

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

100

36535

O-RING

TUBE - return line, reservoir to pump inlet (Front section)

1шт.

101

218-547

ELBOW,45 Degree, 1 5/16"-12 37 Degree x 3/4"-14, NPTF

- male, 45 degrees (1" JIC x 3/4" NPT)

1шт.
