Запчасти Case 320 (108) - LOADER FRAME, LIFT ARMS, BUCKETS, AND CYLINDERS (07) - HYDRAULIC SYSTEM

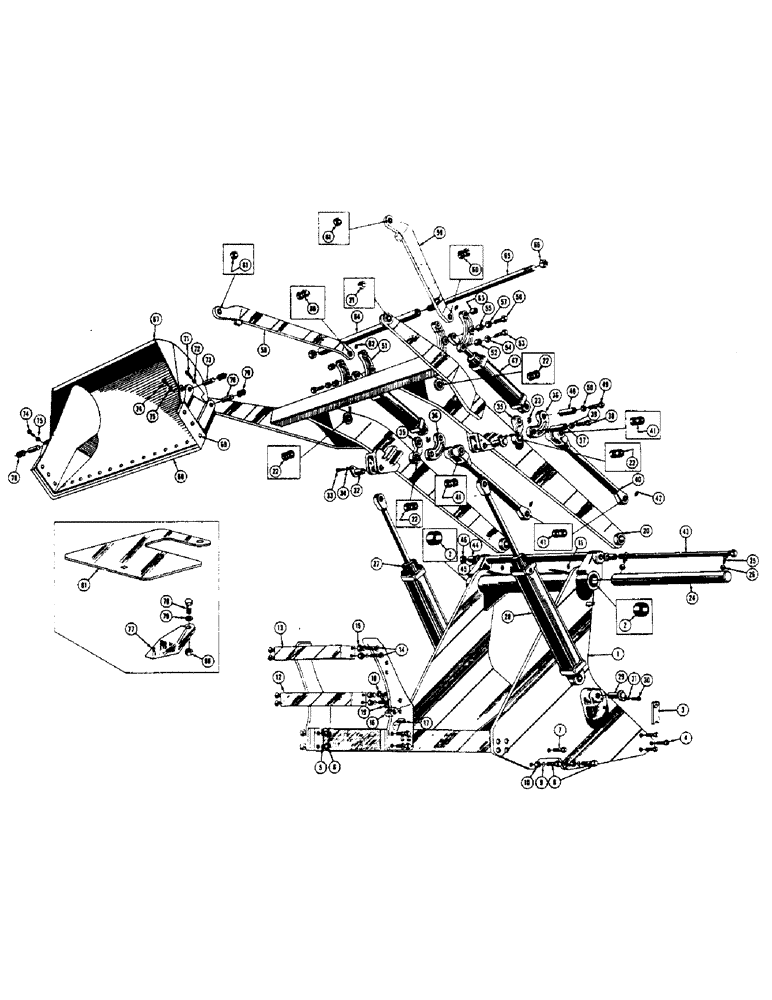

Схема запчастей Case 320 - (108) - LOADER FRAME, LIFT ARMS, BUCKETS, AND CYLINDERS (07) - HYDRAULIC SYSTEM
34
78
68
71
8
69
65
54
75
61
35
14
52
35
7
42
26
30
20
74
22
64
22
52
51
49
46
47
80
28
41
6
15
10
67
14
29
38
41
11
13
31
16
53
39
46
2
25
57
7
56
27
37
10
56
73
55
24
60
75
15
3
74
22
12
81
34
66
53
44
72
59
4
38
17
43
1
35
32
22
23
19
45
60
50
33
21
9
79
5
40
47
61
77

Артикул

Название

Примечание

Количество

1

31337

FRAME - main, Loader (Includes 2 - D23870 bushings) Up to serial no. 3003851

1шт.

37374

FRAME - main, Loader (Includes 2 - D23870 bushings) Backhoe models only - up to serial no. 3003851

1шт.

D21281

FRAME - main, Loader (Serial no. 3003851 and after)

1шт.

2

D23870

BUSHING

- main arm pivot

2шт.

3

D20685

SPACER - main frame, rear (Serial no. 3003851 and after)

2шт.

4

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

HHCS - 5/8 - 18 NF x 3

10шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF)

4шт.

7

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

2шт.

8

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS - 3/4 - 16 NF x 2-1/4

4шт.

9

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

10

25-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16 NF)

4шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

12

31162

PLATE - rub and reinforcement, lower

1шт.

13

31618

PLATE - rub and reinforcement, upper

1шт.

14

62-828

SCREW - cap, socket head (1/2" - 20 NF x 1-3/4")

8шт.

92-8

LOCK WASHER,1/2"

Not shown 1/2"

8шт.

15

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

8шт.

16

31636

BLOCK - stop

2шт.

17

31123

BRACKET - mounting, stop block

2шт.

18

14-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

HHCS - 1/2 - 20 NF x 3-1/2

2шт.

19

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2" - 20 NF)

2шт.

20

D23301

ARM - main (42" gauge Loader only) Includes 2 - D21912 bushings and 8 - 30634 bushings

1шт.

D23156

ARM - main (48" gauge Loader only)

1шт.

21

D21912

BUSHING

- bucket pivot, main arm

2шт.

22

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- bucket linkage pivot, main arm

8шт.

23

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

4шт.

24

31318

SHAFT - pivot, main arm

1шт.

25

14-888

HHCS - 1/2 - 20 NF x 5-1/2

2шт.

26

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2" - 20 NF)

2шт.

27

31608

CYLINDER - Loader lift, hydraulic (R.H.) See figure 120 for breakdown

1шт.

28

31609

CYLINDER - Loader lift, hydraulic (L.H.) See figure 120 for breakdown

1шт.

29

31109

PIN ASSY.

PIN - mounting, lift cylinder (Rear)

2шт.

30

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

2шт.

31

92-8

LOCK WASHER,1/2"

Use 193-32 and D23740 1/2"

2шт.

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, , Not shown Int Tooth, 1/2"

2шт.

D23740

BUSHING

- lockhead pin (Not shown)

2шт.

32

31340

PISTON

PIN - mounting, lift cylinder (Front)

2шт.

33

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

2шт.

34

92-8

LOCK WASHER,1/2"

Use 193-32 and D23740 1/2"

2шт.

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, , Not shown Int Tooth, 1/2"

2шт.

D23740

BUSHING

- lockhead pin (Not shown)

2шт.

35

72619

LEVER - pivot, R.H. (Bucket cylinder and leveling rod)

2шт.

36

72620

LEVER - pivot, L.H. (Bucket cylinder and leveling rod)

2шт.

37

31146

SPACER - 72619 and 72620 pivot levers

2шт.

38

14-1692

HHCS - 1 - 14 NF x 5-3/4

2шт.

39

131-370

LOCK NUT

NUT - lock (1" - 14 NF)

2шт.

40

34276

ROD - leveling

2шт.

41

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- leveling rod

4шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

43

31147

BOLT - pivot, leveling rod

1шт.

44

30959

SPACER - leveling rod pivot bolt

2шт.

45

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- standard wrot (1")

2шт.

46

131-370

LOCK NUT

NUT - lock (1" - 14 NF)

1шт.

47

D23808

CYLINDER - bucket, hydraulic (See figure 122 for breakdown)

2шт.

48

31146

SPACER - bucket cylinder pivot, rear

2шт.

49

14-1692

HHCS - 1 - 14 NF x 5-3/4

2шт.

50

131-370

LOCK NUT

NUT - lock (1" - 14 NF)

2шт.

51

30957

LEVER - pivot, bucket dump arm and bucket cylinder

4шт.

52

30959

SPACER - pivot, lower (30957 pivot lever)

2шт.

53

14-1664

BOLT,Hex, 1" - 14 x 4", Gr 5

HHCS - dump arm and pivot lever mounting (1 - 14 NF x 4)

2шт.

54

131-370

LOCK NUT

NUT - lock (1" - 14 NF)

2шт.

55

30959

SPACER - pivot, bucket cylinder (Front)

2шт.

56

14-1664

BOLT,Hex, 1" - 14 x 4", Gr 5

HHCS - 1 - 14 NF x 4

2шт.

57

131-370

LOCK NUT

NUT - lock (1" - 14 NF)

2шт.

58

34273

ARM - bucket dump, R.H. (42" gauge Loader only) Includes ref. numbers 60 and 61

1шт.

34269

WASHER

ARM - bucket dump, R.H. (48" gauge Loader only) Includes ref. numbers 60 and 61

1шт.

59

34274

ARM - bucket dump, L.H. (42" gauge Loader only) Includes ref. numbers 60 and 61

1шт.

34270

BELT

ARM - bucket dump, L.H. (48" gauge Loader only)

1шт.

60

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- dump arm, rear

2шт.

61

D21903

BUSHING

- dump arm, front

1шт.

62

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

63

30959

SPACER - pivot, dump arm (Rear)

2шт.

64

31068

SPACER - pipe

1шт.

65

33965

SPACER

ROD - tie

1шт.

66

131-370

LOCK NUT

NUT - lock (1" - 14 NF)

2шт.

67

32648

LINE

BUCKET - Loader (42" gauge Loader only)

1шт.

68

31258

EDGE - cutting, bucket

1шт.

69

46-826

RIVET

- cutting edge

19шт.

67

32649

BUCKET - (48" gauge Loader only)

1шт.

68

30889

EDGE - cutting, bucket

1шт.

69

46-826

RIVET

- cutting edge

21шт.

70

32599

PIN - mounting, bucket to main arm

2шт.

71

14-864

CAPSCREW,Hex, 1/2" - 20 x 4", Gr 5

HHCS - 1/2 - 20 NF x 4

2шт.

72

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2" - 20 NF)

2шт.

73

32598

PIN

- mounting, bucket to bucket dump arm

2шт.

74

14-660

SCREW,Hex, 3/8" - 24 x 3 3/4", Gr 5

HHCS - 3/8 - 24 NF x 3-3/4

2шт.

75

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8" - 24 NF)

2шт.

76

31928

SHIM - bucket to dump arm

1шт.

77

16988

TOOTH - digging (Optional)

5шт.

78

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2 - 20 NF x 2-1/4

5шт.

79

92-8

LOCK WASHER,1/2"

5шт.

80

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

5шт.

81

37383

COVER - access, instrument panel back (Up to serial no. 3003851)

1шт.

D20370

COVER - access, instrument panel back (Serial no. 3003851 and after)

1шт.

Выбрано товаров: 95
