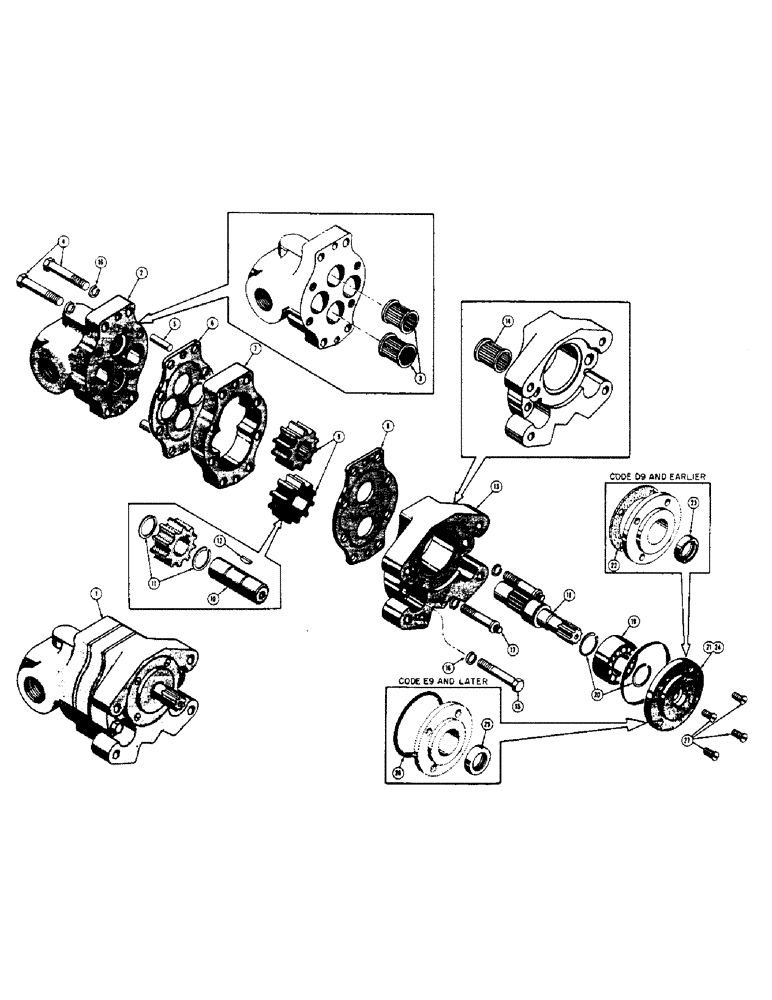

Запчасти Case 320 (104) - D21319 HYDRAULIC PUMP (19 G.P.M.) (07) - HYDRAULIC SYSTEM

1

D21319

PUMP - hydraulic (Webster #2XES1-L) See D26066 or D31614

1шт.

2

D21333

COVER - pump (Code D9 and earlier pumps only) Use D24860

1шт.

3

F51079

NEEDLE BEARING

BEARING - needle

2шт.

2

D24860

COVER - pump (Code E9 and later pumps only)

1шт.

3

F51079

NEEDLE BEARING

BEARING - needle

2шт.

4

13-842

HHCS - 1/2 - 13 NC x 2-5/8

4шт.

5

D21334

PIN - dowel, pump cover to gear plate

2шт.

6

D21465

PLATE - wear, pump cover to gear plate

1шт.

7

34534

CAM

PLATE - gear

1шт.

8

D21466

PLATE - wear, pump body to gear plate (Use D21465)

1шт.

9

D27161

X

GEARS - set of, drive and driven

1шт.

10

34625

GUARD

SHAFT - driven gear

1шт.

11

34626

RING, SNAP

SNAP RING - driven gear

2шт.

12

48777

X

KEY - Woodruff, driven gear

1шт.

13

D21336

X

BODY - pump (Code D9 and earlier pumps only) (Use D24848, D24053, and D24862)

1шт.

14

F51079

NEEDLE BEARING

BEARING - needle

1шт.

13

D24858

BODY - pump (Code E9 and later pump only)

1шт.

14

F51079

NEEDLE BEARING

BEARING - needle

1шт.

15

13-846

HHCS - 1/2 - 13 NC x 2-7/8

2шт.

16

D23924

WASHER - lock, special (1/2")

6шт.

17

D21340

X

SCREW - counterbore, special (1/2" - 13 NC x 3")

2шт.

18

D21337

SHAFT - pump drive

1шт.

19

40200

BEARING ASSY,1.1811" ID x 2.4409" OD x 0.9375"

- ball, drive shaft

1шт.

20

34488

RING, SNAP

SNAP RING - bearing retaining

2шт.

21

D21338

PLATE

- pilot (Code D9 and earlier pumps only)

1шт.

22

34490

SPRING

GASKET - pilot plate

1шт.

23

D23754

X

SEAL - oil, drive shaft (Double lip) (Use D24047)

1шт.

24

D24862

PLATE

- pilot (Code E9 and later pumps only)

1шт.

25

D24047

SEAL

- oil, drive shaft (Double lip)

1шт.

26

D24053

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

SEAL - "O" ring, (Code E9 and later pumps only)

1шт.

27

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

- machine, flat head (1/4" - 20 NC x 1/2")

4шт.
