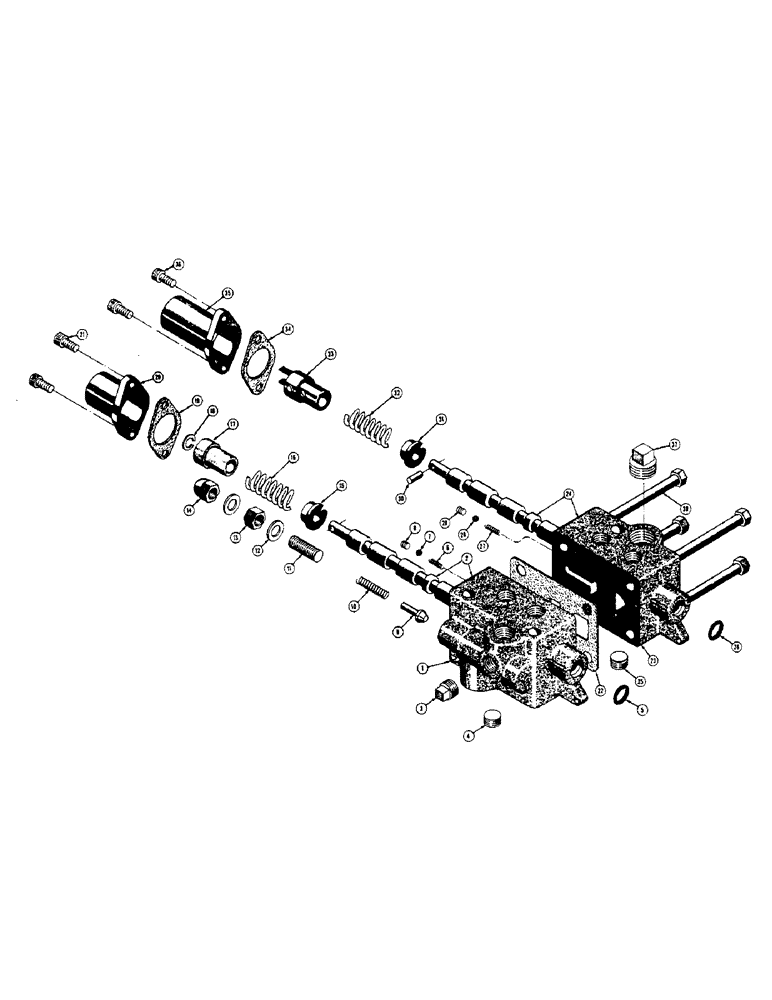

Запчасти Case 320 (094) - 16400 HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
16400
VALVE - control
1шт.
1
16401
SECTION - inlet, control valve
1шт.
2
NSS
NOT SOLD SEPARAT
HOUSING AND SPOOL - matched set
1шт.
3
221-14
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG - pipe, 1/2" NPT square head
1шт.
4
221-844
PLUG,Hex Soc, 1/2"-14
- pipe, 1/2" NPT hex. socket head
1шт.
5
16202
O-RING,40544" ID x 13" OD x 1"
SEAL - "O" ring
1шт.
6
16212
HOSE
SPRING - check valve
1шт.
7
VT4852
X
BALL - check valve, 5/32" dia.
1шт.
8
16214
HOSE
SEAT - check valve
1шт.
9
16227
HOSE
POPPET - relief valve
1шт.
10
16404
SPRING CUP
SPRING - compression, relief valve
1шт.
11
NLS
NO LONGER SERVICED
SCREW - adjusting, relief valve
1шт.
12
16219
GASKET
- relief valve
2шт.
13
25-119
NUT,9/16"-18, G5
- hex. (9/16 - 18 NF)
1шт.
14
48355
NUT - cap (9/16" - 18 NF)
1шт.
16
16204
VALVE
SPRING - spool return
1шт.
17
16411
HOSE
GUIDE - spool return spring
1шт.
18
NLS
NO LONGER SERVICED
- spring guide
1шт.
19
16211
HOSE
GASKET - valve spool cap
1шт.
20
NLS
NO LONGER SERVICED
CAP - valve spool, short
1шт.
21
61-512
HEX SOC SCREW,5/16"-18 x 3/4"
SHCS - 5/16" - 18 NC x 3/4"
2шт.
23
16402
CYLINDER
SECTION - outlet, control valve
1шт.
24
NSS
NOT SOLD SEPARAT
HOUSING AND SPOOL - matched set
1шт.
25
221-844
PLUG,Hex Soc, 1/2"-14
- pipe, 1/2" NPT hex. socket head
1шт.
26
16202
O-RING,40544" ID x 13" OD x 1"
SEAL - "O" ring, valve spool
1шт.
27
16212
HOSE
SPRING - check valve
1шт.
28
VT4852
X
BALL - check valve, 5/32" dia.
1шт.
29
16214
HOSE
SEAT - check valve
1шт.
30
16207
TUBE
PIN - stop, 1/4" x 21/32"
1шт.
32
16204
VALVE
SPRING - spool return
1шт.
33
16206
GUIDE - spring
1шт.
34
16211
HOSE
GASKET - valve spool cap
1шт.
36
61-512
HEX SOC SCREW,5/16"-18 x 3/4"
SHCS - 5/16" - 18 NC x 3/4"
2шт.
37
221-15
PLUG,Sq Hd, 3/4"-14
- pipe, 1/2" NPT square head
1шт.
38
13-852
BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5
4шт.
Выбрано товаров: 39
