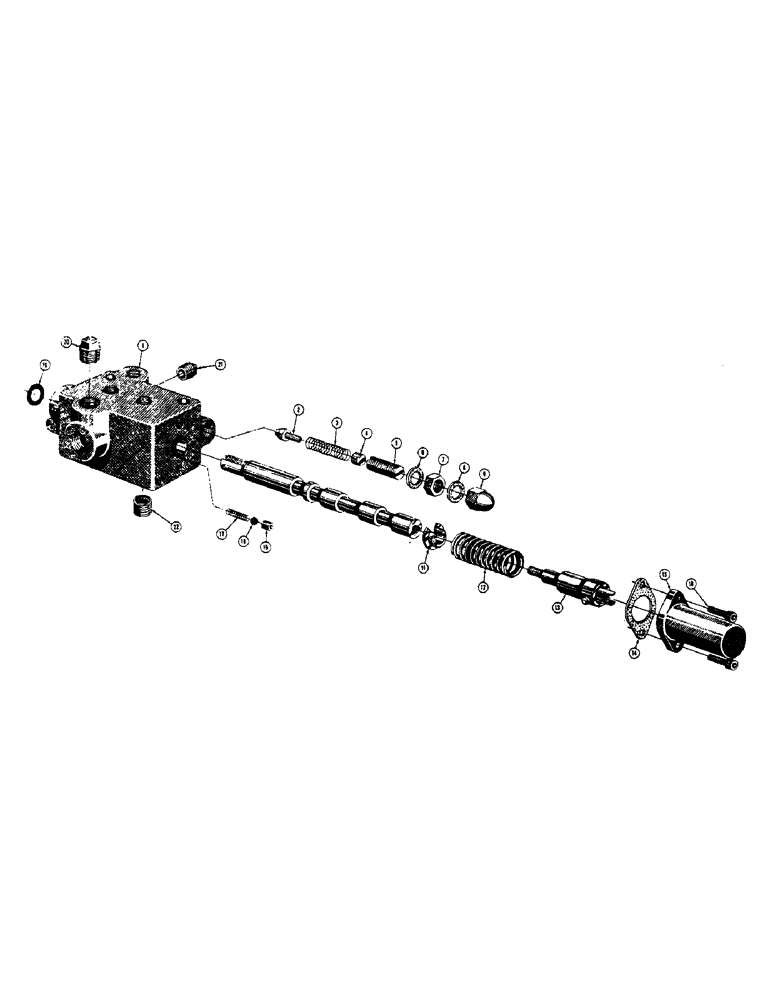

Запчасти Case 320 (092) - 16130 HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM

16130

TUBE

VALVE - control

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - matched set

1шт.

2

16227

HOSE

POPPET - relief valve

1шт.

3

NLS

NO LONGER SERVICED

SPRING - relief valve

1шт.

4

16217

BUSHING

PLUG - relief valve

1шт.

5

NLS

NO LONGER SERVICED

SCREW - adjusting, relief valve

1шт.

6

16219

GASKET

- relief valve

1шт.

7

25-119

NUT,9/16"-18, G5

- hex. (9/16 - 18 NF)

1шт.

8

16219

GASKET

- relief valve

1шт.

9

48355

NUT - cap (9/16" - 18 NF)

1шт.

10

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring, valve spool

1шт.

11

16205

RETAINER - spring

1шт.

12

16204

VALVE

SPRING - spool return

1шт.

13

16206

GUIDE - spring

1шт.

16207

TUBE

PIN - stop, 1/4" x 21/32" (Not shown)

1шт.

14

16211

HOSE

GASKET - valve cap

1шт.

15

16210

HOSE

CAP - valve

1шт.

16

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS - 5/16" - 18 NC x 3/4"

2шт.

17

16212

HOSE

SPRING - check valve

1шт.

18

VT4852

X

BALL - check valve, 5/32" dia.

1шт.

19

16214

HOSE

SEAT - check valve

1шт.

20

221-15

PLUG,Sq Hd, 3/4"-14

- pipe, 3/4" NPT square head

1шт.

21

221-834

X

PLUG - pipe, 1/2" NPT extended square head

1шт.

22

221-844

PLUG,Hex Soc, 1/2"-14

- pipe, 1/2" NPT hex. socket head

1шт.
