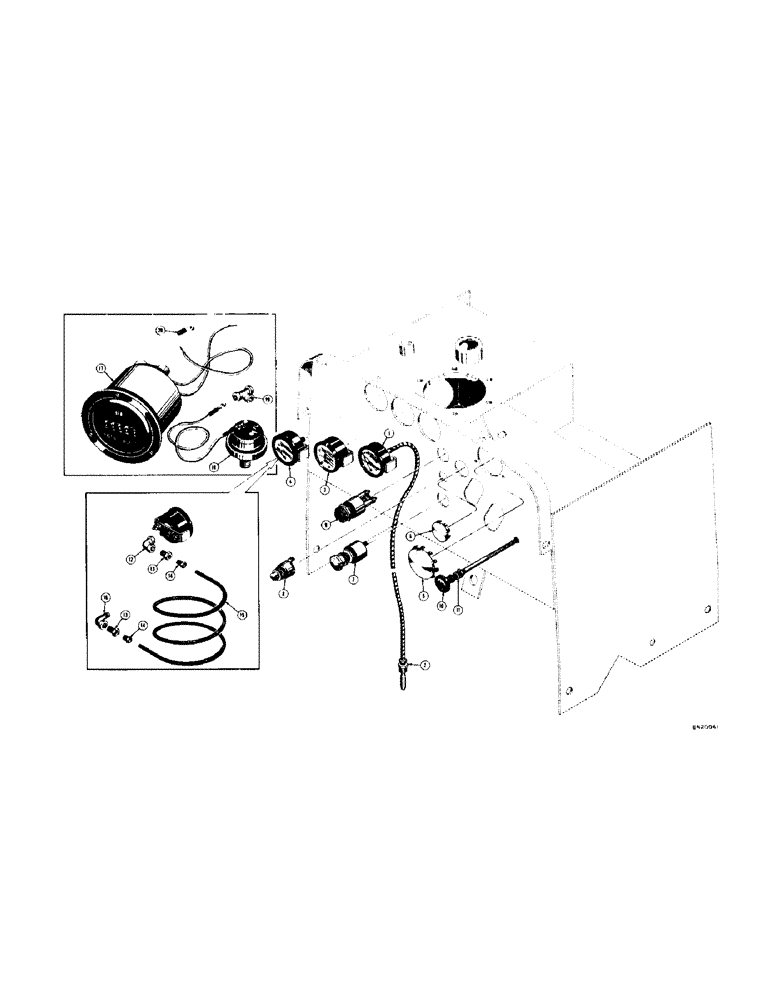

Запчасти Case 320 (050) - INSTRUMENT PANEL, *(SERIAL NO. 3003851 AND AFTER) (06) - ELECTRICAL SYSTEMS

1

11284

ELECTRICAL GAUGE

GAUGE - temperature

1шт.

2

D26015

FITTING

ADAPTER - temperature gauge heat bulb

1шт.

3

10860

X

AMMETER

1шт.

4

D26894

X

GAUGE - oil pressure

1шт.

5

30842

SPARE PART

PLUG - button (2") hour meter hole

1шт.

6

49861

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

PLUG - button (1-1/4") control valve relief adjustment hole

1шт.

7

10855

X

SWITCH - light (Optional)

1шт.

8

D23216

SWITCH

- push button starter

1шт.

9

A10868

DECAL

LOCKSWITCH - ignition

1шт.

10

10856

CONTROL - carburetor choke

1шт.

10858

LOOM - protective (3/16" O.D. x 32") Not shown

1шт.

11

195-5

WASHER

- plain (1/8" I.D. x 5/16" O.D. x 1/32" thick)

2шт.

12

221-365

ELBOW,45 Degree, 1/8" NPT

- 45 degree female, 1/8" NPT

1шт.

13

37388

SPRING

NUT - tube, brass

2шт.

14

37389

SPRING

CONNECTOR - tube, brass

2шт.

15

G10972

LINE

- oil pressure, copper

1шт.

16

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

17

33481

X

METER - engine hour (6-12 volt) Optional

1шт.

18

O8179AB

X

SWITCH - pressure (Used with hour meter)

1шт.

19

221-421

TEE,1/8" NPT

- pipe, (Used with hour meter) 1/8" NPT

1шт.

20

49792

SPACER

END - wire, eyelet type (Used with hour meter)

1шт.
