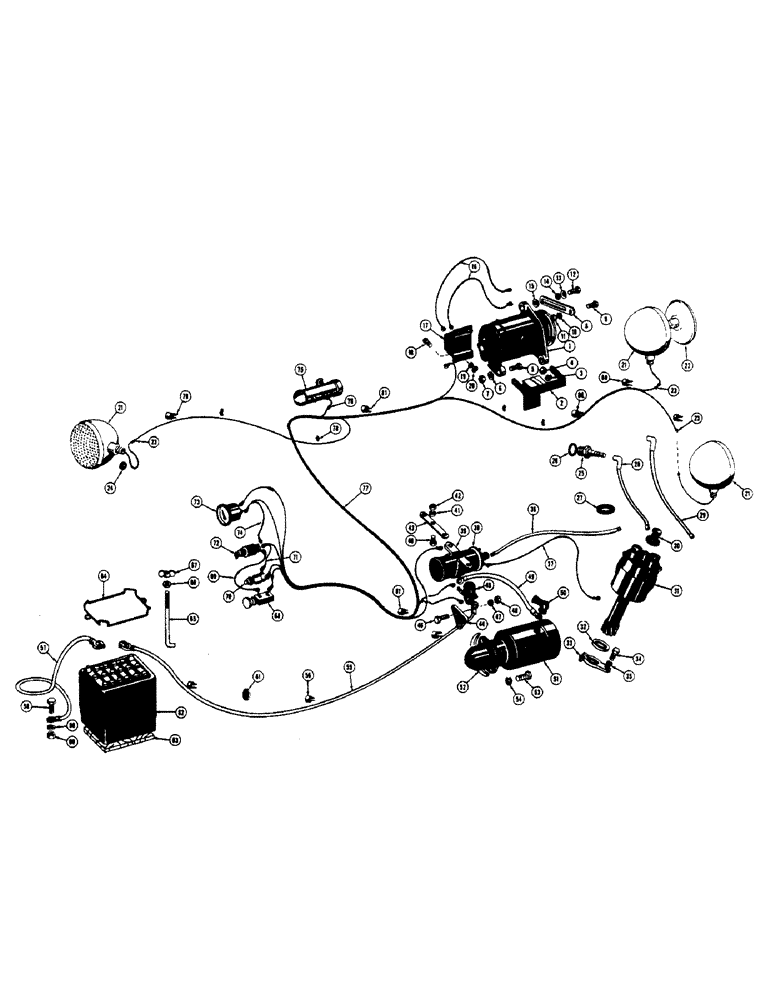

Запчасти Case 320 (032) - STARTER, GENERATOR, BATTERY, AND WIRING (12 VOLT) (SN 3003851 AND AFTER) (06) - ELECTRICAL SYSTEMS

1

G44844

GENERATOR - 12 volt (Auto-Lite no. GJL-7003-A)

1шт.

1

108004A1R

REMAN-GENERATOR

Remanufactured Generator, 12 volt 11 ampere, N.A. Only

1шт.

1

108004A1C

CORE-GENERATOR

Return Number, Generator, 12 volt 11 ampere, N.A. Only

1шт.

2

D23279

All part numbers ecept G11051 must be obtained from an Auto-Lite Service Station.

1шт.

VT4508

STUD - generator bracket to block (3/8" x 1-1/4") Not shown

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

2шт.

5

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

HHCS - plated, generator to bracket (5/16" - 24 NF x 1-1/4")

2шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

7

129-122

NUT,5/16"-24, G5

2шт.

8

D20352

STRAP - generator adjusting

1шт.

9

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - adjusting strap (3/8 - 24 NF x 1-1/4)

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

1шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Adjusting strap to generator Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

13

195-103

WASHER,5/16"

- plain, plated (3/8" I.D. x 7/8" O.D. x 5/64" thick)

1шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

15

VT4504

WASHER

- spacer (13/32" I.D. x 7/8" O.D. x 1/8" thick)

1шт.

16

G44028

INSTRUCTION

CABLE - generator to voltage regulator

1шт.

17

G44845

REGULATOR

- voltage, 12 volt (Auto-Lite no. VRT-4203-A)

1шт.

18

173-214

SCREW,Phil Rnd Hd, 1/4" - 20 x 3/4"

- machine, round recessed Philips head (Plated) (1/4" - 20 NC x 3/4")

3шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

21

39056

LIGHT - head and tail, 12 volt (Optional)

3шт.

22

D21323

UNIT - sealed beam, 12 volt

1шт.

23

32395

SEAL ASSY.

END - wire, bullet type

3шт.

24

49561

GROMMET,1/4" ID x 7/16" Groove Dia

- rubber, tail light wire

1шт.

25

G44840

SPARK PLUG

- 18 MM (Champion no. D-16)

4шт.

26

G46839

GASKET

- spark plug (Champion no. A-676)

1шт.

27

V20356

NUT

WASHER - rubber, spark plug wire retaining

1шт.

28

VTA3354

X

WIRE - no. 2 and 3 spark plugs to distributor (8-1/2")

2шт.

29

VT2879

X

WIRE - no. 1 and 4 spark plugs to distributor (10-1/2")

2шт.

30

VT3561

X

NIPPLE - rubber, spark plug wires and coil cable at distributor

5шт.

31

G11051

DISTRIBUTOR

- Auto-Lite no. 1AD-6003-2J (See figure 36 for breakdown)

1шт.

32

VT5060

X

WASHER - thrust, distributor advance arm

1шт.

33

VTA2775

X

ARM - distributor advance

1шт.

34

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

35

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

36

VT3534

X

CABLE - coil to distributor (11")

1шт.

G46803

BOOT

NIPPLE - rubber, coil to distributor cable at coil (Not shown)

1шт.

37

G13085

ELECTRICAL WIRE

WIRE - coil to distributor (12")

1шт.

38

G44808

X

COIL - ignition

1шт.

39

G46106

BRACKET

BAND - coil mounting

1шт.

173-219

SCREW - machine, round head (Plated) (No. 10 - 32 NF x 1-1/2") (Not shown)

1шт.

40

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Coil to mounting strap Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

41

92-5

LOCK WASHER,5/16"

2шт.

42

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

43

G11705

BRACKET

STRAP - mounting, coil

1шт.

44

G11286

BRACKET - support, solenoid

1шт.

45

G44835

SOLENOID

- starting

1шт.

46

173-214

SCREW,Phil Rnd Hd, 1/4" - 20 x 3/4"

- machine, round Philips head (Plated) (1/4" - 20 NC x 3/4")

2шт.

47

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

48

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

49

G13164

CABLE -, Serial Range: solenoid-starter

1шт.

50

A21753

CAP

NIPPLE - rubber, starter and solenoid terminals

3шт.

51

G44853

MOTOR - starting, 12 volt (Delco-Remy no. 1107745)

1шт.

52

V14662

SEAL - felt, starting motor

1шт.

53

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

54

92-7

LOCK WASHER,7/16"

2шт.

55

32375

CABLE

- battery, hot (75")

1шт.

56

49836

CLAMP

- battery cable, hot

3шт.

57

38478

CABLE - battery, ground (16") use D11194

1шт.

58

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd, Ground cable

1шт.

59

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

60

129-123

NUT,3/8"-24, G5

1шт.

61

49562

GROMMET,11/16" ID x 1" Groove Dia

- rubber, hot battery cable

1шт.

D11194

KIT

- cable, improved electrical ground

1шт.

57

D27497

CABLE - battery, ground (35")

1шт.

58

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Ground cable Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

59

92-6

LOCK WASHER,3/8"

1шт.

60

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

1шт.

61

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- rubber, battery cables

1шт.

62

NSS

NOT SOLD SEPARAT

BATTERY - 12 volt (Exide #SS-2SM)

1шт.

63

38750

BOARD - battery bottom

1шт.

64

38749

KEY

BRACKET - battery hold down (Up to serial no. 3004532) Use G46215

1шт.

G46215

X

BRACKET - battery hold down (Serial no. 3004532 and after)

1шт.

65

17-6160

HHCS - battery hold down bracket retaining (3/8" - 16 NC x 10") Up to serial no. 3004532

2шт.

38892

BOLT - angle, battery hold down bracket retaining (5/16" - 18 NC x 10") Serial no. 3004532 and after

2шт.

66

195-25

WASHER,3/8"

- plain (13/32" I.D. x 13/16" O.D. x 1/16" thick) Use with 17-6160

2шт.

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16") Use with 38892

2шт.

67

129-410

WING NUT,3/8"-16

NUT - wing (3/8 - 16 NC) Use with 17-6160

2шт.

129-419

WING NUT,5/16"-18

NUT - wing (5/16 - 18 NC) Use with 38892

2шт.

68

10855

X

SWITCH - light

1шт.

69

NLS

NO LONGER SERVICED

WIRE - jumper, ignition switch to light switch

1шт.

70

D23216

SWITCH

- push button starter

1шт.

71

33709

WIRE - jumper, ignition switch to starter switch

1шт.

72

A10868

DECAL

LOCKSWITCH - ignition

1шт.

73

10860

X

AMMETER

1шт.

74

33760

WIRE - jumper, ammeter to ignition switch

1шт.

75

38873

PUMP - fuel, electric (12 volt)

1шт.

76

32395

SEAL ASSY.

END - wire, bullet type

1шт.

77

38868

HARNESS - main wiring

1шт.

VT2124

X

FUSE - 20 amp (Mfrs. no. SFE-20) Not shown

2шт.

78

NLS

NO LONGER SERVICED

- main wiring harness, tail and head light wires

4шт.

79

49832

CLAMP

- main wiring harness, tail light wire

1шт.

80

49838

CLAMP

- main wiring harness

2шт.

81

49836

CLAMP

- main wiring harness

2шт.
