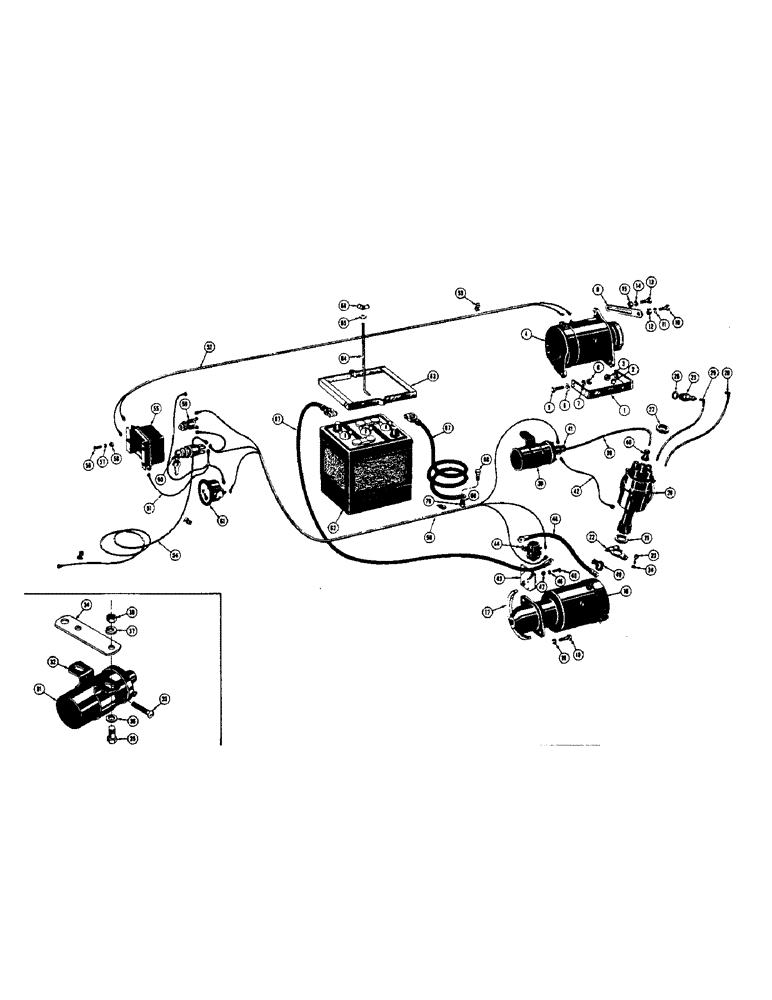

Запчасти Case 320 (028) - STARTER, GENERATOR, BATTERY, AND WIRING (6 VOLT), (UP TO SN 3003851) (06) - ELECTRICAL SYSTEMS

1

G10826

BRACKET - generator

1шт.

VT4508

STUD - generator bracket to block (3/8" x 1-1/2") Not shown

2шт.

2

92-6

LOCK WASHER,3/8"

2шт.

3

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

2шт.

4

G13080

GENERATOR - 6 volt (Auto-Lite no. GHD-6002A)

1шт.

5

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

2шт.

6

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

2шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

9

G10827

STRAP - generator adjusting

1шт.

10

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8 - 24 NF x 1-1/4

1шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

1шт.

13

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

14

92-5

LOCK WASHER,5/16"

1шт.

15

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

16

G13920

MOTOR - starting, 6 volt

1шт.

17

V14662

SEAL - felt, starting motor

1шт.

18

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

19

92-7

LOCK WASHER,7/16"

2шт.

20

G11051

DISTRIBUTOR

- Auto-Lite no. 1AD-6003-2J (See figure 36 for breakdown)

1шт.

21

VT5060

X

WASHER - thrust, distributor advance arm

1шт.

22

VTA2775

X

ARM - distributor advance

1шт.

23

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25

G44840

SPARK PLUG

- 18MM (Champion no. D-16)

4шт.

26

G46839

GASKET

- spark plug (Champion no. A-676)

1шт.

27

V20356

NUT

WASHER - rubber, spark plug wire retaining

1шт.

28

VTA3354

X

WIRE - no. 2 and 3 spark plugs to distributor (8-1/2")

2шт.

29

VT2879

X

WIRE - no. 1 and 4 spark plugs to distributor (10-1/2")

2шт.

30

G11518

X

COIL - ignition (Original equipment) Use G44810 and G11705

1шт.

31

G44810

X

COIL - ignition (Replacement)

1шт.

32

G46106

BRACKET

BAND - coil mounting

1шт.

33

173-219

SCREW - machine, round head (Plated) (No. 10 - 32 NF x 1-1/2")

1шт.

34

G11705

BRACKET

STRAP - mounting, coil to valve cover stud

1шт.

35

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

HHCS - coil to mounting strap (1/4 - 28 NF x 3/4)

2шт.

36

195-18

WASHER,1/4"

- plain (9/32" I.D. x 5/8" O.D. x 1/16" thick)

2шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

38

25-114

NUT,1/4"-28, G5

- hex. (1/4 - 28 NF)

2шт.

39

VT3534

X

CABLE - coil to distributor (11")

1шт.

40

VT3561

X

NIPPLE - rubber, spark plug wires and coil cable at distributor

5шт.

41

G46803

BOOT

NIPPLE - rubber, distributor to coil cable at coil

1шт.

42

G13085

ELECTRICAL WIRE

WIRE - coil to distributor (12")

1шт.

43

G11286

BRACKET - support, solenoid

1шт.

44

G44839

SOLENOID

- starting

1шт.

45

173-214

SCREW,Phil Rnd Hd, 1/4" - 20 x 3/4"

- machine, round head (Plated) (1/4" - 20 NC x 3/4")

2шт.

46

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

47

9635082

NUT,5/16" - 18, Gr 5

- hex., plated (1/4" - 20 NC)

2шт.

48

G13164

CABLE -, Serial Range: solenoid-starter

1шт.

49

04595AB

NIPPLE - rubber, starter and solenoid terminals

3шт.

50

G13158

CABLE - ignition switch to solenoid, ammeter, and starter switch

1шт.

51

G13159

CABLE - ammeter to voltage regulator, hour meter, and ignition switch

1шт.

52

G13160

CABLE - generator to voltage regulator

1шт.

53

49851

SHIELD

- wire

4шт.

54

38870

CABLE - ignition switch to fuel pump

1шт.

55

G13081

X

REGULATOR - voltage, 6 volt (Auto-Lite no. VRR4105A)

1шт.

56

77-412

SCREW

- machine, truss head (1/4" - 20 NC x 3/4")

3шт.

57

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

58

25-104

NUT,1/4"-20, G5

3шт.

59

D23216

SWITCH

- push button starter

1шт.

60

10868

LOCKSWITCH - ignition

1шт.

61

10860

X

AMMETER

1шт.

62

A8325

BATTERY - dry charge, 6 volt

1шт.

63

33545

BRACKET - battery hold down

1шт.

64

38892

BOLT - angle, battery hold down bracket

2шт.

65

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

2шт.

66

129-419

WING NUT,5/16"-18

NUT - wing (5/16" - 18 NC)

2шт.

67

30875

CABLE - battery, hot and ground (75")

2шт.

68

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

1шт.

69

92-6

LOCK WASHER,3/8"

1шт.

70

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

1шт.
