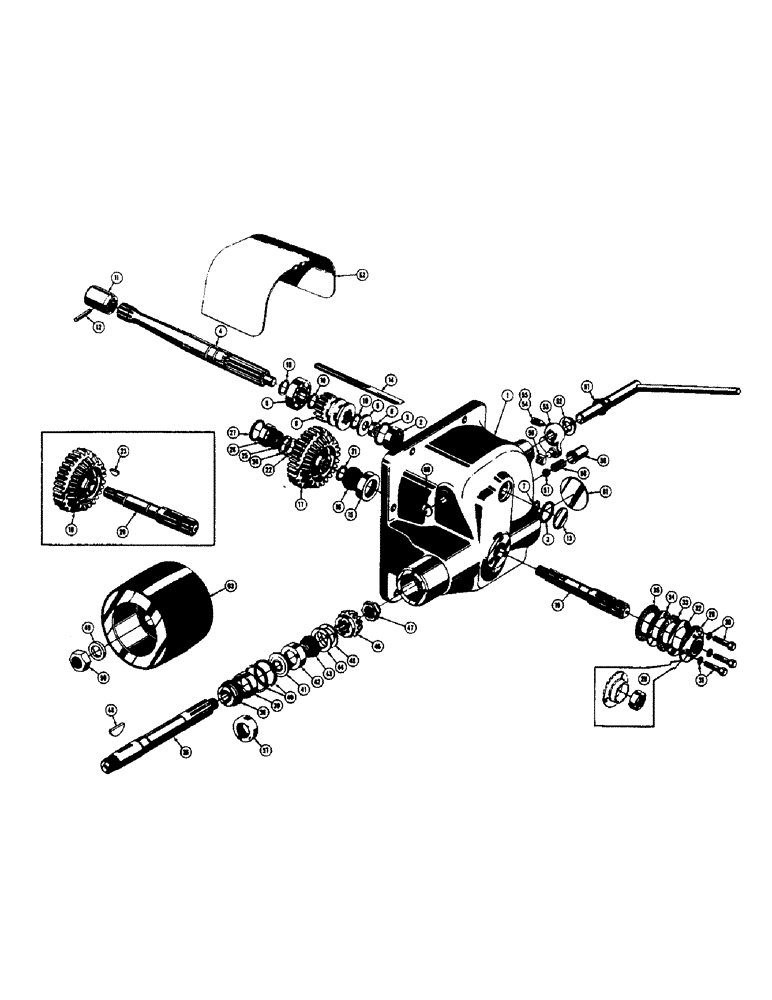

Запчасти Case 320 (216) - POWER TAKE-OFF AND BELT PULLEY (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
D23999
POWER TAKE-OFF - complete
1шт.
1
23087
HYDRAULIC HOSE
HOUSING - P.T.O. (Includes 1 - 11453 snap ring)
1шт.
2
23043
BEARING - drive shaft, rear
1шт.
3
23030
PLATE
SNAP RING - drive shaft bearing
2шт.
4
23009
OIL SEAL
SHAFT - drive
1шт.
5
23022
HYDRAULIC HOSE
SPACER - drive shaft bearing
1шт.
6
23023
BEARING CONE,0.669" ID x 0.9797" OD
RACE - inner, drive shaft bearing
1шт.
7
23024
HYDRAULIC HOSE
RING - retaining, drive shaft
1шт.
8
23054
CARTRIDGE
GEAR - drive
1шт.
9
40040
BALL BEARING,1.1811" ID x 2.4409" OD x 0.6299"
- drive shaft, front
1шт.
10
VT2111
X
SNAP RING - drive shaft
3шт.
11
23018
SLEEVE,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring
- P.T.O. drive shaft to transmission main shaft
1шт.
12
23019
RIVET
- sleeve to drive shaft
1шт.
13
23080
HYDRAULIC HOSE
PLUG - Welsh, drive shaft hole
1шт.
14
23088
TUBE
- oil, P.T.O. bearing
1шт.
15
O4056TS
CUP
- rear bearing, P.T.O. shaft
1шт.
16
VT3404
X
CONE - rear bearing, P.T.O. shaft
1шт.
17
D23997
GEAR - P.T.O. shaft (Splined hub) See 23073
1шт.
18
23073
HYDRAULIC HOSE,Hex, 3/4"-10 x 10", G5
GEAR - P.T.O. shaft (Keyed hub) See D23997
1шт.
19
D23998
SHAFT - P.T.O. (Use with splined gear) See 23025
1шт.
20
23025
HYDRAULIC HOSE
SHAFT - P.T.O. (Use with Woodruff key) See D23998
1шт.
21
VT2111
X
SNAP RING - rear bearing, P.T.O. shaft
1шт.
22
D23996
SPACER - front bearing, P.T.O. shaft (Use with splined gear and shaft)
1шт.
23
23032
X
KEY - Woodruff (Use with keyed gear and shaft)
1шт.
24
23038
HYDRAULIC HOSE
SHIM - front bearing, P.T.O. shaft (.020" thick)
1шт.
D25223
SHIM - front bearing, P.T.O. shaft (.010" thick)
1шт.
D25222
SHIM - front bearing, P.T.O. shaft (.015" thick)
1шт.
25
O1542AB
BEARING ASSY
CONE - front bearing, P.T.O. shaft
1шт.
26
VT2214
X
CUP - front bearing, P.T.O. shaft
1шт.
28
23011
PIN
CAP - rear bearing, P.T.O. shaft
1шт.
29
23033
OIL SEAL
SEAL - oil, rear bearing cap
1шт.
30
NLS
NO LONGER SERVICED
SCREW AND LOCKWASHER
1шт.
31
230016
CHAIN
SCREW AND LOCKWASHER
2шт.
32
23013
TINE
SHIM - rear bearing cap (.010" thick)
1шт.
33
23014
4 WAY CONNECTION
GASKET - rear bearing cap
1шт.
34
23012
TINE
SHIM - rear bearing cap (.005" thick)
1шт.
35
23015
ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw
GASKET - rear bearing cap
1шт.
36
23027
SHAFT - belt pulley
1шт.
37
40634
WASHER
SEAL - oil, belt pulley shaft
1шт.
38
VT3404
X
CONE - outer bearing, belt pulley shaft
1шт.
39
O4056TS
CUP
- outer bearing, belt pulley shaft
1шт.
41
23037
HYDRAULIC HOSE
WASHER - oil, belt pulley shaft
1шт.
42
O4056TS
CUP
- inner bearing, belt pulley shaft
1шт.
43
VT3404
X
CONE - inner bearing, belt pulley shaft
1шт.
44
23035
HYDRAULIC HOSE
SHIM - inner bearing (.005" thick)
1шт.
45
23036
HYDRAULIC HOSE
SHIM - inner bearing (.010" thick)
1шт.
46
23074
HYDRAULIC HOSE
GEAR - drive, belt pulley shaft
1шт.
47
11380
NUT
- gear retaining, belt pulley shaft
1шт.
48
126-146
WOODRUFF KEY,#27, 1/4" x 2 1/8", HT
1шт.
49
23042
HYDRAULIC HOSE
WASHER - belt pulley retaining nut
1шт.
50
23041
HYDRAULIC HOSE
NUT - retaining, belt pulley
1шт.
51
23046
VALVE SPRING
SHIFT LEVER AND SHAFT - P.T.O.
1шт.
52
23093
HYDRAULIC HOSE
WASHER - cork, shift shaft
1шт.
53
23094
HYDRAULIC HOSE
FINGER - shift
1шт.
54
23095
HYDRAULIC HOSE
SCREW - mounting, shift finger
1шт.
55
R10831
ELECTRICAL WIRE
LOCKWIRE
1шт.
56
23096
FILTER ASSY
TRUNNION - shift finger
1шт.
57
O8296AB
X
BALL - mesh lock (5/8" dia.)
1шт.
58
23098
SPRING
- mesh lock ball
1шт.
59
23097
FLANGE NUT,Flg, 7/16"-14, GF
RETAINER - mesh lock
1шт.
60
23089
HYDRAULIC HOSE
PLUG - Welsh, shift shaft hole
1шт.
61
23034
HYDRAULIC HOSE
PLUG - Welsh, belt pulley shaft hole
1шт.
62
23040
HYDRAULIC HOSE
SHIELD - P.T.O.
1шт.
63
23045
BUSHING
PULLEY - belt
1шт.
Выбрано товаров: 66
