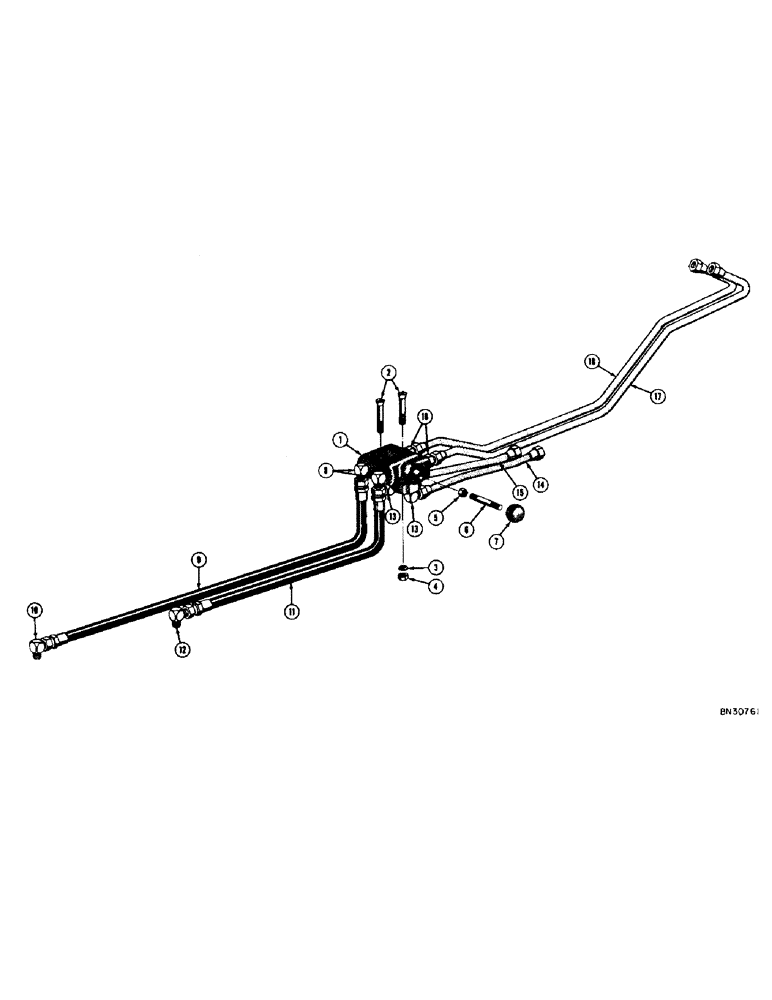

Запчасти Case 320 (186) - SCARIFIER HYDRAULICS (WITH LOADER), (UP TO SERIAL NO. 3003851) (05) - UPPERSTRUCTURE CHASSIS

1

16628

SEAL

VALVE - diversion

1шт.

2

73-656

SCREW - machine, flat head (3/8" - 16 NC x 3-1/2")

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

2шт.

6

18575

STUD - diversion valve

1шт.

7

CAS31375

KNOB

- control

1шт.

8

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

2шт.

9

19178

HOSE

- L.H. rear diversion valve port to lower cylinder port (1/2" I.D. x 7/8" O.D. x 33-1/2")

1шт.

10

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

1шт.

11

19209

HOSE ASSY.

HOSE - R.H. rear diversion valve port to upper cylinder port (1/2" I.D. x 7/8" O.D. x 24")

1шт.

12

D20168

ELBOW - special flow restrictor

1шт.

13

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

2шт.

14

34419

TUBE,12.67, 1.67" Length

- R.H. bottom diversion valve port to control valve

1шт.

15

34434

LATCH

TUBE - L.H. bottom diversion valve port to control valve

1шт.

16

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8" JIC x 1/2" NPT

2шт.

17

19229

TUBE - R.H. front diversion valve port to manifold tube

1шт.

18

19230

TUBE - L.H. front diversion valve port to manifold tube

1шт.
