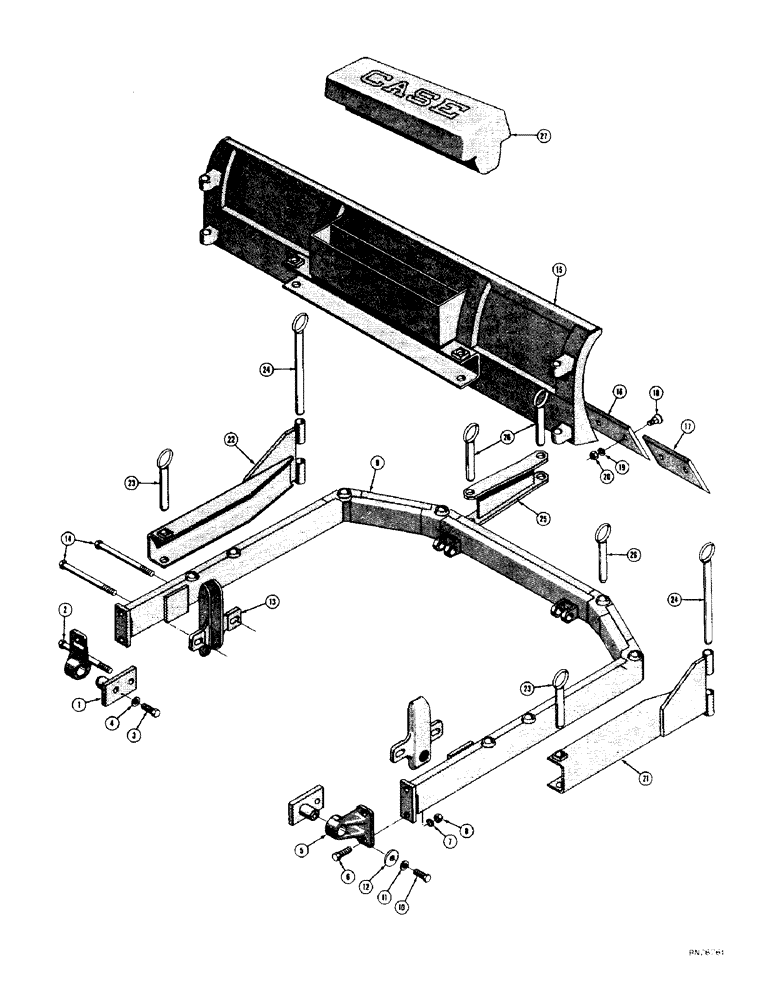

Запчасти Case 320 (148) - MECHANICAL ANGLING DOZER (BACKHOE TRACTOR) (05) - UPPERSTRUCTURE CHASSIS

1

16747

HOSE

BAR - pivot

2шт.

2

16-12186

HHCS - 3/4 - 16 NF x 11-5/8

2шт.

3

14-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

HHCS - 3/4 - 16 NF x 1-3/4

2шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

5

17853

NUT

BRACKET - Dozer pivot

2шт.

6

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - 3/4 - 16 NF x 2-3/4

4шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

8

25-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16 NF)

4шт.

9

16732

O-RING

"C" FRAME - Mechanical Angling Dozer

1шт.

10

14-1220

HHCS - 3/4 - 16 NF x 1-1/4

2шт.

11

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

12

17134

WASHER - retainer, pivot bracket (25/32" I.D. x 2-7/8" O.D. x 3/16" thick)

2шт.

13

16679

PLATE - Dozer rub

2шт.

14

16-12186

HHCS - 3/4 - 16 NF x 11-5/8

4шт.

15

36637

MOLDBOARD - Mechanical Angling Dozer (Backhoe models only)

1шт.

16

16792

EDGE, CUTTING

EDGE - cutting, center

1шт.

17

16187

GUARD

EDGE - cutting, end

2шт.

18

19-832

BOLT

- plow, no. 3 head (1/2" - 13 NC x 2")

22шт.

19

92-8

LOCK WASHER,1/2"

22шт.

20

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

22шт.

21

16757

FITTING

ARM - stabilizer, R.H.

1шт.

22

16758

ARM - stabilizer, L.H.

1шт.

23

16720

SHROUD

PIN - mounting, stabilizer arm to "C" frame

2шт.

24

16569

BACK PLATE

PIN - mounting, moldboard to stabilizer arm

2шт.

25

16798

ARM - support, angling

1шт.

26

16720

SHROUD

PIN - mounting, angling support arm

1шт.

27

19041

WEIGHT - Dozer - Backhoe models (Use D28845)

1шт.

D28845

WEIGHT - Dozer - Backhoe models

1шт.
