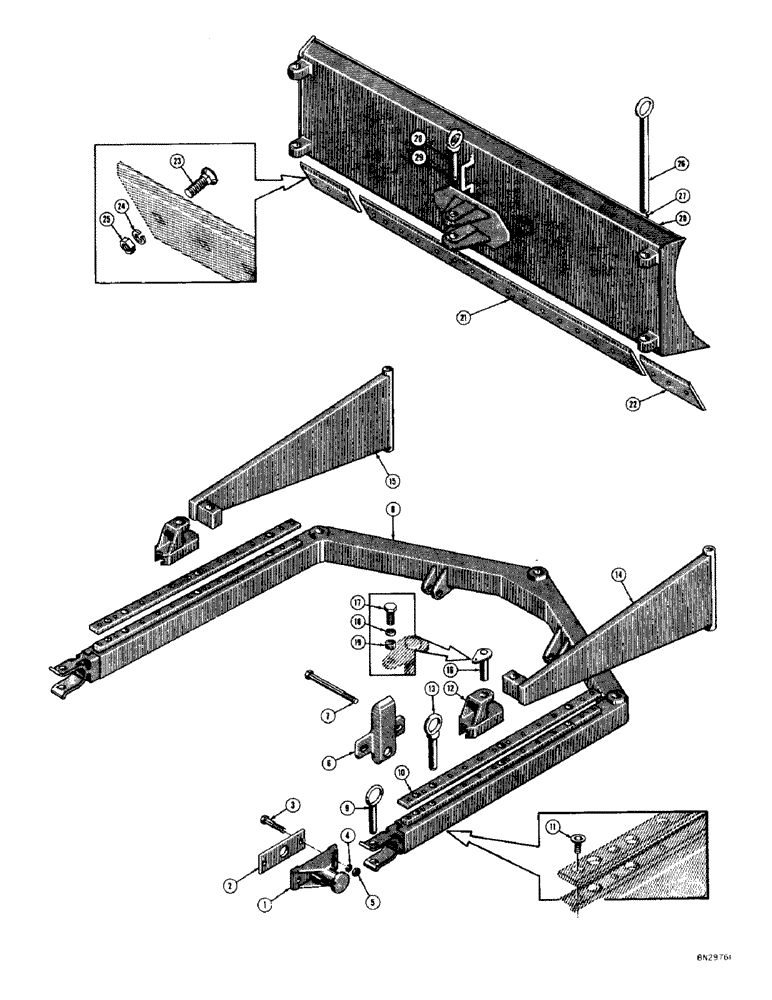

Запчасти Case 320 (146) - MECHANICAL ANGLING DOZER, (SERIAL NO. 3003851 AND AFTER) (05) - UPPERSTRUCTURE CHASSIS

1

34044

SPACER

BRACKET - pivot, Dozer attaching

2шт.

2

34043

SPACER,12.95mm ID x 19.05mm OD x 17.47mm L

- pivot bracket

2шт.

3

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - 3/4 - 16 NF x 2-3/4

4шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

5

25-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16 NF)

4шт.

6

16679

PLATE - Dozer rub

2шт.

7

16-12186

HHCS - 3/4 - 16 NF x 11-5/8

4шт.

8

37575

COVER

"C" FRAME - Mechanical Angling Dozer

1шт.

9

38679

PIN - mounting, "C" frame to pivot bracket

2шт.

10

37573

PLATE - slide

2шт.

11

164-132

HEX SOC SCREW,Flat Hd, 1/2" - 20 x 1 3/4"

CAPSCREW - flat socket head (1/2" - 20 NF x 2")

26шт.

12

39127

BRACKET

- slide

2шт.

13

38070

LUBE NIPPLE

PIN - angling stop

2шт.

14

D20224

STRUT - slide bracket to moldboard, R.H.

1шт.

15

D20225

STRUT - slide bracket to moldboard, L.H.

1шт.

16

D28564

PIN - mounting, strut to slide bracket

2шт.

17

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

2шт.

18

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

19

D23740

BUSHING

- lockhead pin

2шт.

20

38419

MOLDBOARD - Mechanical Angling Dozer

1шт.

21

38047

EDGE

- cutting, center

1шт.

22

16042

EDGE

- cutting, end

2шт.

23

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow, no. 3 head (1/2" - 13 NC x 1-3/4")

23шт.

24

92-8

LOCK WASHER,1/2"

23шт.

25

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

23шт.

26

D20247

PIN - mounting, Serial Range: moldboard-strut

2шт.

27

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

28

38072

PIN

- pivot, moldboard

1шт.

29

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.
