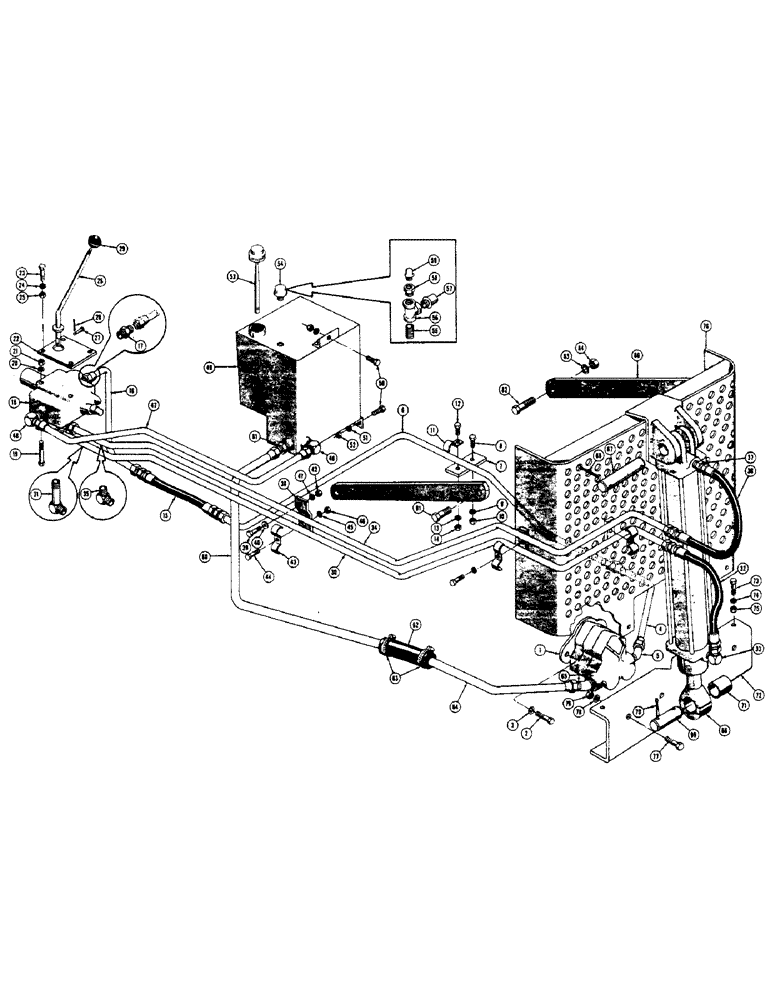

Запчасти Case 320 (136) - SNOW DOZER HYDRAULICS AND RADIATOR GUARD, (UP TO SERIAL NO.3003851) (05) - UPPERSTRUCTURE CHASSIS

1

31615

CAP

PUMP - hydraulic, 15 G.P.M. (See figure 100 for breakdown)

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

36537

TUBE - pump to valve inlet, front section

1шт.

5

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

- male, 45 degrees (3/4" JIC x 3/4" NPT)

1шт.

6

36539

HOSE

TUBE - pump to valve inlet, front center section

1шт.

7

34259

SHIM,.007" Thk

PLATE - support, tube clamp

1шт.

8

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16 - 24 NF x 1

1шт.

9

92-5

LOCK WASHER,5/16"

1шт.

10

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

11

49789

CLAMP

- tube

1шт.

12

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

14

25-104

NUT,1/4"-20, G5

1шт.

15

36541

HOSE - pump to valve inlet, rear center section (3/4" I.D. x 1-5/32" O.D. x 11")

1шт.

16

18943

TUBE - pump to valve inlet, rear section

1шт.

17

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 3/4" JIC x 1/2" NPT

1шт.

18

16130

TUBE

VALVE - control (See figure 92 for breakdown)

1шт.

19

14-872

X,Hex, 1/2" - 20 x 4 1/2", Gr 5

HHCS - 1/2 - 20 NF x 4-1/2

2шт.

20

92-8

LOCK WASHER,1/2"

2шт.

21

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

2шт.

22

16694

PLATE - guide, valve control lever

1шт.

23

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8 - 24 NF x 1-1/4

4шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

4шт.

26

16675

GUSSET

LEVER - control, valve

1шт.

27

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke, control lever to valve spool

1шт.

28

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

29

CAS31375

KNOB

- control lever

1шт.

30

D20118

TUBE - rear control valve port to lower cylinder port, rear section

1шт.

31

218-498

ELBOW - 90 degree male, extra long (5/8" JIC x 1/2" NPT) 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

32

19207

HOSE ASSY.

HOSE - rear control valve port to lower cylinder port, front section (1/2" I.D. x 7/8" O.D. x 19-1/8")

1шт.

33

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

1шт.

34

D20120

TUBE - front control valve port to upper cylinder port, rear section

1шт.

35

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

1шт.

36

18950

HOSE - control valve port to upper cylinder port, front section (1/2" I.D. x 7/8" O.D. x 22-3/4")

1шт.

37

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8" JIC x 1/2" NPT

1шт.

38

18575

BRACKET - support, tube clamp

1шт.

39

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

1шт.

40

95-6

WASHER,3/8"

- standard wrot () 3/8"

1шт.

41

92-6

LOCK WASHER,3/8"

1шт.

42

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

1шт.

43

17179

CLAMP - tube

3шт.

44

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

3шт.

45

92-5

LOCK WASHER,5/16"

3шт.

46

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

47

18944

TUBE - control valve, Serial Range: outlet-reservoir

1шт.

48

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (3/4" JIC x 3/4" NPT)

2шт.

49

13647

RESERVOIR - hydraulic oil

1шт.

50

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

2шт.

51

92-6

LOCK WASHER,3/8"

2шт.

52

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

2шт.

53

35074

CAP - filler (Dipstick, Serial Range: welded-cap)

1шт.

54

31543

BREATHER

FILTER - breather, reservoir (See D11183)

1шт.

T14011

ELEMENT

- filter (Not shown)

1шт.

D11183

KIT - reservoir pressure control (See 31543)

1шт.

55

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - close pipe, 1/4" NPT x 1"

1шт.

56

221-431

TEE

- pipe, 1/4" NPT x 1/4" NPT x 1/8" NPT

1шт.

57

R15538

VALVE

- relief, vacuum (2 to 5 P.S.I.)

1шт.

58

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - hex. pipe (1/4" NPT x 1/8" NPT

1шт.

59

R15536

VALVE

- relief, pressure (10 to 20 P.S.I.)

1шт.

60

36533

TUBE - return line, reservoir to pump inlet (Rear section)

1шт.

61

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1" JIC x 1" NPT

1шт.

62

32798

HOSE

- return line, reservoir to pump inlet (Center section) (1" I.D. x 1-1/2" O.D. x 6")

1шт.

63

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

64

36535

O-RING

TUBE - return line, reservoir to pump inlet (Front section)

1шт.

65

218-547

ELBOW,45 Degree, 1 5/16"-12 37 Degree x 3/4"-14, NPTF

- male, 45 degrees (1" JIC x 3/4" NPT)

1шт.

66

17751

CYLINDER - Dozer lift, hydraulic (See figure 172 for breakdown)

1шт.

67

D20129

PIN - cylinder to radiator guard

1шт.

68

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

69

16726

PIN - cylinder to Dozer "C" frame

1шт.

70

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

71

17631

BUSHING - cylinder

1шт.

72

31769

SPACER

MEMBER - cross, front bumper

1шт.

73

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

2шт.

74

92-8

LOCK WASHER,1/2"

2шт.

75

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

2шт.

76

17637

GUARD - radiator

1шт.

77

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

4шт.

78

92-8

LOCK WASHER,1/2"

4шт.

79

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

4шт.

80

30995

BRACE - radiator guard

2шт.

81

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

2шт.

82

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

2шт.

83

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

84

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF)

4шт.
