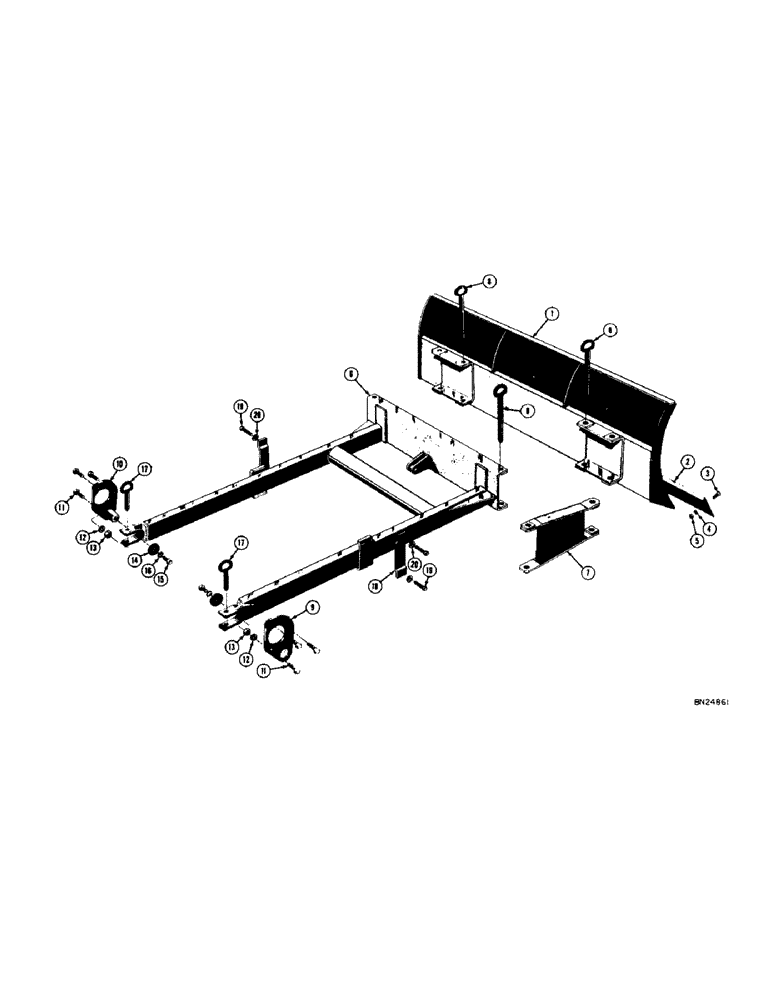

Запчасти Case 320 (134) - SNOW DOZER (36" GAUGE TRACTOR) (05) - UPPERSTRUCTURE CHASSIS

1

NLS

NO LONGER SERVICED

MOLDBOARD - Snow Dozer

1шт.

2

16583

EDGE - cutting

1шт.

3

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow, no. 3 head (1/2" - 13 NC x 1-3/4")

15шт.

4

92-8

LOCK WASHER,1/2"

15шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

15шт.

6

A32665

BUSHING

"C" FRAME - Snow Dozer

1шт.

7

16810

ARM - support, angling

1шт.

8

17156

PIN - mounting, moldboard and angling support arm

3шт.

9

NLS

NO LONGER SERVICED

BRACKET - pivot, R.H.

1шт.

10

NLS

NO LONGER SERVICED

BRACKET - pivot, L.H.

1шт.

11

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

HHCS - 3/4 - 16 NF x 3

6шт.

12

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

13

25-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16 NF)

6шт.

14

17134

WASHER - retainer, "C" frame to pivot bracket (25/32" I.D. x 2-7/8" O.D. x 3/16" thick)

2шт.

15

14-1216

X

HHCS - 3/4 - 16 NF x 1

2шт.

16

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

17

33180

POINT

PIN - "C" frame to pivot bracket

2шт.

18

D20128

PLATE - rub

2шт.

19

14-1052

BOLT,Hex, 5/8" - 18 x 3-1/4"

HHCS - 5/8 - 18 NF x 3-1/4

4шт.

20

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
