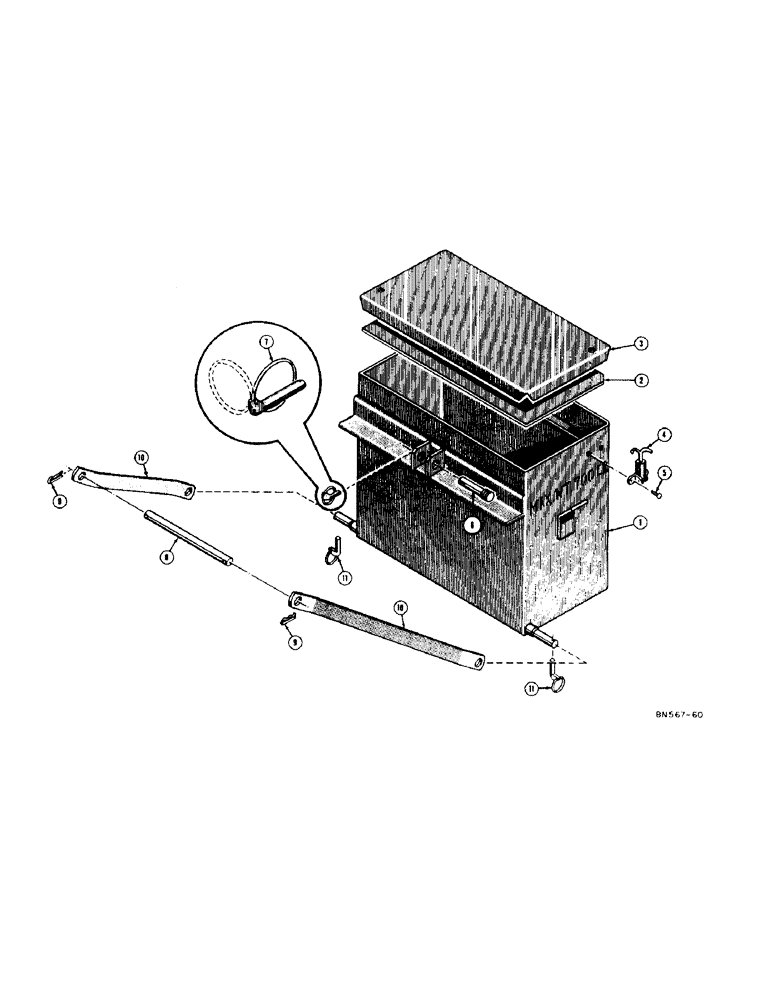

Запчасти Case 320 (130) - REAR WEIGHT BOX (WITH EAGLE HITCH) (05) - UPPERSTRUCTURE CHASSIS

1

DR10591

BOX - weight (700 lb. capacity)

1шт.

2

DR10587

SHELF - tool box

1шт.

3

DR10589

LID - weight box

1шт.

4

O3771AB

X

CATCH - lid

2шт.

5

45-35

RIVET - button head, 3/16" x 5/16"

4шт.

6

V14209

X

PIN - mast, Eagle Hitch

1шт.

7

SV2433

X

PIN AND RING - retaining, mast pin

1шт.

8

D21654

SHAFT - pivot, turnbuckle

1шт.

95-10

WASHER,5/8"

- standard wrot (3/4") Not shown

2шт.

9

VC1419

X

PIN - hair pin cotter

2шт.

10

D21653

STRAP - support

2шт.

11

SV2433

X

PIN AND RING - retaining, support strap

2шт.
