(130[1]) - VALVE GUARDS (OPTIONAL) (UP TO SERIAL NO. 3003851)

Запчасти Case 320 (130[1]) - VALVE GUARDS (OPTIONAL) (UP TO SERIAL NO. 3003851) (05) - UPPERSTRUCTURE CHASSIS

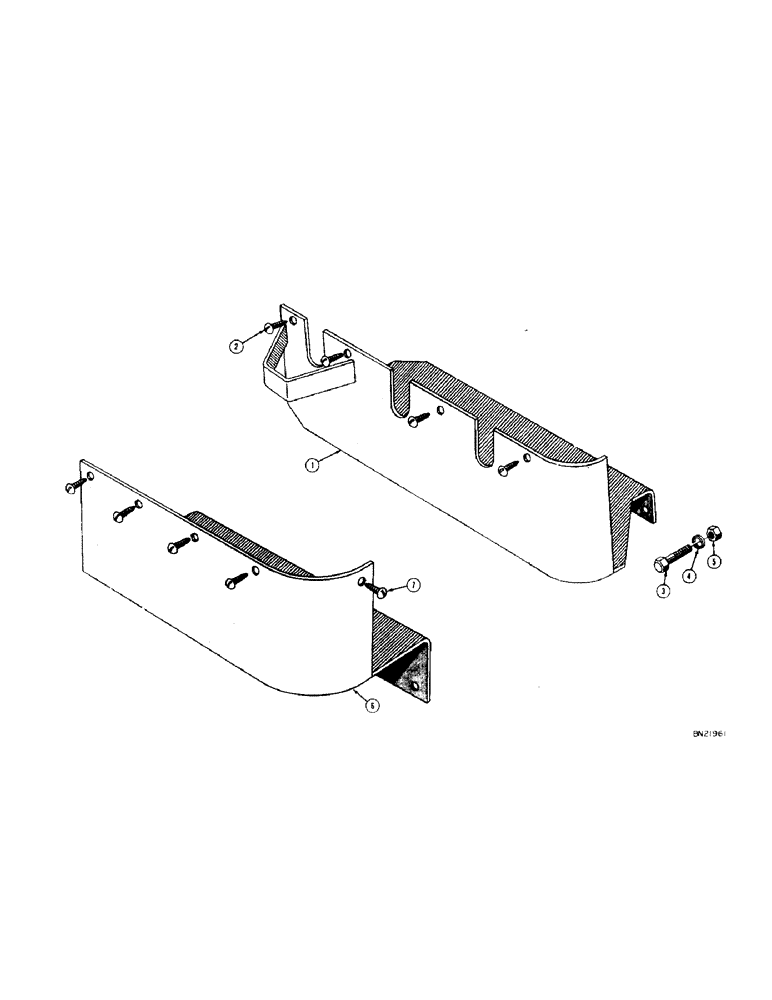

Схема запчастей Case 320 - (130[1]) - VALVE GUARDS (OPTIONAL) (UP TO SERIAL NO. 3003851) (05) - UPPERSTRUCTURE CHASSIS
2
1
6
4
7
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

33984

SHAFT

GUARD - valve (Loader models only)

1шт.

2

47735

SCREW - self tapping

4шт.

3

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

2шт.

6

34137

GUARD - valve (Dozer models only)

1шт.

7

47735

SCREW - self tapping

5шт.
