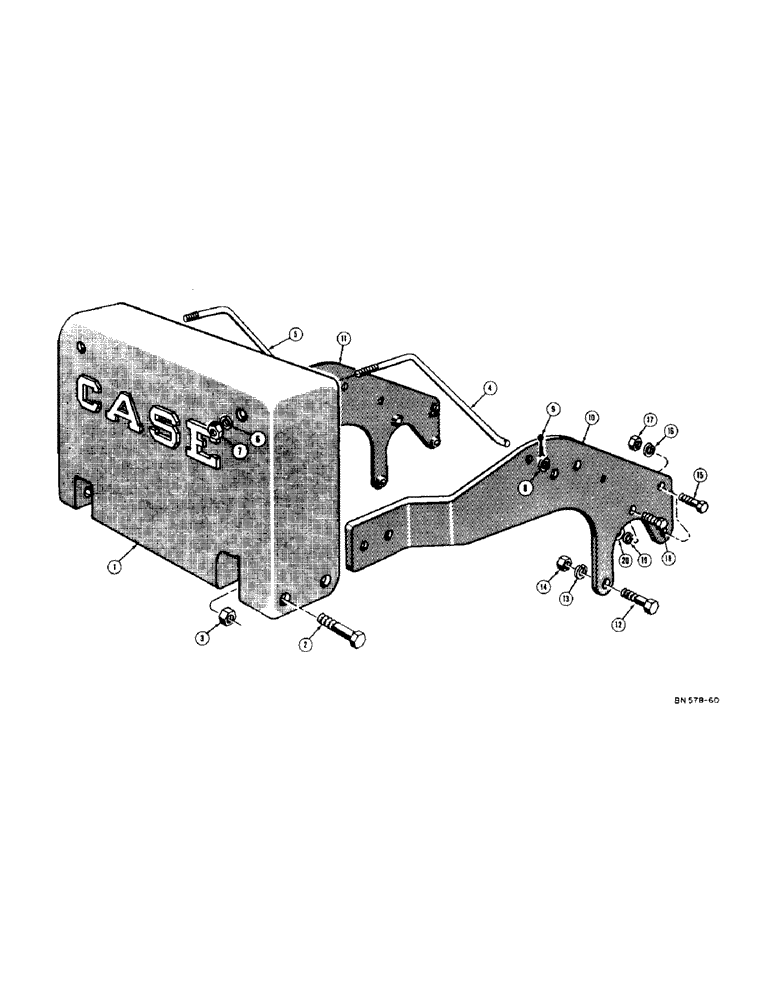

Запчасти Case 320 (128) - REAR COUNTERWEIGHT (WITH P.T.O. AND BELT PULLEY) (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
31112
O-RING
COUNTERWEIGHT - rear, 1400 lb.
1шт.
2
14-1688
BOLT,Hex, 1" - 14 x 5-1/2", Gr 5
HHCS - 1 - 14 NF x 5-1/2
4шт.
3
131-370
LOCK NUT
NUT - lock (1" - 14 NF)
4шт.
4
D21392
ROD - support, R.H.
1шт.
5
D21393
ROD - support, L.H.
1шт.
6
195-41
WASHER,5/8"
2шт.
8
95-10
WASHER,5/8"
- standard wrot () 5/8"
2шт.
9
132-91
COTTER PIN,3/16" x 1"
Pin, Split (Cotter), 3/16" x 1"
2шт.
10
D21263
ARM - counterweight support, R.H.
1шт.
11
D21264
ARM - counterweight support, L.H.
1шт.
12
14-1244
BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5
HHCS - 3/4 - 16 NF x 2-3/4
2шт.
13
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
14
25-1712
NUT,3/4"-16, G5, Hvy
- hex., heavy (3/4" - 16 NF)
2шт.
15
14-1044
BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5
HHCS - 5/8 - 18 NF x 2-3/4
4шт.
17
25-1110
NUT,5/8"-18, G5
- hex. (5/8 - 18 NF)
4шт.
18
14-844
BOLT,Hex, 1/2" - 20 x 2-3/4", Gr 5
HHCS - 1/2 - 20 NF x 2-3/4
2шт.
19
92-8
LOCK WASHER,1/2"
2шт.
20
25-118
NUT,1/2"-20, G5
- hex. (1/2 - 20 NF)
2шт.
1
31633
BOX- ballast, rear weight box (optional)
1шт.
2
14-1028
BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5
Rear weight box (optional) Hex, 5/8"-18 x 1 3/4", G5
2шт.
4
25-1110
NUT,5/8"-18, G5
- hex. (5/8) - 18 NF), rear weight box (optional)
2шт.
5
18626
DOOR - sliding, rear weight box (optional)
1шт.
6
34387
SPACER
ROD - holding, rear weight box (optional)
2шт.
7
25-118
NUT,1/2"-20, G5
- hex. (1/2 - 20 NF), rear weight box (optional)
4шт.
8
O2701AB
X
END - yoke, adjustable, rear weight box (optional)
4шт.
9
O2499AB1
X
PIN - yoke, rear weight box (optional)
4шт.
10
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), , Rear weight box (optional) 1/8" x 1"
4шт.
Выбрано товаров: 30
