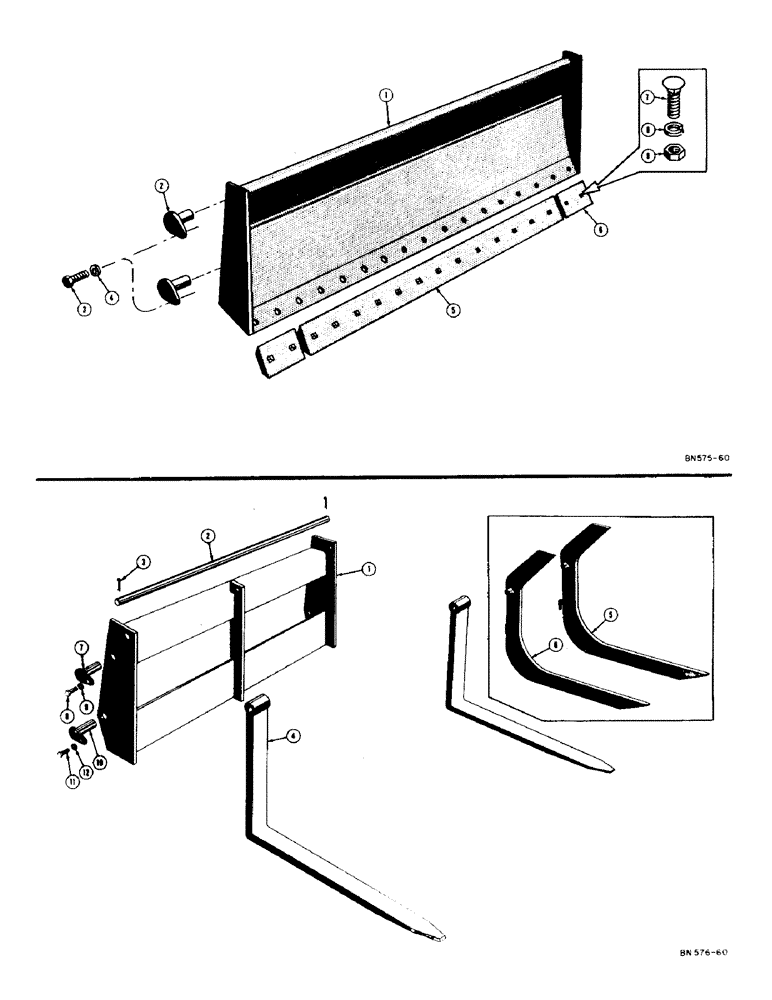

Запчасти Case 320 (124) - BULL DOZER BLADE (MOUNTS ON LOADER ARMS) (05) - UPPERSTRUCTURE CHASSIS

D10356M

BLADE - Bulldozer (Machinery Item)

1шт.

1

NSS

NOT SOLD SEPARAT

MOLDBOARD - Bulldozer

1шт.

2

31109

PIN ASSY.

PIN - mounting, moldboard to main arm (Also moldboard to dump arm)

4шт.

3

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

4шт.

4

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

D23740

BUSHING

- lockhead pin (Not shown)

4шт.

5

NLS

NO LONGER SERVICED

BLADE - cutting, center

1шт.

6

38150

EDGE

BLADE - cutting, end

2шт.

7

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow, no. 3 head (1/2" - 13 NC x 1-3/4")

18шт.

8

92-8

LOCK WASHER,1/2"

18шт.

9

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

18шт.

1

D21800

SUPPORT - fork, logging & pallet

1шт.

2

D21799

SHAFT - fork support, logging & pallet

1шт.

3

132-154

COTTER PIN,1/4" x 2"

PIN - cotter, 1/4" x 1/2", logging & pallet forks

2шт.

4

D21646

FORK - pallet lift, logging

2шт.

5

D21947

FORK - logging, L.H., pallet

1шт.

6

D21948

FORK - logging, R.H., pallet

1шт.

7

38549

SHIM

PIN - dump arm to fork support, logging & pallet

2шт.

8

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1, logging & pallet forks

2шт.

9

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, , Logging & pallet forks Int Tooth, 1/2"

2шт.

D23740

BUSHING

- lockhead pin (Not shown), logging & pallet forks

2шт.

10

31109

PIN ASSY.

PIN - main arm to fork support, logging & pallet

2шт.

11

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1, logging & pallet forks

2шт.

12

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, , Logging & pallet forks Int Tooth, 1/2"

2шт.

D23740

BUSHING

- lockhead pin (Not shown), logging & pallet forks

2шт.
