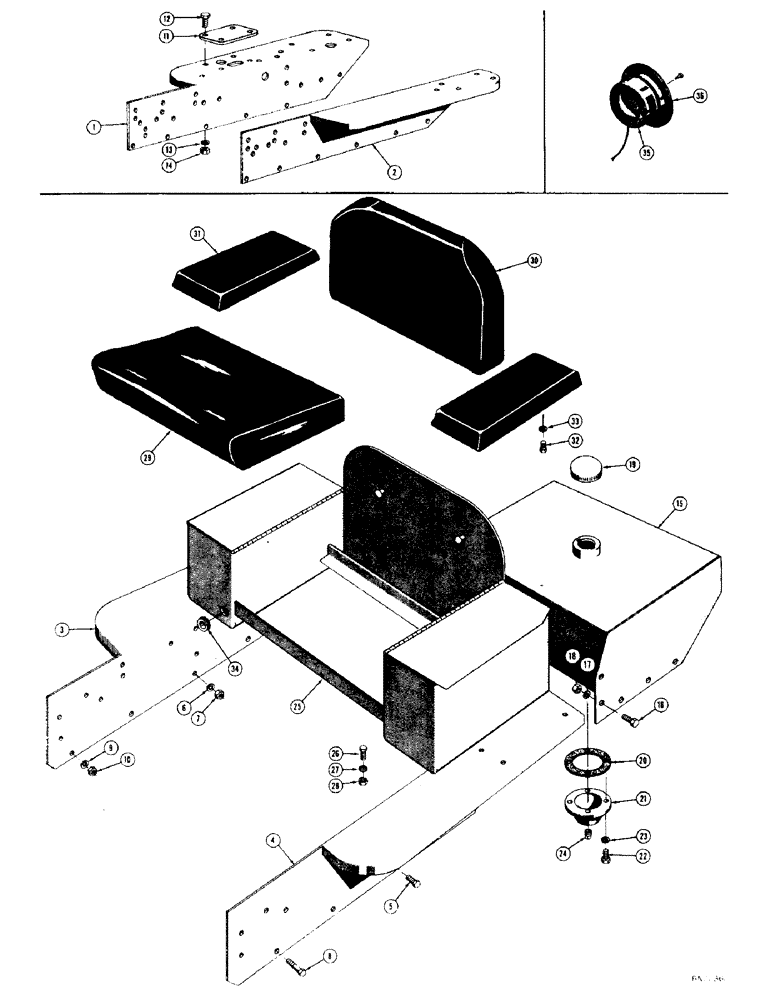

Запчасти Case 320 (082) - FENDERS, FUEL TANK, SEAT, AND CUSHIONS (05) - UPPERSTRUCTURE CHASSIS

1

31576

FENDER - R.H., Loader models only (Up to serial no. 3003851)

1шт.

38747

FENDER - R.H., Loader models only (Serial no. 3003851 and after)

1шт.

2

31577

FENDER - L.H., Loader models only (Up to serial no. 3003851)

1шт.

38746

DECAL

FENDER - L.H., Loader models only (Serial no. 3003851 and after)

1шт.

3

D21124

FENDER - R.H., 36" gauge tractor

1шт.

32396

FENDER - R.H., standard (Up to serial no. 3003851)

1шт.

38489

HYD CONNECTOR

FENDER - R.H., standard (Serial no. 3003851 and after)

1шт.

4

D21125

FENDER - L.H., 36" gauge tractor

1шт.

33093

PIN

FENDER - L.H., standard (Up to serial no. 3003851)

1шт.

38488

HYD CONNECTOR

FENDER - L.H., standard (Serial no. 3003851 and after)

1шт.

5

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

4шт.

8

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20 NF x 1-3/4

3шт.

9

92-8

LOCK WASHER,1/2"

3шт.

10

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

3шт.

11

30855

PLATE - filler

1шт.

12

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

4шт.

13

92-5

LOCK WASHER,5/16"

4шт.

14

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

15

13635

SCREW

TANK - fuel, 8 gal. (Up to serial no. 3003090)

1шт.

38802

WASHER

TANK - fuel, 8 gal. (Original equipment - serial no. 3003090 and after) Use D24866

1шт.

When installing replacement fuel tank on crawler tractors, serial no. 3003090 and after, it may be necessary to relocate angle braces on seat.

1шт.

D24866

TANK - fuel, 10 gal. (Replacement - serial no. 3003090 and after)

1шт.

When installing replacement fuel tank on crawler tractors, serial no. 3003090 and after, it may be necessary to relocate angle braces on seat.

1шт.

16

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8 - 24 NF x 7/8

10шт.

17

92-6

LOCK WASHER,3/8"

10шт.

18

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

10шт.

19

CASE10731

FILLER CAP

CAP - filler, fuel tank

1шт.

20

35621

GASKET

- drain cover

1шт.

21

34574

BUSHING,35.09mm ID x 44.5mm OD x 76.2mm L

COVER - drain, fuel tank

1шт.

22

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

4шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" NPT square head

1шт.

25

13640

SEAT - (Up to serial no. 3003090)

1шт.

D21051

SEAT - (Serial no. 3003090 and after)

1шт.

26

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8 - 24 NF x 7/8

8шт.

27

92-6

LOCK WASHER,3/8"

8шт.

28

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

8шт.

29

D27691

X

CUSHION - seat

1шт.

30

D27690

CUSHION - seat back

1шт.

31

D27693

ARMREST

CUSHION - arm rest

2шт.

32

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

34

49561

GROMMET,1/4" ID x 7/16" Groove Dia

- rubber

1шт.

35

30902

LIGHT - tail, 6 volt

1шт.

33685

BULB - tail light (Not shown)

1шт.

35

30903

LIGHT - tail, 12 volt

1шт.

33686

BULB

- tail light (Not shown)

1шт.

36

187-29

SCREW

- self tapping, tail light

3шт.
