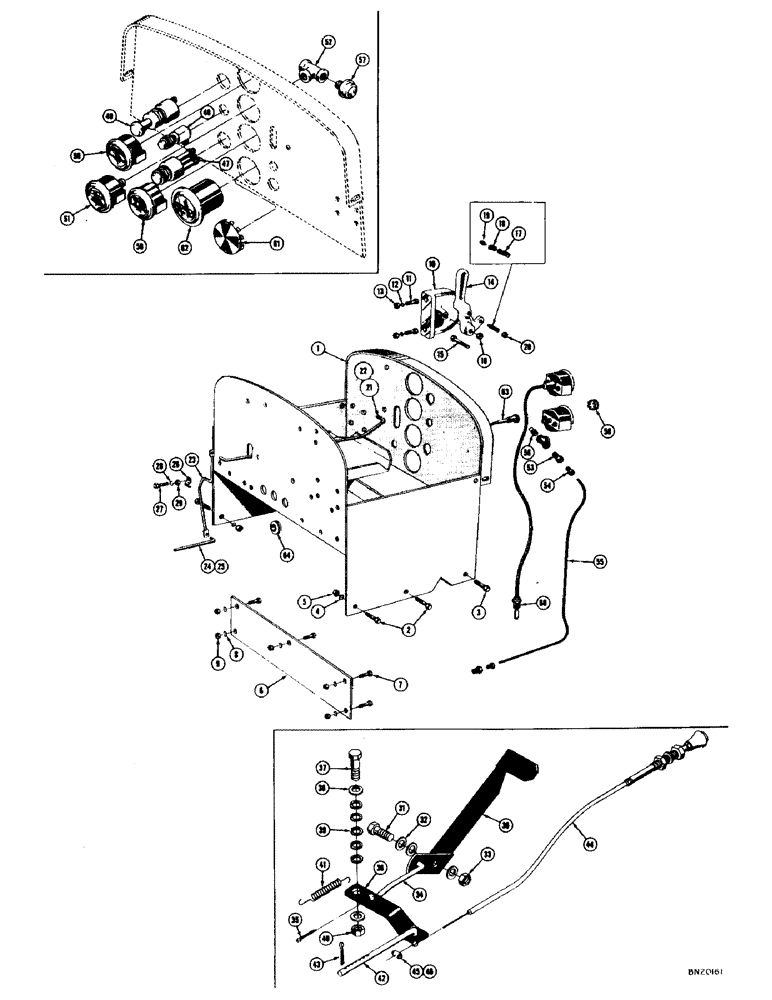

Запчасти Case 320 (044) - COWL, DASH, THROTTLE CONTROL AND INSTRUMENT PANEL, (UP TO SN 3003851) (05) - UPPERSTRUCTURE CHASSIS

1

33669

SCREW

COWL AND DASH

1шт.

2

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

4шт.

3

78-612

SCREW - machine, truss head (3/8" - 24 NF x 3/4")

2шт.

4

92-6

LOCK WASHER,3/8"

6шт.

5

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

6шт.

6

33673

BRUSH

PLATE - center

1шт.

7

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

5шт.

8

92-6

LOCK WASHER,3/8"

5шт.

9

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

5шт.

10

30915

PROTRACTOR - throttle control linkage (up to serial no. 3001137)

1шт.

11

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8 - 24 NF x 1-1/4, throttle control linkage (up to serial no. 3001137)

2шт.

12

92-6

LOCK WASHER,3/8"

throttle control linkage (up to serial no. 3001137) 3/8"

2шт.

13

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF), throttle control linkage (up to serial no. 3001137)

2шт.

14

30916

LEVER - throttle control, throttle control linkage (up to serial no. 3001137)

1шт.

15

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Throttle control linkage (up to S/N 3001137) Hex, 3/8"-16 x 2 1/4", G5

1шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC), throttle control linkage (up to serial no. 3001137)

1шт.

17

30917

CONTAINER - poppet, throttle control linkage (up to serial no. 3001137)

1шт.

18

30918

NUT

SPRING - poppet, throttle control linkage (up to serial no. 3001137)

1шт.

19

30919

POPPET, throttle control linkage (up to serial no. 3001137)

1шт.

20

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex. jam (1/2" - 20 NF), throttle control linkage (up to serial no. 3001137)

1шт.

21

30937

ROD - control lever to crank, throttle control linkage (up to serial no. 3001137)

1шт.

22

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Throttle control linkage (up to S/N 3001137) 3/32" x 5/8"

2шт.

23

36133

CRANK - throttle control linkage (up to serial no. 3001137)

1шт.

24

36132

TOY

LINK - crank to governor control rod, throttle control linkage (up to serial no. 3001137)

1шт.

25

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Throttle control linkage (up to S/N 3001137) 3/32" x 5/8"

4шт.

26

49788

WINDGUARD

CLAMP - throttle crank, control linkage (up to serial no. 3001137)

1шт.

27

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

HHCS - 1/4 - 28 NF x 3/4, throttle control linkage (up to serial no. 3001137)

1шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Throttle control linkage (up to S/N 3001137) 1/4"

1шт.

29

25-114

NUT,1/4"-28, G5

- hex. (1/4 - 28 NF), throttle control linkage (up to serial no. 3001137)

1шт.

30

37936

PEDAL - accelerator, throttle control linkage (serial no. 3001137 up to serial no. 3003851)

1шт.

31

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1, throttle control linkage (serial no. 3001137 up to serial no. 3003851)

1шт.

32

95-6

WASHER,3/8"

- standard wrot (), throttle control linkage (serial no. 3001137 up to serial no. 3003851) 3/8"

3шт.

33

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8" - 24 NF), throttle control linkage (serial no. 3001137 up to serial no. 3003851)

1шт.

34

37937

LINK - pedal to pivot lever, throttle control linkage (serial no. 3001137 up to serial no. 3003851)

1шт.

35

132-25

COTTER PIN,3/32" x 5/8"

PIN - cotter, 5/32" x 5/8", throttle control linkage (serial no. 3001137 up to serial no. 3003851)

2шт.

36

37938

LEVER - pivot, throttle control linkage (serial no. 3001137 up to serial no. 3003851)

1шт.

37

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8 - 24 NF x 1-1/2, throttle control linkage (serial no. 3001137 up to serial no. 3003851)

1шт.

38

95-6

WASHER,3/8"

- standard wrot (), throttle control linkage (serial no. 3001137 up to serial no. 3003851) 3/8"

2шт.

39

92-6

LOCK WASHER,3/8"

throttle control linkage (serial no. 3001137 up to serial no. 3003851) 3/8"

5шт.

40

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8" - 24 NF), throttle control linkage (serial no. 3001137 up to serial no. 3003851)

1шт.

41

101EB

SPRING - return, throttle control linkage (serial no. 3001137 up to serial no. 3003851)

1шт.

42

38290

PIN

LINK - pivot lever to governor control rod, throttle control linkage (serial no. 3001137 up to serial no. 3003851)

1шт.

43

132-25

COTTER PIN,3/32" x 5/8"

PIN - cotter, 5/32" x 5/8", throttle control linkage (serial no. 3001137 up to serial no. 3003851)

4шт.

44

38271

CABLE

THROTTLE - hand, control linkage (serial no. 3001137 up to serial no. 3003851)

1шт.

R3679

KIT - control shaft and plunger (Not shown), throttle control linkage (serial no. 3001137 up to serial no. 3003851)

1шт.

R18446

SCREW - spring retainer, throttle control linkage (serial no. 3001137 up to serial no. 3003851)

1шт.

R18447

RETAINER - spring, throttle control linkage (serial no. 3001137 up to serial no. 3003851)

1шт.

R18449

SHAFT AND PLUNGER, throttle control linkage (serial no. 3001137 up to serial no. 3003851)

1шт.

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

BALL - throttle control linkage (serial no. 3001137 up to serial no. 3003851)

1шт.

R18448

SPRING - throttle control linkage (serial no. 3001137 up to serial no. 3003851)

1шт.

R3680

KIT - knob, (Not shown), throttle control linkage (serial no. 3001137 up to serial no. 3003851)

1шт.

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex. jam, plated (3/8" - 24 NF), throttle control linkage (serial no. 3001137 up to serial no. 3003851)

2шт.

NSS

NOT SOLD SEPARAT

KNOB - throttle control linkage (serial no. 3001137 up to serial no. 3003851)

1шт.

NSS

NOT SOLD SEPARAT

WASHER - knob, throttle control linkage (serial no. 3001137 up to serial no. 3003851)

1шт.

192-219

WASHER - lock, extra heavy (7/8"), throttle control linkage (serial no. 3001137 up to serial no. 3003851)

1шт.

45

34823

CHAIN LINK

STOP - pivot, hand throttle, control linkage (serial no. 3001137 up to serial no. 3003851)

1шт.

46

178-801

SET SCREW,Hex Soc, #10-24 x 1/4"

SCREW - set, pivot stop (No. 10 - 24 NC x 1/4"), throttle control linkage (serial no. 3001137 up to serial no. 3003851)

1шт.

47

10868

LOCKSWITCH - ignition, instrument panel (up to s/n 3003851)

1шт.

48

D23216

SWITCH

- push button starter, instrument panel (up to s/n 3003851)

1шт.

49

10855

X

SWITCH - light (Optional equipment), instrument panel (up to s/n 3003851)

1шт.

50

49864

X

BUTTON - plug, light switch hole (1" dia.), instrument panel (up to s/n 3003851)

1шт.

51

D26894

X

GAUGE - oil pressure, instrument panel (up to s/n 3003851)

1шт.

52

221-421

TEE,1/8" NPT

- pipe, , instrument panel (up to s/n 3003851) 1/8" NPT

1шт.

53

37389

SPRING

CONNECTOR - tube, brass, instrument panel (up to s/n 3003851)

2шт.

54

37388

SPRING

NUT - tube, brass, instrument panel (up to s/n 3003851)

2шт.

55

G10972

LINE

- oil pressure, instrument panel (up to s/n 3003851)

1шт.

56

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" NPT square head, instrument panel (up to s/n 3003851)

1шт.

57

D28798

SWITCH

- oil pressure (Used with hour meter), instrument panel (up to s/n 3003851)

1шт.

58

10860

X

AMMETER, instrument panel (up to s/n 3003851)

1шт.

59

11284

ELECTRICAL GAUGE

GAUGE - temperature, instrument panel (up to s/n 3003851)

1шт.

60

D26015

FITTING

ADAPTER - temperature gauge heat bulb, instrument panel (up to s/n 3003851)

1шт.

61

30842

SPARE PART

BUTTON - plug, hour meter hole (2" dia.), instrument panel (up to s/n 3003851)

1шт.

62

33481

X

METER - engine hour, 6 - 12 volt (Optional equipment), instrument panel (up to s/n 3003851)

1шт.

54772R2

TERMINAL CONNECTOR

END - wire, eyelet type (Hour meter and pressure switch wires) Not shown, instrument panel (up to s/n 3003851)

3шт.

63

10856

CONTROL - choke, carburetor, instrument panel (up to s/n 3003851)

1шт.

10858

LOOM - protective (3/16" O.D. x 32") Not shown, instrument panel (up to s/n 3003851)

1шт.

195-5

WASHER

- plain (1/8" I.D. x 5/16" O.D. x 1/32" thick) Not shown, instrument panel (up to s/n 3003851)

1шт.

64

49562

GROMMET,11/16" ID x 1" Groove Dia

- rubber, instrument panel (up to s/n 3003851)

1шт.
