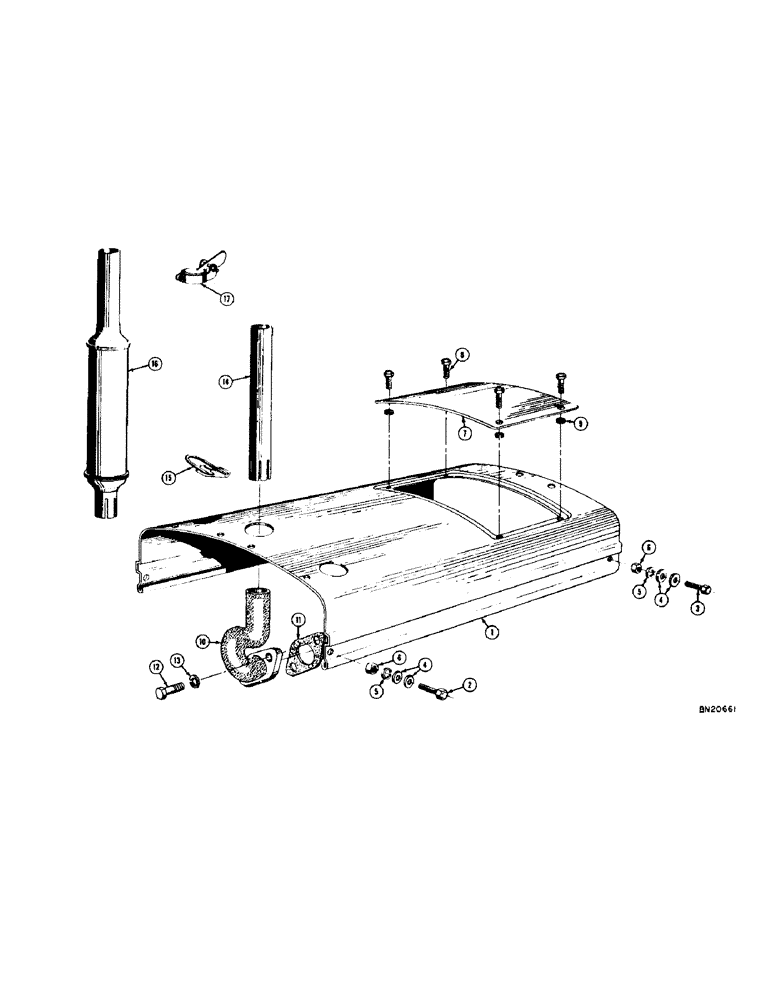

Запчасти Case 320 (042) - HOOD AND EXHAUST SYSTEM (05) - UPPERSTRUCTURE CHASSIS

1

36134

HOOD - engine

1шт.

2

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

4шт.

3

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

HHCS - plated (3/8" - 24 NF x 3/4")

6шт.

4

195-104

WASHER,3/8"

- plain, plated (7/16" I.D. x 1" O.D. x 5/64" thick)

20шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

6

129-123

NUT,3/8"-24, G5

10шт.

7

GI33522

CLIP

COVER - access, instrument panel back

1шт.

37383

COVER - access, instrument panel back (Loader models only) Up to serial no. 3003851

1шт.

D20370

COVER - access, instrument panel back (Loader models only) Serial no. 3003851 and after

1шт.

8

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

HHCS - plated (1/4" - 28 NF x 1/2")

2шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

10

G1197

ELBOW

- exhaust outlet

1шт.

11

G11201

GASKET

- exhaust elbow

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

35827

GASKET

PIPE - exhaust

1шт.

15

G13184

CLAMP

- exhaust pipe and muffler

1шт.

16

VTA2811

X

MUFFLER - exhaust (Optional)

1шт.

17

G45048

CAP

- rain, exhaust (Optional)

1шт.
