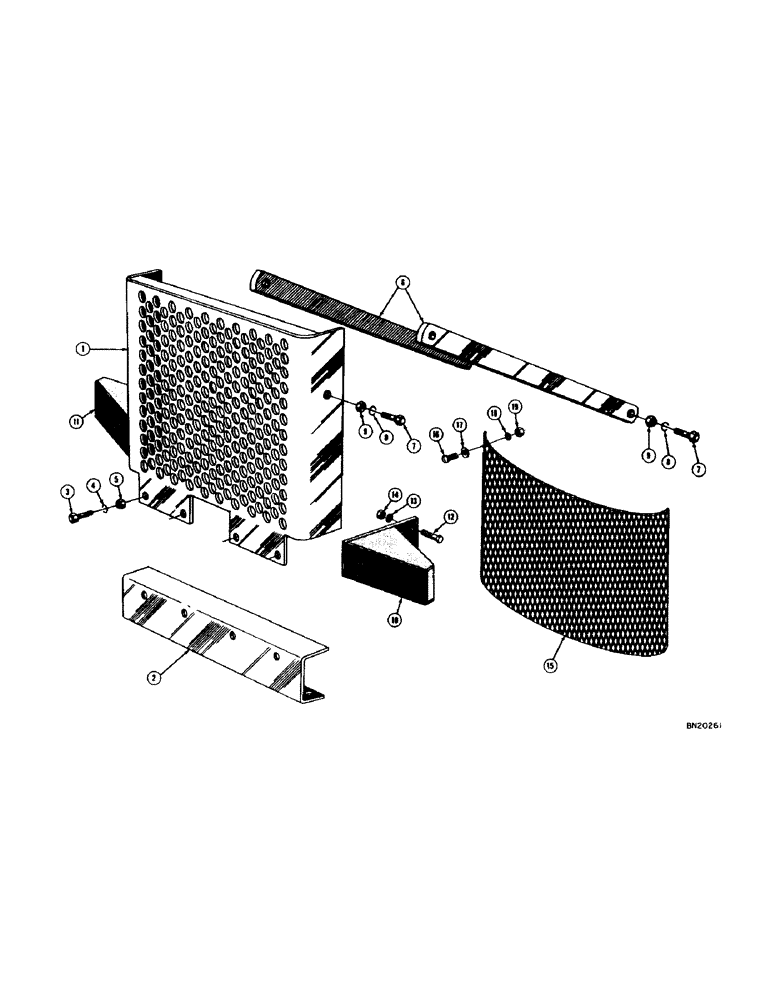

Запчасти Case 320 (040) - RADIATOR GUARD (OPTIONAL EQUIPMENT) (05) - UPPERSTRUCTURE CHASSIS

1

30988

GUARD - radiator

1шт.

2

31769

SPACER

BUMPER

1шт.

3

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

4шт.

6

30995

BRACE - radiator guard

2шт.

7

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

4шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

4шт.

10

37796

SEAL

EXTENSION - bumper, L.H.

1шт.

11

37797

LINE

EXTENSION - bumper, R.H.

1шт.

12

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2

12шт.

13

92-8

LOCK WASHER,1/2"

12шт.

14

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

12шт.

15

D11170M

SCREEN - grille

1шт.

16

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- machine, round head (1/4" - 20 NC x 1/2")

8шт.

17

95-4

WASHER,1/4"

- standard wrot () 1/4"

8шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

19

25-104

NUT,1/4"-20, G5

8шт.
