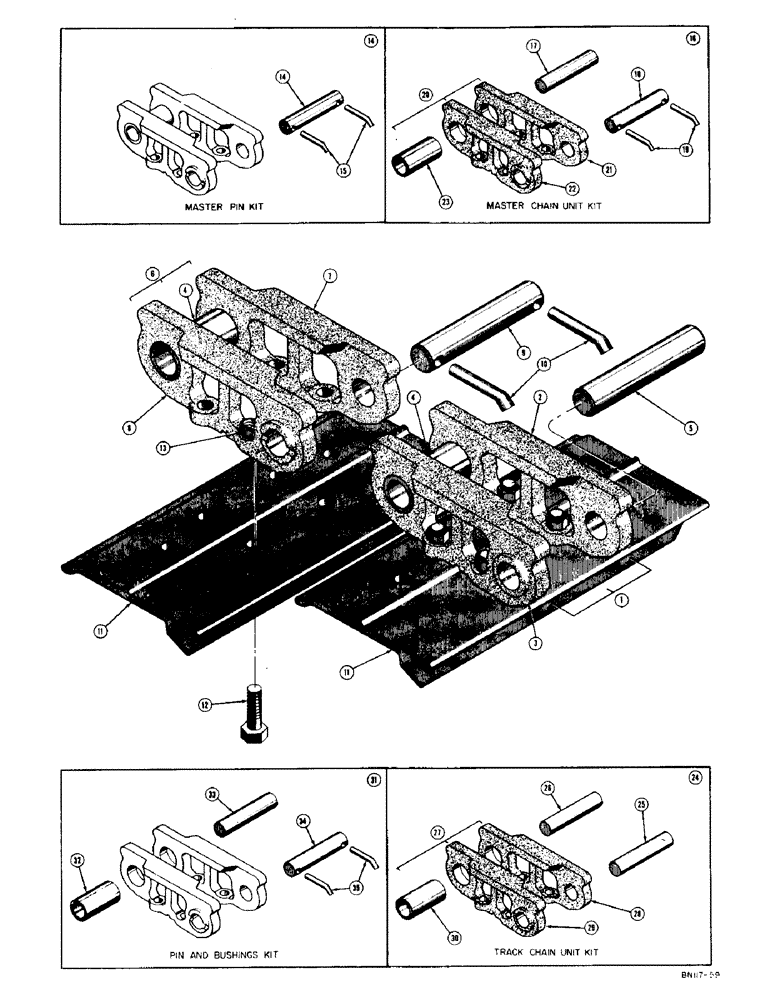

Запчасти Case 320 (078) - TRACK CHAIN (04) - UNDERCARRIAGE

5481

CHAIN - complete, 15 unit

4шт.

1

34571

KIT

UNIT - track chain (See D21014)

14шт.

2

30638

X

LINK - chain, R.H. (See D21014)

1шт.

3

R41049

DRAG LINK

LINK - chain, L.H. (See D21014)

1шт.

4

NLS

NO LONGER SERVICED

- track chain (See D21013, D21014, and D21015)

1шт.

5

32831

PIN

- track, standard (See D21014; also items 17 and 33)

14шт.

6

34589

X

UNIT - master, track chain (See D21013)

1шт.

7

R41050

LINK

- master, R.H. (See D21013)

1шт.

8

33286

LINK

- master, L.H. (See D21013)

1шт.

4

32830

BUSHING

- track chain (See D21013, D21014, and D21015)

1шт.

9

D21012

PIN

- master (See item 14)

1шт.

10

CASCASCASCASCAS32995

PIN - lock, master pin

2шт.

11

32849

PLATE - grouser, standard (11") see figure 80 for other track plates

60шт.

12

46944

BOLT,Hex, 7/16" - 20 x 1 1/2", Gr 8

HHCS - special (7/16" - 20 NF x 1-1/2")

240шт.

13

25-277

NUT - hex., special (7/16" - 20 NF)

240шт.

14

D21012

PIN

KIT - master pin

4шт.

15

CASCASCASCASCAS32995

PIN - lock, master pin kit

2шт.

16

D21013

KIT

- track master unit, chain

4шт.

17

32836

PIN

- track, service (.003" oversize), master chain unit kit

1шт.

18

D21012

PIN

- master, chain unit kit

1шт.

19

CASCASCASCASCAS32995

PIN - lock, master pin, chain unit kit

2шт.

20

34589

X

UNIT - master, track chain, kit

1шт.

21

R41050

LINK

- master, R.H., chain unit kit

1шт.

22

33286

LINK

- master, L.H., chain unit kit

1шт.

23

NLS

NO LONGER SERVICED

- track chain, master unit kit

1шт.

24

D21014

KIT

- track chain unit

56шт.

25

32831

PIN

- track, standard, chain unit kit

1шт.

26

32836

PIN

- track, service (.003" oversize), chain unit kit

1шт.

27

34571

KIT

UNIT - track chain, kit

1шт.

28

30638

X

LINK - chain, R.H., track unit kit

1шт.

29

R41049

DRAG LINK

LINK - chain, L.H., track unit kit

1шт.

30

32830

BUSHING

- track chain unit kit

1шт.

31

D21015

KIT - pin and bushing

1шт.

32

NLS

NO LONGER SERVICED

- track chain, pin kit

60шт.

33

32836

PIN

- track, service (.003" oversize), pin & bushing kit

56шт.

34

D21012

PIN

- master, bushing kit

4шт.

35

CASCASCASCASCAS32995

PIN - lock, master pin, bushing kit

2шт.
