Запчасти Case 320 (076) - SIDE PLATE, PIVOT BAR, AND DRAWBAR GUIDE (04) - UNDERCARRIAGE

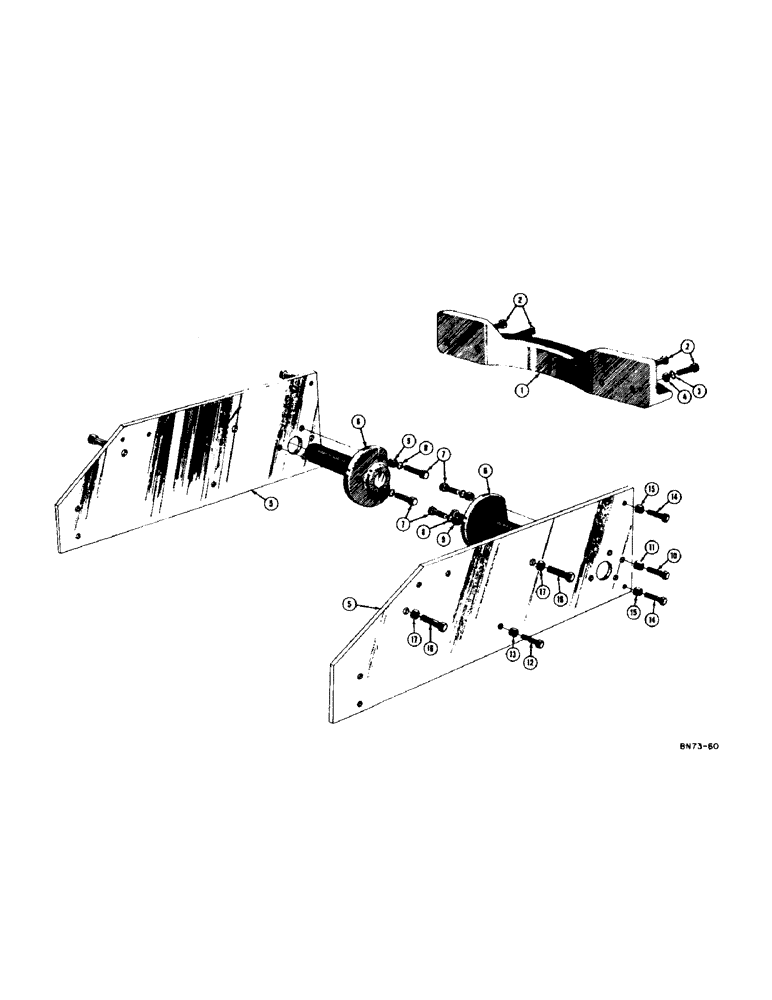

Схема запчастей Case 320 - (076) - SIDE PLATE, PIVOT BAR, AND DRAWBAR GUIDE (04) - UNDERCARRIAGE
4
4
17
10
17
15
5
7
14
18
5
9
1
14
9
15
12
6
2
3
8
13
7
2
11
16
9

Артикул

Название

Примечание

Количество

1

32419

GUIDE - drawbar, 42" gauge tractor

1шт.

13103

GUIDE - drawbar, 48" gauge and wider tractors

1шт.

2

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

4шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF)

4шт.

1

32662

RICE TOOTH

GUIDE - drawbar, 36" gauge tractor

1шт.

2

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

HHCS - 3/4 - 16 NF x 2

4шт.

3

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

4

25-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16 NF)

4шт.

5

33110

HYDRAULIC VALVE

PLATE - side, 42" gauge and wider tractors

2шт.

32605

PLATE - side, 36" gauge tractor

2шт.

6

D27542

BAR - pivot

2шт.

7

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS - 3/4 - 16 NF x 2-1/2

6шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

9

25-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16 NF)

6шт.

10

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

HHCS - 5/8 - 18 NF x 2-1/2

2шт.

11

231-46110

LOCK NUT,5/8"-18, GB

NUT - lock (5/8" - 18 NF)

2шт.

12

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - 3/4 - 16 NF x 2-3/4

2шт.

13

231-46112

LOCK NUT,3/4"-16, GB

NUT - hex. (3/4" - 16 NF)

2шт.

14

33046

BOLT - body fit

4шт.

15

231-46110

LOCK NUT,5/8"-18, GB

NUT - lock (5/8" - 18 NF)

4шт.

16

33047

BOLT,Hex, 1" - 14 x 3 3/32"

- body fit

4шт.

17

232-46116

LOCK NUT,1"-14, GC

NUT - lock (1" - 14 NF)

4шт.

Выбрано товаров: 23
