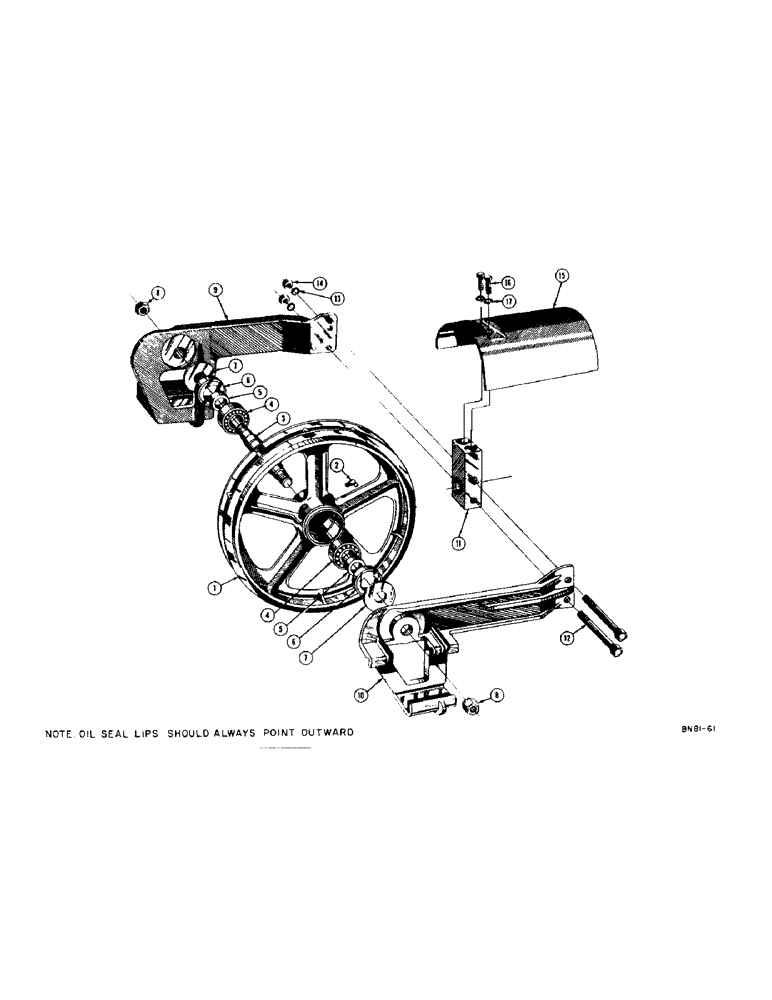

Запчасти Case 320 (070) - IDLER WHEEL (04) - UNDERCARRIAGE

1

32065

FRONT IDLER

HUB - idler wheel

2шт.

2

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING - grease, straight (1/4" NPT)

2шт.

5926

X

KIT - idler wheel

2шт.

3

32068

SHAFT

- idler wheel

1шт.

4

O1720AB

BEARING

- ball

1шт.

5

32051

SPACER

- bearing

1шт.

6

D29138

OIL SEAL

SEAL - oil, idler wheel

1шт.

7

30704

BEARING COVER

- bearing

1шт.

8

131-370

LOCK NUT

NUT - lock (1" - 14 NF)

1шт.

9

32066

BRACKET - idler wheel, R.H.

2шт.

10

32067

BRACKET - idler wheel, L.H.

2шт.

11

32069

BLOCK - spacer

2шт.

12

14-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

HHCS - 1/2 - 20 NF x 3-1/2

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

4шт.

15

D26698

SHIELD

- sliding, R.H.

1шт.

D26697

SHIELD

- sliding, L.H.

1шт.

16

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

HHCS - 3/8 - 24 NF x 1/2

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.
