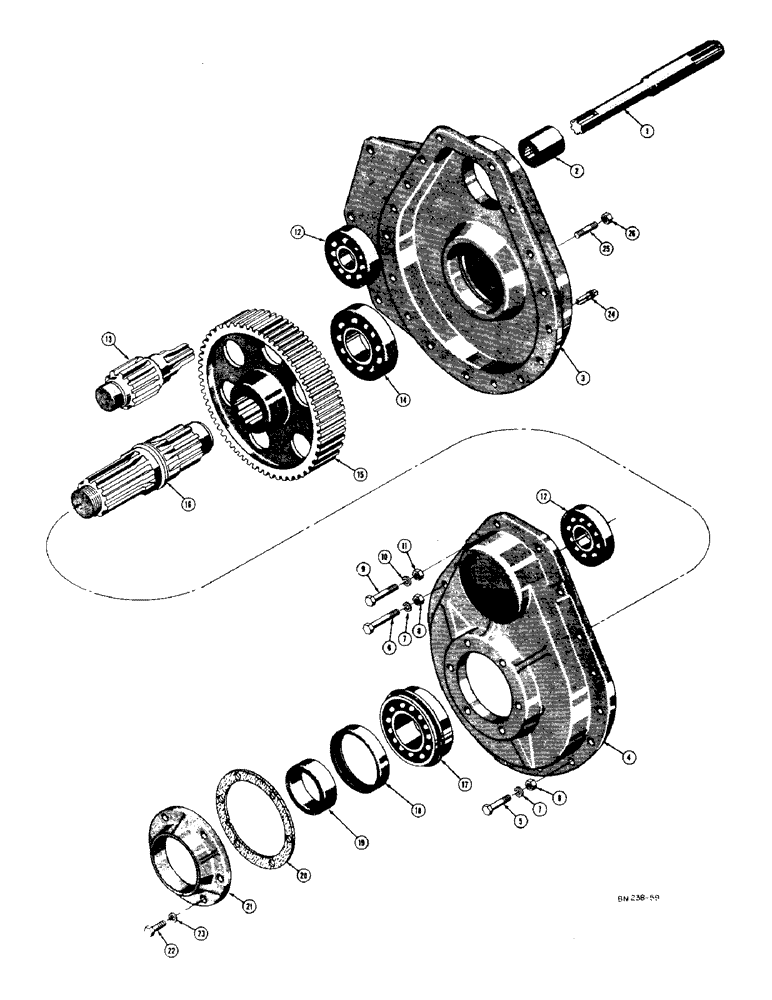

Запчасти Case 320 (066) - FINAL DRIVE AND AXLE SHAFT (03) - TRANSMISSION

1

51200025

SHAFT

- axle, final drive (Standard 48" gauge tractor - 13-3/16")

2шт.

32635

SHAFT - axle, final drive (36" gauge tractor - 7-9/32")

2шт.

11830-420

SHAFT - axle, final drive (42" gauge tractor - 10-3/32")

2шт.

11830-600

SHAFT - axle, final drive (60" gauge tractor - 19-3/16")

2шт.

11830-720

SHAFT - axle, final drive (72" gauge tractor - 25-3/16")

2шт.

2

51200026

COUPLING

- final drive (Standard 48" gauge tractor)

2шт.

32634

COUPLING

- final drive (36" gauge tractor)

2шт.

3

11817

RIVET

HOUSING - final drive, L.H. inner

1шт.

11816

RIVET

HOUSING - final drive, R.H. inner

1шт.

4

NLS

NO LONGER SERVICED

HOUSING - final drive, outer (Use D24658)

1шт.

Before ordering outer housings, check the casting number. When replacing 11823 housing with D24658 housing, it will also be necessary to order the following parts that are listed under D24658: Reference no. 5 thru no. 11.

1шт.

5

14-726

HHCS - 7/16 - 20 NF x 1-5/8 Hex, 7/16"-20 x 1 5/8", G5

24шт.

6

14-740

BOLT,Hex, 7/16" - 20 x 2-1/2"

HHCS - 7/16 - 20 NF x 2-1/2

10шт.

7

92-7

LOCK WASHER,7/16"

34шт.

8

25-117

NUT,7/16"-20, G5

- hex. (7/16 - 20 NF)

34шт.

4

D24658

HOUSING

- final drive, outer

2шт.

Before ordering outer housings, check the casting number. When replacing 11823 housing with D24658 housing, it will also be necessary to order the following parts that are listed under D24658: Reference no. 5 thru no. 11.

1шт.

5

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

HHCS - 7/16 - 12 NC x 1-1/2

18шт.

Before ordering outer housings, check the casting number. When replacing 11823 housing with D24658 housing, it will also be necessary to order the following parts that are listed under D24658: Reference no. 5 thru no. 11.

1шт.

6

13-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

HHCS - 7/16 - 12 NC x 2-1/4

10шт.

Before ordering outer housings, check the casting number. When replacing 11823 housing with D24658 housing, it will also be necessary to order the following parts that are listed under D24658: Reference no. 5 thru no. 11.

1шт.

7

92-7

LOCK WASHER,7/16"

28шт.

Before ordering outer housings, check the casting number. When replacing 11823 housing with D24658 housing, it will also be necessary to order the following parts that are listed under D24658: Reference no. 5 thru no. 11.

1шт.

8

25-107

NUT,7/16"-14, G5

- hex. (7/16 - 12 NC)

28шт.

Before ordering outer housings, check the casting number. When replacing 11823 housing with D24658 housing, it will also be necessary to order the following parts that are listed under D24658: Reference no. 5 thru no. 11.

1шт.

9

D24688

BOLT

BOLT - body fit (1/2" - 13 NC x 2-1/8")

6шт.

Before ordering outer housings, check the casting number. When replacing 11823 housing with D24658 housing, it will also be necessary to order the following parts that are listed under D24658: Reference no. 5 thru no. 11.

1шт.

10

92-8

LOCK WASHER,1/2"

6шт.

Before ordering outer housings, check the casting number. When replacing 11823 housing with D24658 housing, it will also be necessary to order the following parts that are listed under D24658: Reference no. 5 thru no. 11.

1шт.

11

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

6шт.

Before ordering outer housings, check the casting number. When replacing 11823 housing with D24658 housing, it will also be necessary to order the following parts that are listed under D24658: Reference no. 5 thru no. 11.

1шт.

12

40002

BALL BEARING

- ball, final drive pinion

4шт.

13

51200027

SHAFT

PINION - final drive

2шт.

14

40003

BEARING

- ball, drive shaft (Inner)

2шт.

15

CAS11833

GEAR WHEEL

GEAR - final drive

2шт.

16

CAS11853

SHAFT

- drive, final drive

2шт.

17

D14979

BEARING

BEARING - ball, drive shaft (Outer)

2шт.

18

40610

TUBE NUT

SEAL - oil, drive shaft

2шт.

19

51200024

SPACER

- drive shaft

2шт.

20

CAS11828

GASKET

- seal retainer, drive shaft

2шт.

21

11827

RETAINER

- seal, drive shaft

2шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

23

92-6

LOCK WASHER,3/8"

12шт.

24

D21396

PLUG, DRAIN

PLUG - pipe, magnetic (1/2" NPT)

4шт.

25

R29874

STUD

- mounting, final drive

16шт.

26

231-46110

LOCK NUT,5/8"-18, GB

NUT - lock (5/8" - 18 NF)

16шт.
