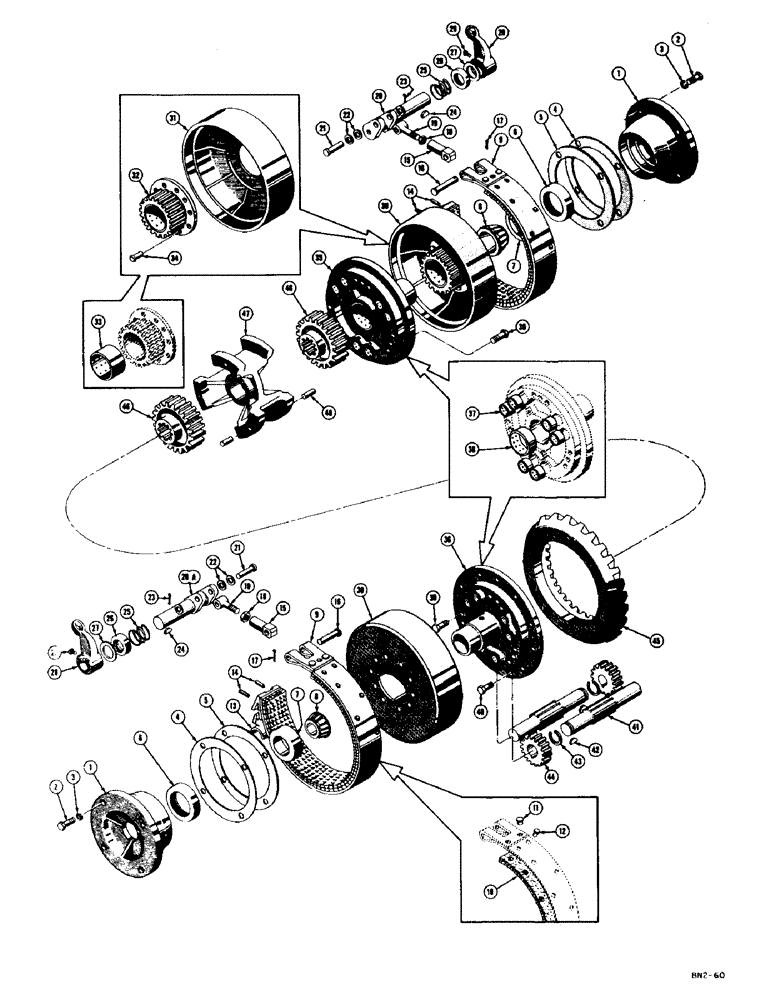

Запчасти Case 320 (060) - DIFFERENTIAL, (SERIAL NO. 3005260 AND AFTER) (03) - TRANSMISSION

D23400

X

TRANSMISSION AND DIFFERENTIAL ASS'Y - complete

1шт.

D20533

DIFFERENTIAL AND DRUM ASS'Y

1шт.

1

11425

CARRIER

- bearing, differential

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

3

92-8

LOCK WASHER,1/2"

8шт.

4

CAS11427

SHIM

- bearing carrier (.005")

1шт.

5

CAS11426

SHIM

- bearing carrier (.010")

1шт.

6

11430

OIL SEAL

SEAL - oil, differential

2шт.

7

VT2100

X

CUP - bearing

2шт.

8

40465

ROLLER BEARING,1.75" ID x 1"

CONE - bearing

2шт.

D26059

KIT - brake band

1шт.

9

NSS

NOT SOLD SEPARAT

BAND, ANCHOR, AND LINING ASS'Y - brake

2шт.

D26057

KIT - brake lining

1шт.

10

NSS

NOT SOLD SEPARAT

LINING - brake band

2шт.

11

D23567

RIVET - brake band

2шт.

12

D26492

RIVET

- brake band lining

38шт.

13

D23012

X

STRUT - brake

2шт.

14

138-39

LOCK PIN,3/32" x 5/8", Slotted

PIN, , Brake strut 3/32" x 5/8", Slotted

4шт.

15

D23382

CLEVIS COUPLING

CLEVIS

2шт.

16

D23384

PIN

- clevis

2шт.

17

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

18

D23383

NUT

- hex., clevis adjusting arm

2шт.

19

D23381

ARM

- clevis adjusting

2шт.

20

D23768

CAM

- brake, R.H.

1шт.

20a

D23767

CAM

- brake, L.H.

1шт.

21

D23384

PIN

- clevis

2шт.

22

D23304

WASHER - clevis pin

6шт.

23

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

24

126-19

WOODRUFF KEY,#11, 3/16" x 7/8"

KEY - Woodruff (No. 11)

2шт.

25

11439

SPRING

- brake cam

2шт.

26

O4243AB

X

SEAL - oil, brake cam

2шт.

27

11440

WASHER

- brake cam

2шт.

28

D23011

LEVER

- outside brake

2шт.

29

D23016

SCREW

- set, brake lever

2шт.

R10831

ELECTRICAL WIRE

LOCK WIRE - brake lever set screw (Not shown)

2шт.

30

D20425

PINION

DRUM, GEAR, AND BUSHING - brake

2шт.

31

NLS

NO LONGER SERVICED

DRUM - brake

1шт.

32

D20426

GEAR

AND BUSHING - brake drum

1шт.

33

11288

BEARING

BUSHING - gear, brake drum

1шт.

34

14934

RIVET

- brake drum

10шт.

35

NLS

NO LONGER SERVICED

HOUSING - differential, R.H.

1шт.

36

11410

HOUSING - differential, L.H.

1шт.

37

CAS11414

HALF-BUSHING

BUSHING - planet pinion

6шт.

38

11415

BEARING

BUSHING - axle shaft gear

1шт.

39

11424

SCREW

- differential center member (7/16" - 14 NC x 1-1/2")

12шт.

R10831

ELECTRICAL WIRE

LOCK WIRE - center member screw (Not shown)

6шт.

40

NLS

NO LONGER SERVICED

SCREW - ring gear (3/8" - 24 NF x 15/16")

12шт.

41

D20422

SHAFT

PINION - planet

6шт.

42

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

6шт.

43

11455

RING, SNAP

SNAP RING - planet gear

6шт.

44

D20421

PLANETARY GEAR

GEAR - planet

6шт.

45

R25584

GEAR WHEEL

GEAR - ring (Replaces 11417)

1шт.

46

D20423

PINION

GEAR - axle shaft

2шт.

47

NLS

NO LONGER SERVICED

HOUSING - differential center member

1шт.

48

CAS

PIN - dowel, differential center member

6шт.

R25584

GEAR WHEEL

COUNTERSHAFT AND BEVEL PINION - not shown (See ref. no. 23, figure 62)

1шт.
