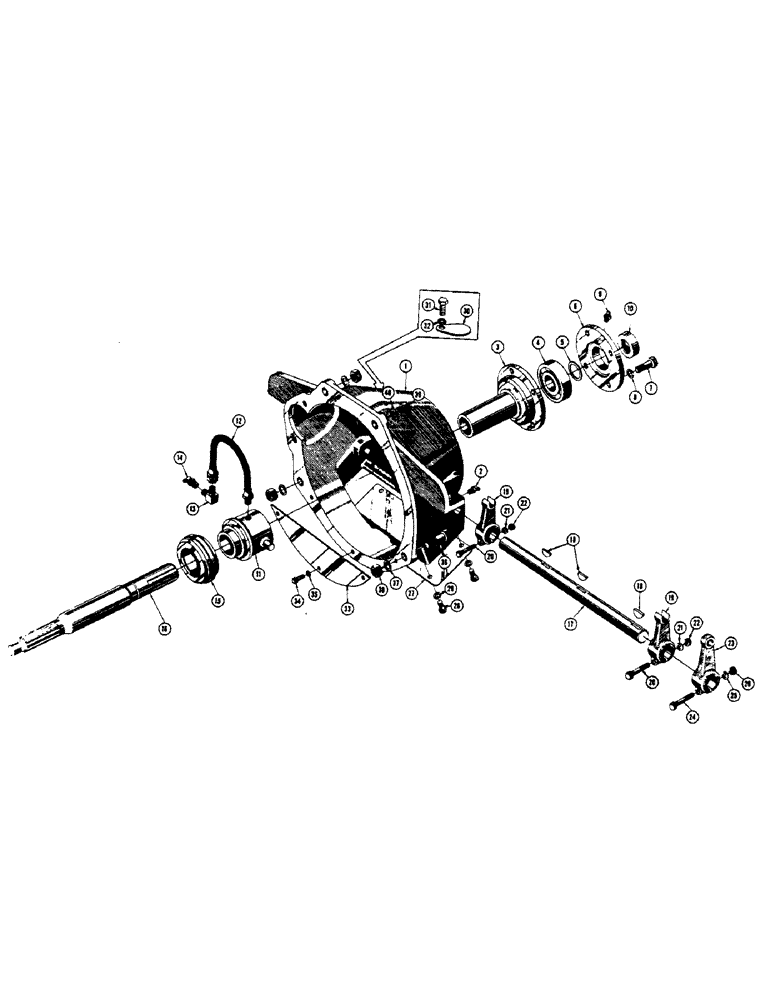

Запчасти Case 320 (052) - CLUTCH HOUSING (03) - TRANSMISSION

1

G1195

HOUSING - clutch (Up to serial no. 3005207)

1шт.

G1345

HOUSING - clutch (Serial no. 3005207 and after)

1шт.

2

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degrees (1/8" NPT)

2шт.

3

A29911

SPINDLE

SPINDLE - clutch throwout carrier

1шт.

4

40281

CARRIER

BEARING - bail, clutch shaft

1шт.

5

O6384AB

SNAP RING - clutch shaft

1шт.

6

30543

RETAINER

- spindle

1шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8 - 18 NC x 1-1/2

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

10

40600

OIL SEAL

SEAL - oil, clutch shaft (Outer)

1шт.

11

11043

CARRIER

- clutch throwout bearing

1шт.

12

51040-10

HOSE - lube, throwout bearing (1/4" I.D. x 7/16" O.D. x 12")

1шт.

13

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

x 1/4" JIC 90º, 7/16"-20, 45º Fl x 1/8" NPT

1шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degrees (1/8" NPT)

1шт.

15

40500

BEARING, BALL

BEARING - throwout

1шт.

16

G16581

SHAFT - clutch

1шт.

17

11038

SHAFT - clutch cross

1шт.

18

126-26

WOODRUFF KEY,#16, 3/16" x 1 1/8"

KEY - Woodruff (No. 16)

3шт.

19

11039

LEVER

- clutch carrier throwout, inner

2шт.

20

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

HHCS - 3/8 - 24 NF x 2

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

2шт.

23

11037

BELT, TRANSMISSION

LEVER - clutch throwout cross shaft, outer

1шт.

24

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

HHCS - 3/8 - 24 NF x 2

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

1шт.

27

G16582

COVER - clutch housing

1шт.

28

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

6шт.

29

92-5

LOCK WASHER,5/16"

6шт.

30

VT2176

X

COVER - timing hole

1шт.

31

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

32

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

33

G16603

COVER - flywheel opening, clutch housing

1шт.

34

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

35

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

36

VT3507

BOLT - body fit, lower clutch housing to block (5/8" x 2-3/4")

2шт.

37

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

38

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF)

2шт.

39

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF)

2шт.

40

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
