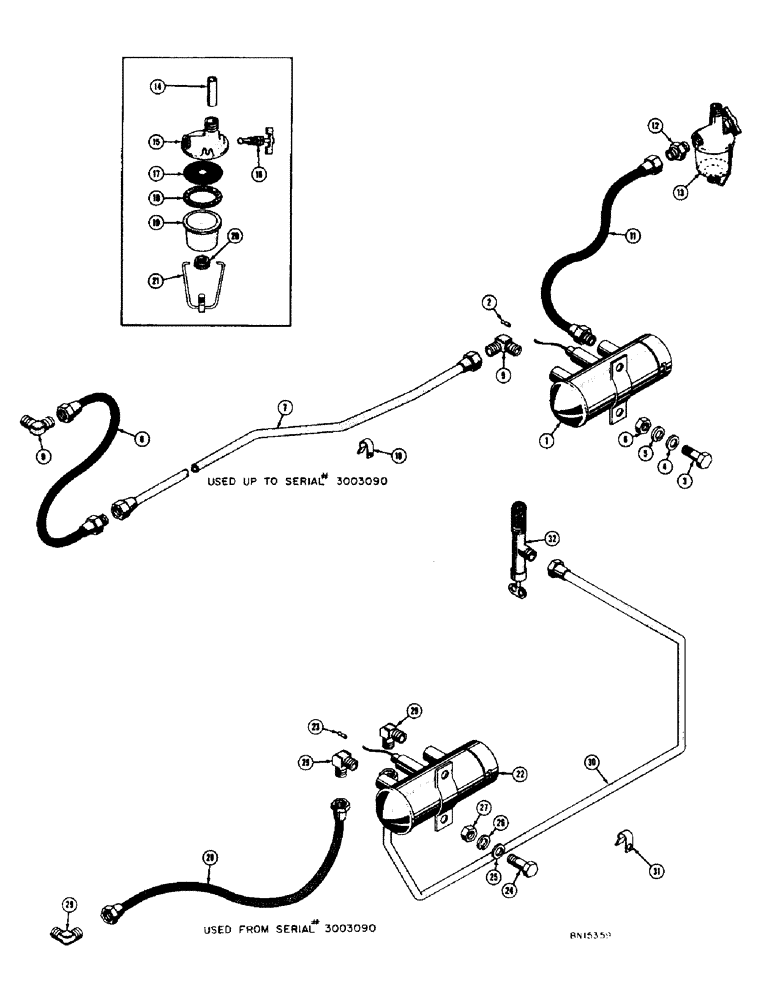

Запчасти Case 320 (024) - FUEL SYSTEM, ENGINE FUEL SYSTEM (UP TO SERIAL NUMBER 3003090) (02) - FUEL SYSTEM

1

36100

PUMP - fuel, electric (6 volt)

1шт.

2

32395

SEAL ASSY.

END - wire, bullet type

1шт.

3

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

HHCS - 1/4 - 28 NF x 3/4

2шт.

4

195-18

WASHER,1/4"

- plain (9/32" I.D. x 5/8" O.D. x 1/16" thick)

2шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

25-114

NUT,1/4"-28, G5

- hex. (1/4 - 28 NF)

2шт.

7

36102

TUBE - fuel line

1шт.

8

36140

SUPPORT

HOSE - fuel line tube to carburetor (1/4" I.D. x 9/16" O.D. x 12")

1шт.

9

222-765

ELBOW,90 Degree, 1/2"-20, 45 Degree Fl x 1/8" NPT

- 90 degree male, 1/8" NPT x 5/16" JIC

2шт.

10

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- tube

1шт.

11

36139

SUPPORT

HOSE - fuel strainer to fuel pump (1/4" I.D. x 9/16" O.D. x 18")

1шт.

12

222-806

HYD CONNECTOR,1/2"-20, 45 Degree Fl x 1/8" NPT

CONNECTOR - male, 1/8" NPT x 5/16" JIC

1шт.

13

33487

STRAINER ELEMENT

STRAINER - fuel

1шт.

14

NLS

NO LONGER SERVICED

TUBE - inlet, fuel strainer

1шт.

15

41932

COVER

HEAD - fuel strainer

1шт.

16

A11205

VALVE

- shut off

1шт.

17

A11211

FILTER SCREEN

SCREEN - strainer

1шт.

18

A11208

GASKET

- bowl

1шт.

19

A11213

BOWL - metal

1шт.

20

A11210

ADJUSTER

CUP AND NUT - bail

1шт.

21

A11212

BAIL

- bowl

1шт.

22

36100

PUMP - fuel, electric (6 volt) up to serial no. 3003851

1шт.

38873

PUMP - fuel, electric (12 volt) serial no. 3003851 and after

1шт.

23

32395

SEAL ASSY.

END - wire, bullet type, engine fuel system serial no. 3003851 and after

1шт.

24

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

HHCS - 1/4 - 28 NF x 3/4, engine fuel system serial no. 3003851 and after

2шт.

25

195-18

WASHER,1/4"

- plain (9/32" I.D. x 5/8" O.D. x 1/16" thick), engine fuel system serial no. 3003851 and after

2шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Engine fuel system S/N 3003851 and after 1/4"

2шт.

27

25-114

NUT,1/4"-28, G5

- hex. (1/4 - 28 NF), engine fuel system serial no. 3003851 and after

2шт.

28

38796

CHAIN

HOSE - fuel pump to carburetor (1/4" I.D. x 9/16" O.D. x 24"), engine fuel system serial no. 3003851 and after

1шт.

29

222-765

ELBOW,90 Degree, 1/2"-20, 45 Degree Fl x 1/8" NPT

- 90 degree male, 3/8" NPT x 5/8" JIC, engine fuel system serial no. 3003851 and after

3шт.

30

38795

HUB

TUBE - fuel line, engine fuel system serial no. 3003851 and after

1шт.

31

49832

CLAMP

- tube, engine fuel system serial no. 3003851 and after

1шт.

32

O1972AB1

VALVE - shut off, engine fuel system serial no. 3003851 and after

1шт.
