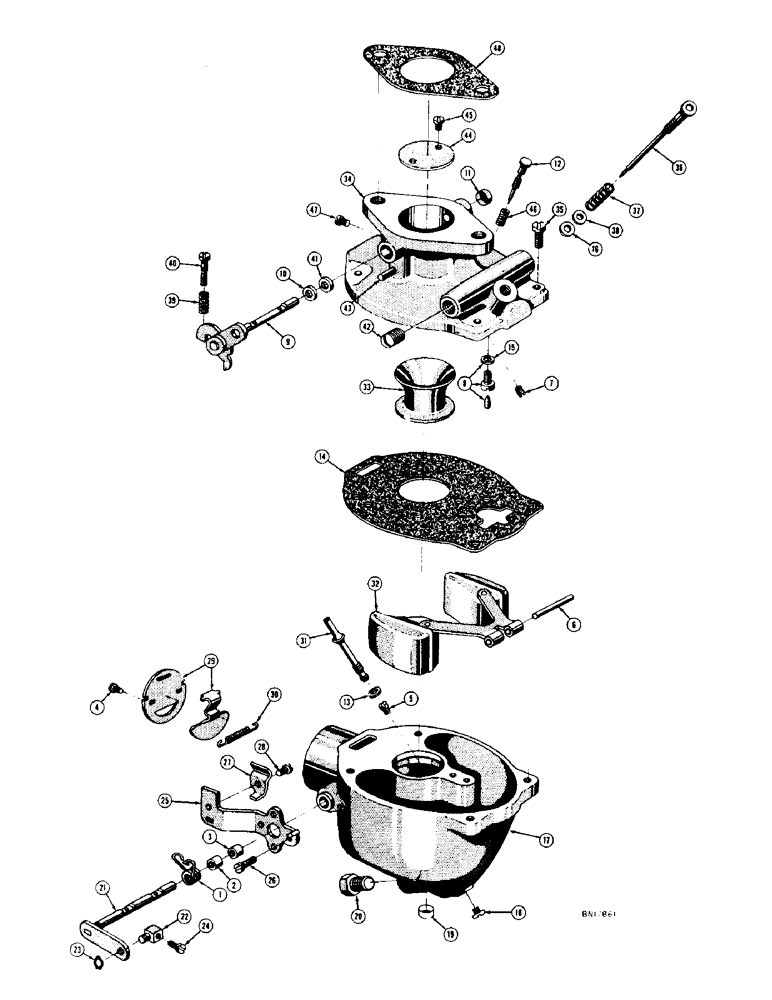

Запчасти Case 320 (020) - MARVEL-SCHEBLER CARBURETOR (02) - FUEL SYSTEM

G11160

CARBURETOR - Marvel-Schebler No. TSX-710 (Use G45779)

1шт.

The above carburetor is identified by the model number TSX-710 on the throttle body. If the model number TSX-804 appears on the throttle body, refer to section on G45779 carburetor, figure 22.

1шт.

286-1170

KIT - repair, carburetor

1шт.

1

24-247

SPRING - choke return

1шт.

2

55-243

RETAINER - choke shaft packing

1шт.

3

44-39

PACKING - choke shaft

1шт.

4

15-A91

SCREW - choke fly

2шт.

5

49-279

JET - power

1шт.

6

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

SHAFT - float lever

1шт.

7

49-101-L

JET - idle

1шт.

8

VTA698

X

FLOAT VALVE ASS'Y - matched parts

1шт.

9

13-839

SHAFT - throttle

1шт.

10

55-231

RETAINER - throttle shaft packing

1шт.

11

55-230

CUP - throttle shaft

1шт.

12

43-33

NEEDLE - idle adjusting

1шт.

VTA690

X

KIT - gasket, carburetor

1шт.

13

16-449

GASKET - main nozzle

1шт.

14

16-80

CARRIER

GASKET - throttle, Serial Range: body-bowl

1шт.

15

16-4

GASKET - float valve seat

1шт.

16

16-491

GASKET - high speed needle

1шт.

17

10-4114

BODY - carburetor

1шт.

18

15-409

SCREW - headless, nozzle hole plug (No. 8 - 32 NC)

1шт.

19

95-78

STRAINER - gasoline

1шт.

20

99-7

PLUG - bowl drain

1шт.

21

26-637

SHAFT - choke

1шт.

22

28-49

SWIVEL - choke

1шт.

23

82-16

PIN - cotter, choke swivel

1шт.

24

15-285

SCREW - slotted hex. head, choke swivel (No. 8 - 32 NC x 5/16")

1шт.

25

29-536

BRACKET - choke

1шт.

26

15-A93

SCREW - choke bracket

1шт.

27

29-81

CLIP - choke bracket

1шт.

28

15-A99

SCREW - fillister head, choke bracket clip (No. 8 - 32 NC x 5/16")

1шт.

29

27-550

FLY - choke

1шт.

30

24-A43

SPRING - choke fly flapper

1шт.

31

47-589

NOZZLE - main

1шт.

32

30-600

FLOAT AND LEVER - carburetor

1шт.

33

46-457

VENTURI

1шт.

34

227-1498

BODY - throttle

1шт.

35

15-A82

SCREW - fillister head, throttle body to bowl (No. 12 - 32 NC x 5/8")

4шт.

36

B51797

NEEDLE BEARING CAGE

NEEDLE - high speed (Replaces 43-627)

1шт.

37

24-A1

SPRING - high speed needle

1шт.

38

B51870

WASHER

- plain, high speed needle (Replaces 78-299)

1шт.

39

24-262

SPRING - throttle stop screw

1шт.

40

15-42

SCREW - fillister head, throttle stop (No. 8 - 32 NC x 3/4")

1шт.

41

44-63

PACKING - throttle shaft

1шт.

42

99-4

PLUG - throttle body

1шт.

43

62-167

PIN - throttle stop

1шт.

44

14-169

FLY - throttle

1шт.

45

15-A91

SCREW - throttle fly

1шт.

46

24-340

SPRING - idle adjusting

1шт.

47

80-171

PLUG - idle drilling

1шт.

48

O562AB

X

GASKET -, Serial Range: carburetor-manifold

1шт.
