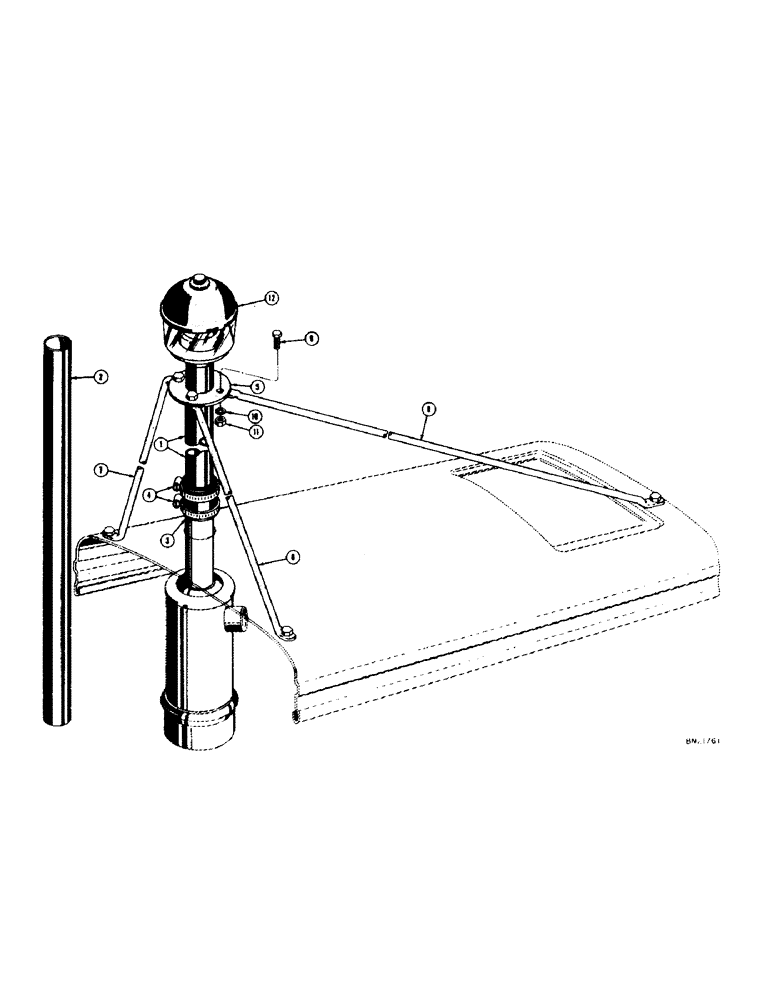

Запчасти Case 320 (040[1]) - AIR CLEANER STACK EXTENSIONS (OPTIONAL) (01) - ENGINE

D10217

KIT - stack extension, air cleaner (24") includes ref. no. 3 thru no. 11

1шт.

1

D20617

PIPE - extension, air cleaner stack (24")

1шт.

D10218

KIT - stack extension, air cleaner (48")

1шт.

2

D20616

PIPE - extension, air cleaner stack (48")

1шт.

3

31168

HOSE - air cleaner to extension pipe (1-3/4" I.D. x 2-1/8" O.D. x 2-1/2")

1шт.

4

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

adjustable #28, 1.31/2.25 Type F Worm

2шт.

5

D20618

RING - support, extension pipe

1шт.

6

D20620

BRACE - extension pipe, L.H. front

1шт.

7

D20621

BRACE - extension pipe, R.H. front

1шт.

8

D20619

BRACE - extension pipe, rear

1шт.

9

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

HHCS - 1/4 - 28 NF x 3/4

3шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

11

25-114

NUT,1/4"-28, G5

- hex. (1/4 - 28 NF)

3шт.

12

D20605

PRECLEANER

- air (Optional)

1шт.
