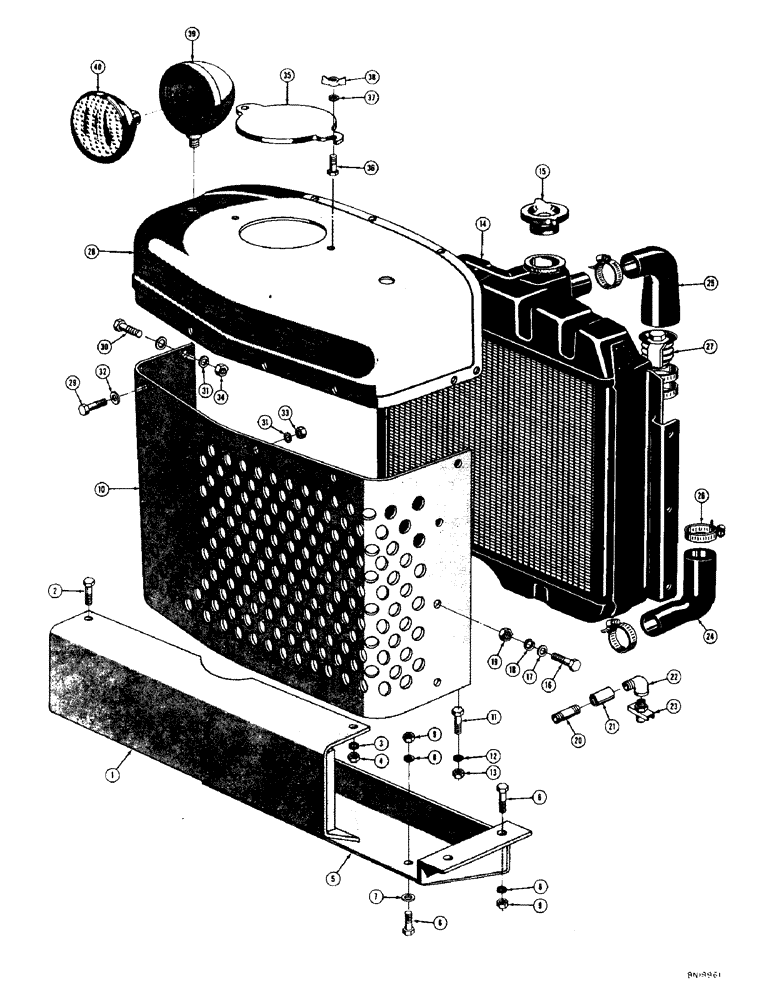

Запчасти Case 320 (038) - RADIATOR, THERMOSTAT, GRILLE CAP, AND GRILLE (01) - ENGINE

1

36719

HUB

BUMPER

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

3

92-8

LOCK WASHER,1/2"

2шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

2шт.

5

36979

SPACER

SUPPORT - bumper

1шт.

6

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

7

95-8

WASHER,1/2"

- standard wrot 1/2"

4шт.

8

92-8

LOCK WASHER,1/2"

8шт.

9

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

8шт.

10

36178

GRILLE - radiator

1шт.

11

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

4шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

4шт.

14

D24407

RADIATOR

1шт.

15

D21348

CAP - radiator (7 P.S.I.)

1шт.

16

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Radiator to grille Hex, 5/16"-24 x 7/8", G5, Full Thd

6шт.

17

195-103

WASHER,5/16"

- plain, plated (3/8" I.D. x 7/8" O.D. x 5/64" thick)

6шт.

18

92-5

LOCK WASHER,5/16"

6шт.

19

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

6шт.

20

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - pipe, 1/4" NPT

1шт.

21

221-327

X

COUPLING - pipe, 1/4" NPT

1шт.

22

221-412

ELBOW,90 Degree, 1/4"-27, NPT

- 90 degree street, 1/4" NPT

1шт.

23

217-92

COCK

DRAINCOCK - radiator

1шт.

24

35800

DISC,1.88" ID x 4.63", SAE 20R4

RADIATOR HOSE , Outlet 1.88" ID x 4.63", SAE 20R4

1шт.

25

NLS

NO LONGER SERVICED

RADIATOR HOSE 1.88" ID X 5.75", SAE 20R4, Inlet

1шт.

26

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

5шт.

27

G10235

THERMOSTAT

1шт.

28

30716

CAP - grille

1шт.

29

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

4шт.

30

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

31

92-6

LOCK WASHER,3/8"

6шт.

32

95-6

WASHER,3/8"

- standard wrot (3/8)

6шт.

33

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

4шт.

34

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex. jam (3/8-16 NC)

2шт.

35

10717

FITTING

COVER - access, radiator cap

1шт.

36

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Access cover Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

37

80681

LOCK WASHER,5/16"

5/16"

2шт.

38

129-419

WING NUT,5/16"-18

NUT - wing, plated (5/16 - 18 NC)

2шт.

39

10890

KIT

LIGHT - head, 6 volt (Optional)

2шт.

40

D21322

UNIT - sealed beam, 6 volt (Not shown)

1шт.

39

39056

LIGHT - head, 12 volt (Optional)

2шт.

40

D21323

UNIT - sealed beam, 12 volt (Not shown)

1шт.
