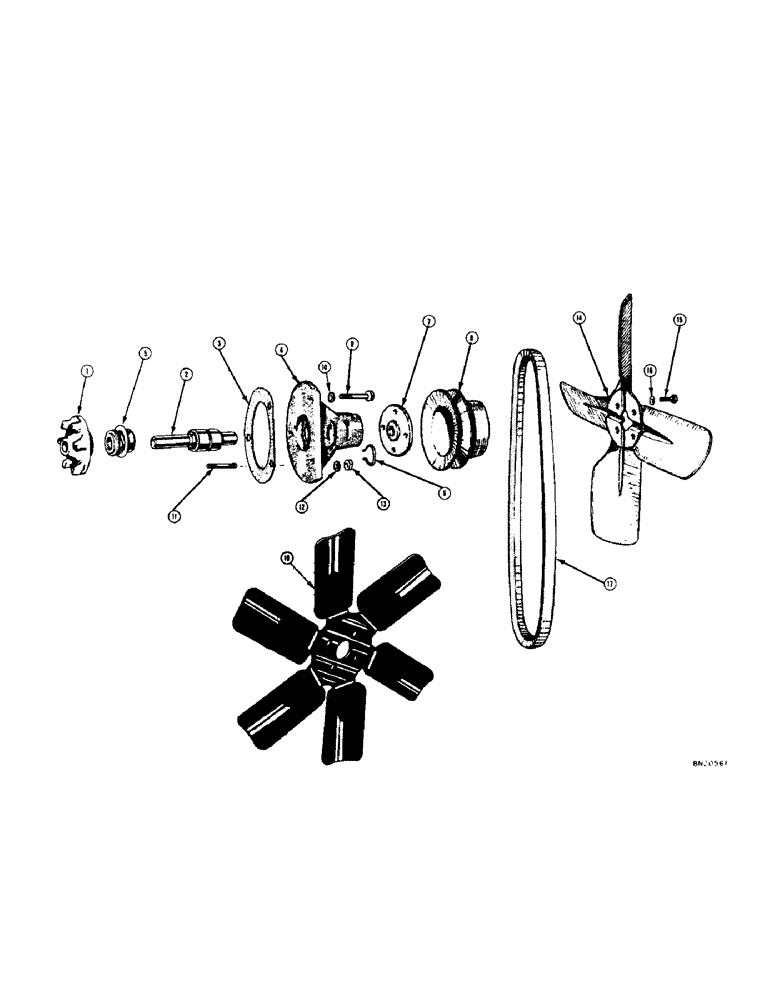

Запчасти Case 320 (016[1]) - WATER PUMP, FAN, FAN BELT, AND PULLEY (01) - ENGINE

G11956

WATER PUMP

PUMP - water, complete

1шт.

A48364

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

A48325

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

1

VT342

SPARE PART IMPELLER - water pump

1шт.

2

VTA904

X

SHAFT - drive (Includes bearings and slinger)

1шт.

3

G46875

GASKET

GASKET - pump, Serial Range: body-head

1шт.

4

VTA905

X

BODY - water pump

1шт.

5

O9799AB

SPARE PART SEAL - drive shaft

1шт.

6

VT4594

X

RING - retaining

1шт.

7

VT4533

SPARE PART HUB - fan

1шт.

8

VT4549

X

PULLEY - water pump

1шт.

9

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8 - 16 NC x 2-3/4

1шт.

10

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

11

VT4512

X

STUD - mounting, water pump

2шт.

12

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

13

VT4505

SPARE PART NUT - mounting stud

2шт.

14

G45244

FAN

FAN - suction

1шт.

15

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

16

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

4шт.

17

VT4886

X

"V" BELT - fan and generator drive (Used up to serial no. 3003851)

1шт.

G46222

BELT,0.88" W

Fan and Generator Drive, Serial No. 3003851 and After

1шт.

18

11290

FAN

FAN - pusher, optional

1шт.
