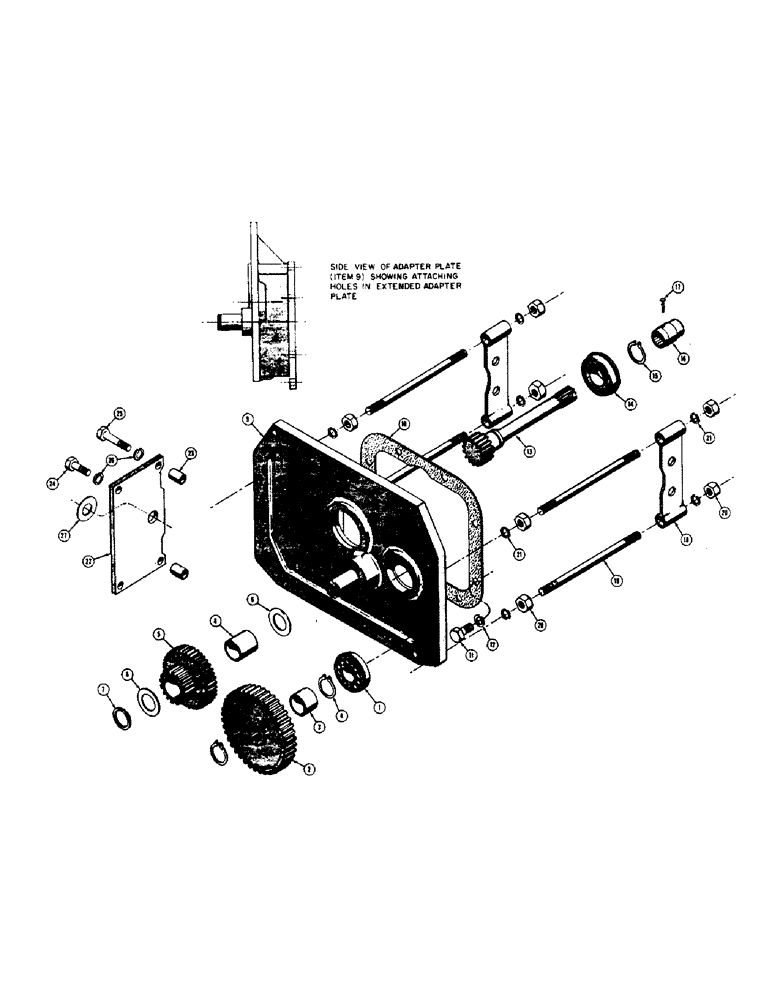

Запчасти Case 320 (232) - C-3 WINCH ADAPTER (WITH EXTENDED ADAPTER PLATE) (18) - ATTACHMENT ACCESSORIES
№
Артикул
Название
Примечание
Количество
1
38830
X
BEARING - ball, driven gear shaft (Carco P/N #306G)
1шт.
2
38829
GEAR - driven (Carco P/N 31038)
1шт.
3
38831
SPACER - driven gear (Carco P/N 31035)
1шт.
4
A7409
SNAP RING,#137, Ext
Ring, Snap, , driven gear (Carco P/N 5100-137) #137, Ext
2шт.
5
39244
GEAR - idler (Carco P/N 31039)
1шт.
6
38835
WASHER - idler gear (Carco P/N 31036)
2шт.
7
D26534
SNAP RING - idler gear (Carco P/N RS-137)
1шт.
ROLLER BEARING,Needle, 34.92mm ID x 41.29mm OD x 19.05mm W
BEARING - needle, idler gear (Torrington #B2212) Use 1 - D26535 bushing
2шт.
38833
YOKE
SPACER - needle bearings, use 1 - D26535 bushing (Carco P/N 31095)
1шт.
8
D26535
BUSHING - idler gear (Carco P/N 38820)
1шт.
9
38842
SCREW
PLATE - adapter (Carco P/N 38265)
1шт.
10
38824
BOLT
GASKET - adapter plate (Carco P/N 117-137)
1шт.
11
13-724
BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5
Hex, 7/16"-14 x 1 1/2, G5
11шт.
12
92-7
LOCK WASHER,7/16"
11шт.
13
38836
SHAFT - power take-off (Carco P/N 38267)
1шт.
14
38838
BEARING - ball, P.T.O. shaft (Carco P/N MRC#307SZZG)
1шт.
15
A7409
SNAP RING,#137, Ext
Ring, Snap, , P.T.O. shaft (Carco P/N 5100-137) #137, Ext
1шт.
16
38827
COUPLING - P.T.O. shaft (Carco P/N 25128)
1шт.
17
38828
RIVET - button head (3/16" x 1-5/8")
1шт.
18
38826
STUD
BRACKET - tie rod (Carco P/N 31335)
2шт.
19
D23213
ROD - tie (Heat treated) (Carco P/N 33433-5)
4шт.
20
25-118
NUT,1/2"-20, G5
- hex. (1/2 - 20 NF)
8шт.
21
92-8
LOCK WASHER,1/2"
8шт.
22
38721
PLATE
COVER - brake (Use D28903 and D28904) (Carco P/N 37343)
1шт.
D28903
COVER - brake (Carco P/N 38388)
1шт.
23
D28904
SPACER - brake cover (Carco P/N 38389)
2шт.
24
14-820
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
HHCS - 1/2 - 20 NF x 1-1/4
2шт.
25
14-836
BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5
HHCS - 1/2 x 20 NF x 2-1/4
2шт.
26
92-8
LOCK WASHER,1/2"
4шт.
27
195-53
WASHER,1" x 2" x .134"
- plain (1-1/16" I.D. x 2" O.D. x 1/8")
1шт.
Выбрано товаров: 30
