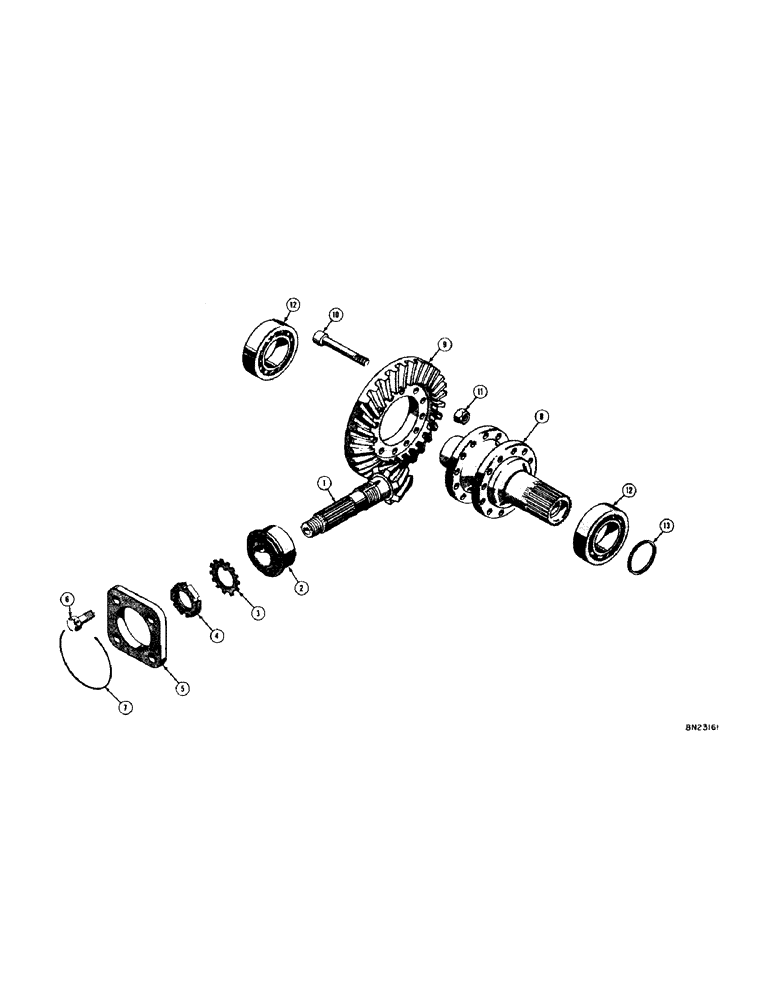

Запчасти Case 320 (228) - C-3 WINCH PINION AND BEVEL GEARS (18) - ATTACHMENT ACCESSORIES

1

38808

PINION - spiral drive (Carco P/N 36605)

1шт.

2

38729

BEARING - ball, pinion (Carco P/N ND#45208W)

1шт.

3

38730

X

WASHER - lock, special (Carco P/N W-08)

1шт.

4

38731

LUG

NUT - lock, special (Carco P/N N-08)

1шт.

5

38809

RETAINER - bearing (Carco P/N 30975)

1шт.

6

38810

HHCS - 1/2 - 20 NF x 1-1/4 (Drilled Head)

4шт.

7

38811

LOCK WIRE - 18" long x 16 ga.

1шт.

8

38803

CARRIER - bevel gear (Carco P/N 36609)

1шт.

9

38745

PLATE

GEAR - spiral bevel (Carco P/N 36604)

1шт.

10

38804

CAP SCREW - socket head, heat treated (Carco P/N 37983)

12шт.

11

38807

X

NUT - lock, hex. (1/2 - 20 NF x 3/4" across flats)

12шт.

12

38805

BEARING - ball, bevel gear carrier (Carco P/N MRC#212SZZ)

2шт.

13

38744

SPACER - bearing carrier (Carco P/N 31151)

1шт.
