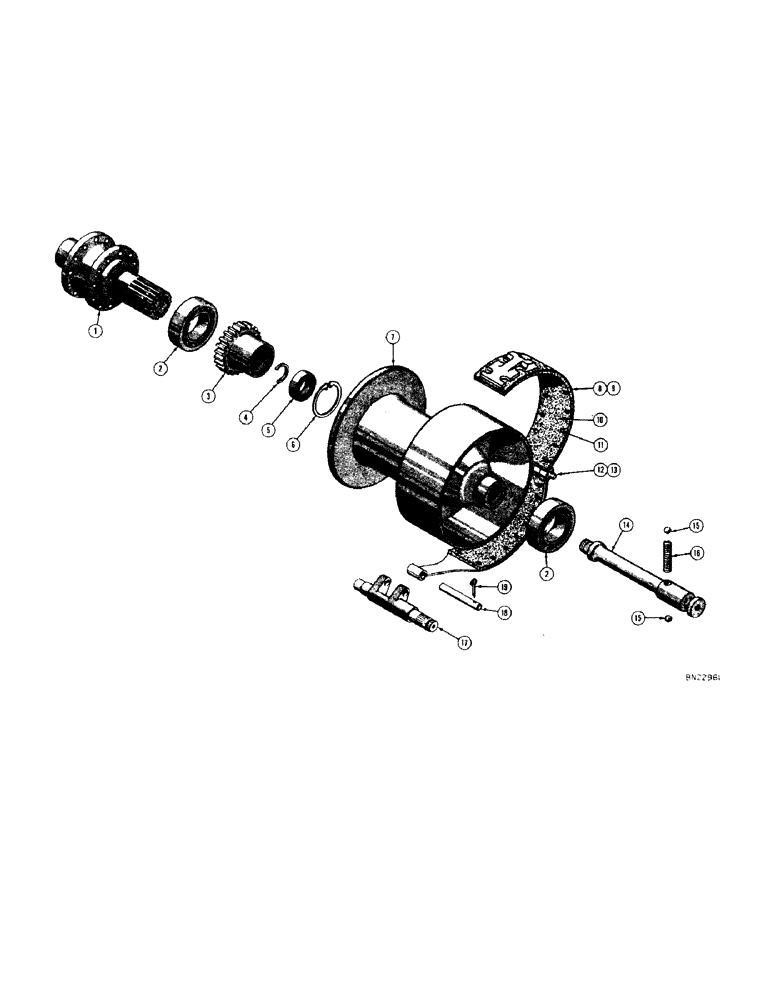

Запчасти Case 320 (228[1]) - C-3 WINCH CABLE DRUM AND BRAKE (18) - ATTACHMENT ACCESSORIES

1

38803

CARRIER - bevel gear (Carco P/N 36609)

1шт.

2

38805

BEARING - ball, cable drum (Carco P/N MRC#212SZZ)

2шт.

3

39246

GEAR - clutch (Carco P/N 33906)

1шт.

4

38743

GEAR

SNAP RING - clutch shaft (Carco P/N XSO-250)

1шт.

5

38742

BALL BEARING

- ball, clutch shaft (Carco P/N Fafnir #9107PP)

1шт.

6

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , clutch (Carco P/N 5000-244) 2.44", Int, #244

1шт.

7

39245

DRUM - cable (Carco P/N 38276)

1шт.

8

38728

PLATE

BAND ASS'Y brake (Carco P/N 37335)

1шт.

9

NSS

NOT SOLD SEPARAT

SHOE - brake

2шт.

D28908

BAND - brake, kit

1шт.

10

NSS

NOT SOLD SEPARAT

BAND - lining (1/4" x 3" x 2' 9-1/4")

1шт.

11

D28910

RIVET - tubular flat hd. (3/16" x 5/16")

34шт.

12

D28911

PIN - pivot, brake shoe (Carco P/N 37334)

1шт.

13

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

14

38736

SHAFT - clutch (Carco P/N 36599)

1шт.

15

VT4913

X

BALL - steel, detent (3/8" steel)

2шт.

16

38738

SPRING - detent ball (Carco P/N 28698-9)

1шт.

17

38727

CRANK - brake (Carco P/N 37327)

1шт.

18

38726

PIN - pivot, band to crank (Carco P/N 36595)

1шт.

19

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.
