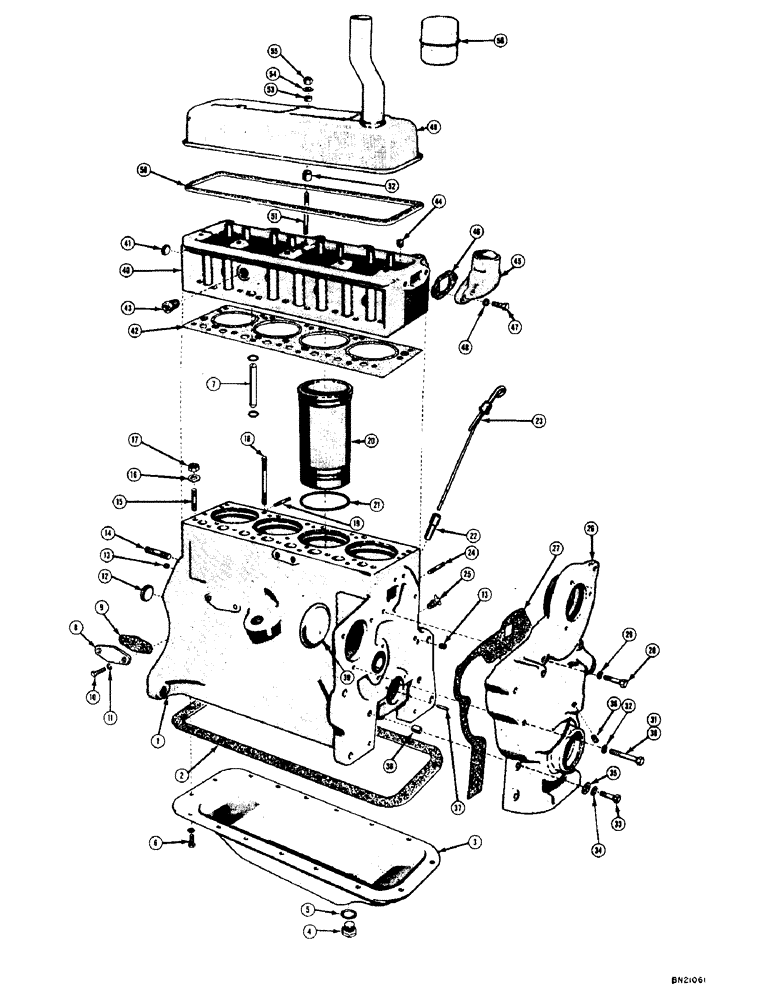

Запчасти Case 320 (008) - ENGINE BLOCK AND RELATED PARTS (01) - ENGINE

G12449M

ENGINE - gasoline, complete (6 volt)

1шт.

G12451M

ENGINE - gasoline, complete (12 volt)

1шт.

1

G11004

BLOCK - cylinder (Includes main bearing caps, place bolts, camshaft bushings, and studs)

1шт.

2

G10020

X

GASKET - oil pan

1шт.

3

G11868

PAN - oil

1шт.

4

VT4521

X

PLUG - drain

1шт.

5

VT4520

X

GASKET - drain plug

1шт.

6

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

HHCS AND LOCKWASHER - oil pan (5/16 - 18 NC x 3/4)

16шт.

7

G11331

TUBE - push rod 0.687" OD x 3.281" L

8шт.

8

VT3253

PAD - oil filter opening

1шт.

9

VT3229

X

GASKET - oil filter pad

1шт.

10

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

VT3398

X

PLUG - Hubbard, rear crankshaft bearing (2-1/8" dia.)

1шт.

13

VT3395

X

PLUG - pipe, oil gallery (1/8" NPT socket head)

2шт.

14

VT3531

X

STUD - block to clutch housing (5/8" x 3")

2шт.

15

VT4503

X

STUD - cylinder head (1/2" x 2")

9шт.

16

VT4529

WASHER

- cylinder head studs

14шт.

17

VT3361

X

NUT - cylinder head to block studs

14шт.

18

VT4515

X

STUD - cylinder head (1/2" x 5-13/16")

5шт.

19

VT4502

STUD - engine block to cable clip (3/8" x 1-1/2")

2шт.

20

G1061

SLEEVE

- cylinder (3-3/8" bore)

4шт.

21

VT3375

X

SEAL - "O" ring, cylinder sleeve

8шт.

22

VT3369

SUPPORT - oil gauge rod

1шт.

23

G37037

DIPSTICK

- oil level

1шт.

G46892

OIL SEAL

- rubber, dipstick (Not shown)

1шт.

24

VT4508

STUD - generator mounting bracket (3/8" - 16 NC x 1-1/4")

2шт.

25

VT2784

X

VALVE - water drain, engine block

1шт.

26

VT334

COVER - timing gear

1шт.

27

VT3248

X

GASKET - timing gear cover

1шт.

28

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

29

92-6

LOCK WASHER,3/8"

1шт.

30

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

31

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

3шт.

32

92-6

LOCK WASHER,3/8"

4шт.

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC) Not shown

3шт.

33

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

5шт.

34

92-6

LOCK WASHER,3/8"

5шт.

35

V20214

WASHER

- cover bolt (13-32" I.D. x 3/4" O.D. x 1/16" thick)

2шт.

36

VT3352

X

PLUG - pipe, 1/8" NPT slotted

1шт.

37

VT3364

X

PIN - crankshaft thrust washer (5/32" dia. x 1/2")

2шт.

38

VT4535

X

RING - dowel, timing gear cover, Serial Range: -block

2шт.

39

VT3243

X

COVER - magneto drive hole

1шт.

40

G11909

HEAD - cylinder (Includes guides, tubes, and safety plugs)

1шт.

41

VT5058

PLUG - Hubbard, safety freeze (1-1/8" dia.)

1шт.

42

G10672

CYLINDER HEAD GASKET

- cylinder head

1шт.

43

D26015

FITTING

ADAPTER - temperature gauge heat bulb

1шт.

44

VT3383

X

PLUG - heat fuse

1шт.

45

G11087

ELBOW - water outlet (Includes 1-3/8" NPT square head pipe plug)

1шт.

46

VT3228

X

GASKET - water outlet elbow

1шт.

47

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

48

92-6

LOCK WASHER,3/8"

2шт.

49

G11156

COVER - valve

1шт.

50

VT3246

GASKET - valve cover

1шт.

51

VT4511

STUD - cylinder head cover (3/8" x 5")

1шт.

52

VT3142

X

SPACER - cylinder head cover

2шт.

53

G11270

SPACER

- valve cover studs

2шт.

54

VT3291

X

WASHER - valve cover stud (13/32" I.D. x 1" O.D. x 1/8" thick)

3шт.

55

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

3шт.

56

VT3545

X

CAP - oil filler and breather

1шт.
